Eaton 9130 - Page 78

Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
IEC C14-10A
Input Connector
(8) IEC 320-10A
Output Receptables
(1) IEC 320-16A
Output Receptable
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 72

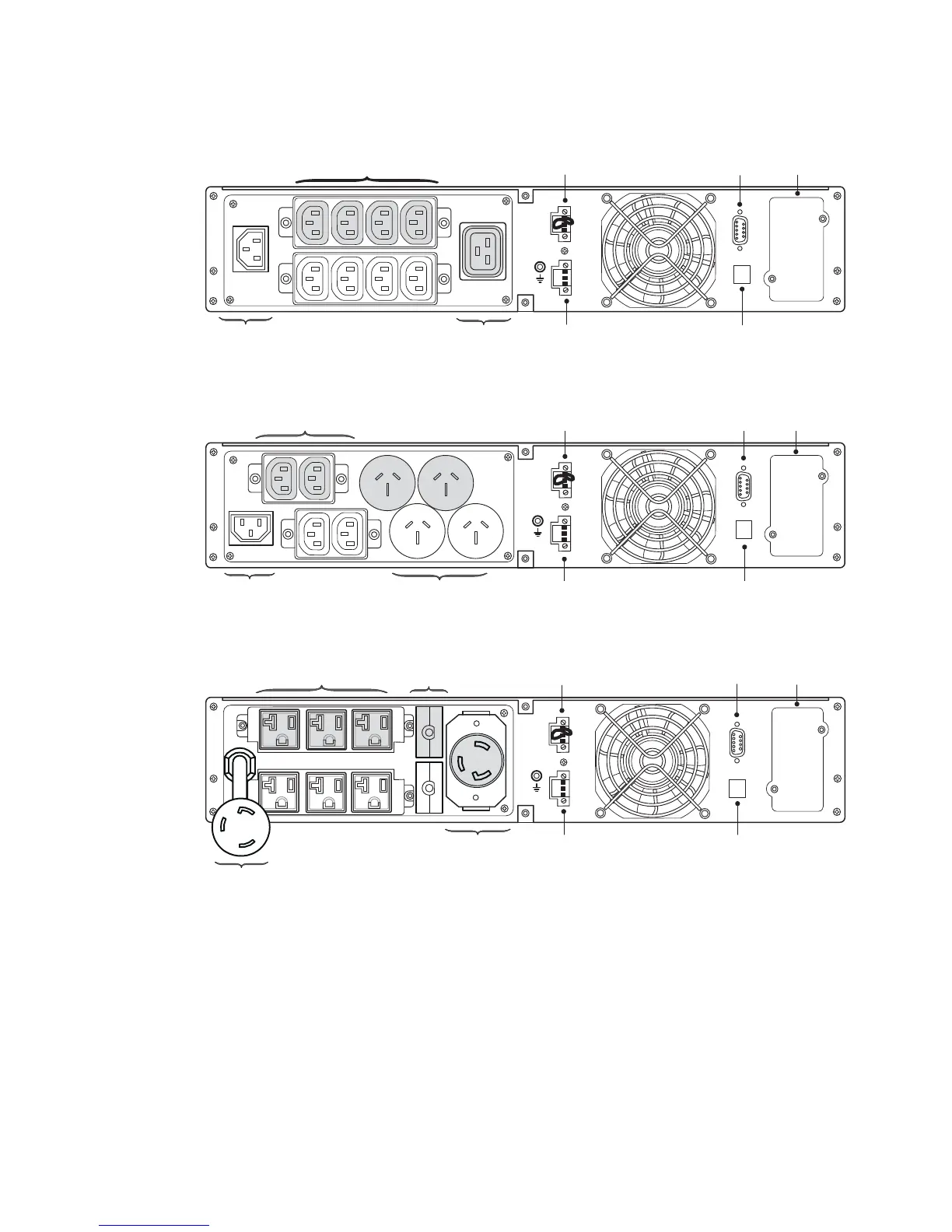

Figure 37. Models PW9130i2000R-XL2U, PW9130G2000R-XL2UEU
Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
IEC C14-10A
Input Connector
(4) C13
Output Receptables
(4) Aust 10A
Output Receptables
Figure 38. Model PW9130G2000R-XL2UAU
Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
L5-30P
Input Cord
(2) 20A
AC Breakers
(6) 5-20T
Output Receptables
(1) L5-30R
Output Receptable
Figure 39. Models PW9130L2500R-XL2U, PW9130L3000R-XL2U, PW9130L3000R-XL2US
