Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
IEC C20-16A
Input Connector
(1) L6-20R
Output Receptable
(1) L6-30R
Output Receptable
(2) 6-20R
Output Receptables
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 73

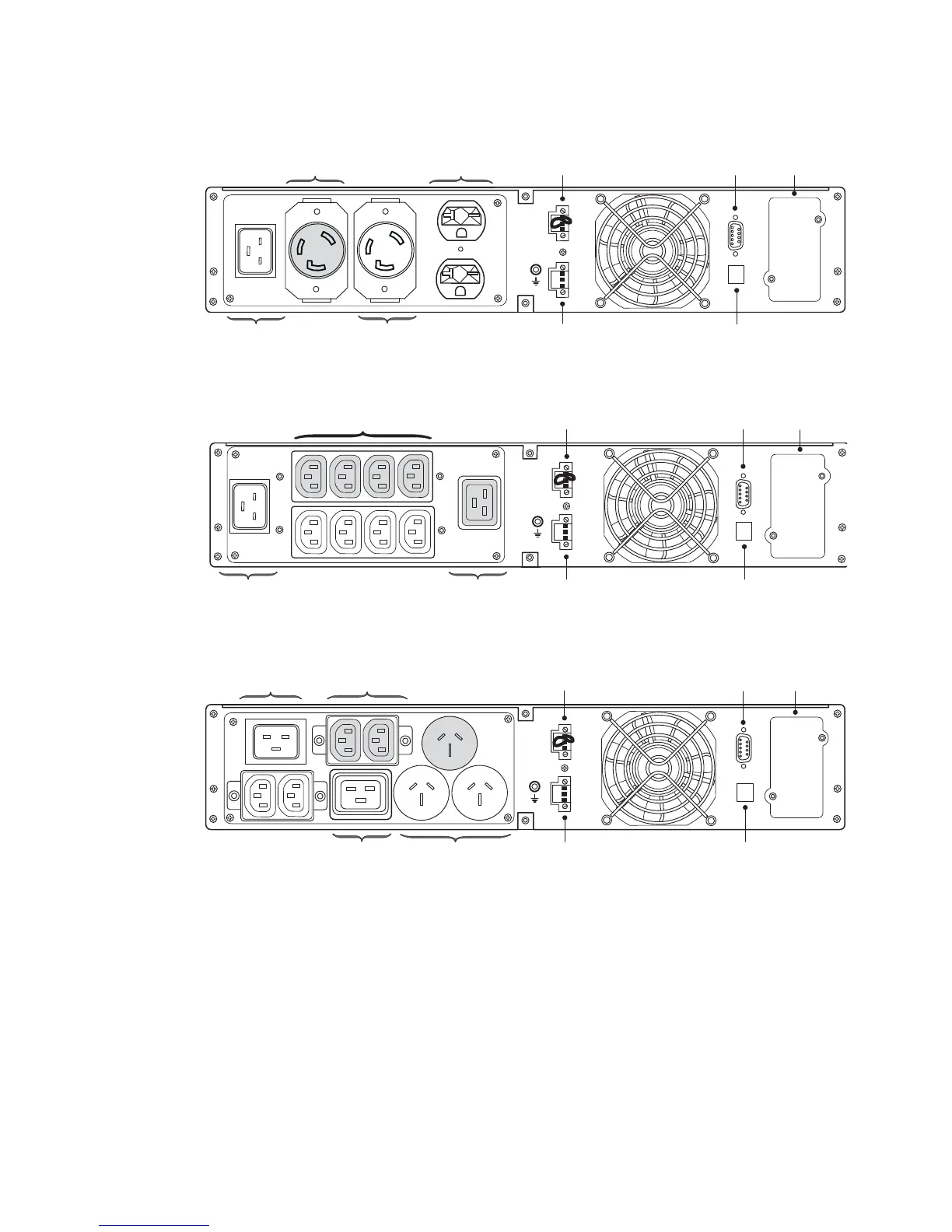

Figure 40. Models PW9130G2500R-XL2U, PW9130G3000R-XL2U
Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
IEC C20-16A
Input Connector
(8) IEC 320-10A
Output Receptables
(1) IEC 320-16A
Output Receptable
Figure 41. Models PW9130G2500R-XL2UEU, PW9130i3000R-XL2U, PW9130i3000R-XL2US PW9130G3000R-XL2UEU
Communication
Bay
REPO
Port
RS-232
Port
Relay
Port
USB
Port
IEC C20-16A
Input Connector
(4) C13
Output Receptables
(1) C19
Output Receptable
(3) Aust 10A
Output Receptables
Figure 42. Model PW9130G3000R-XL2UAU
