Eaton 9130 - Page 85

Communication
Bay
USB
Port
RS-232
Port
REPO
Port
Relay
Port
IEC C14-10A
Input Connector
(6) IEC 320-10A
Output Receptables
EBM
Connection
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 79

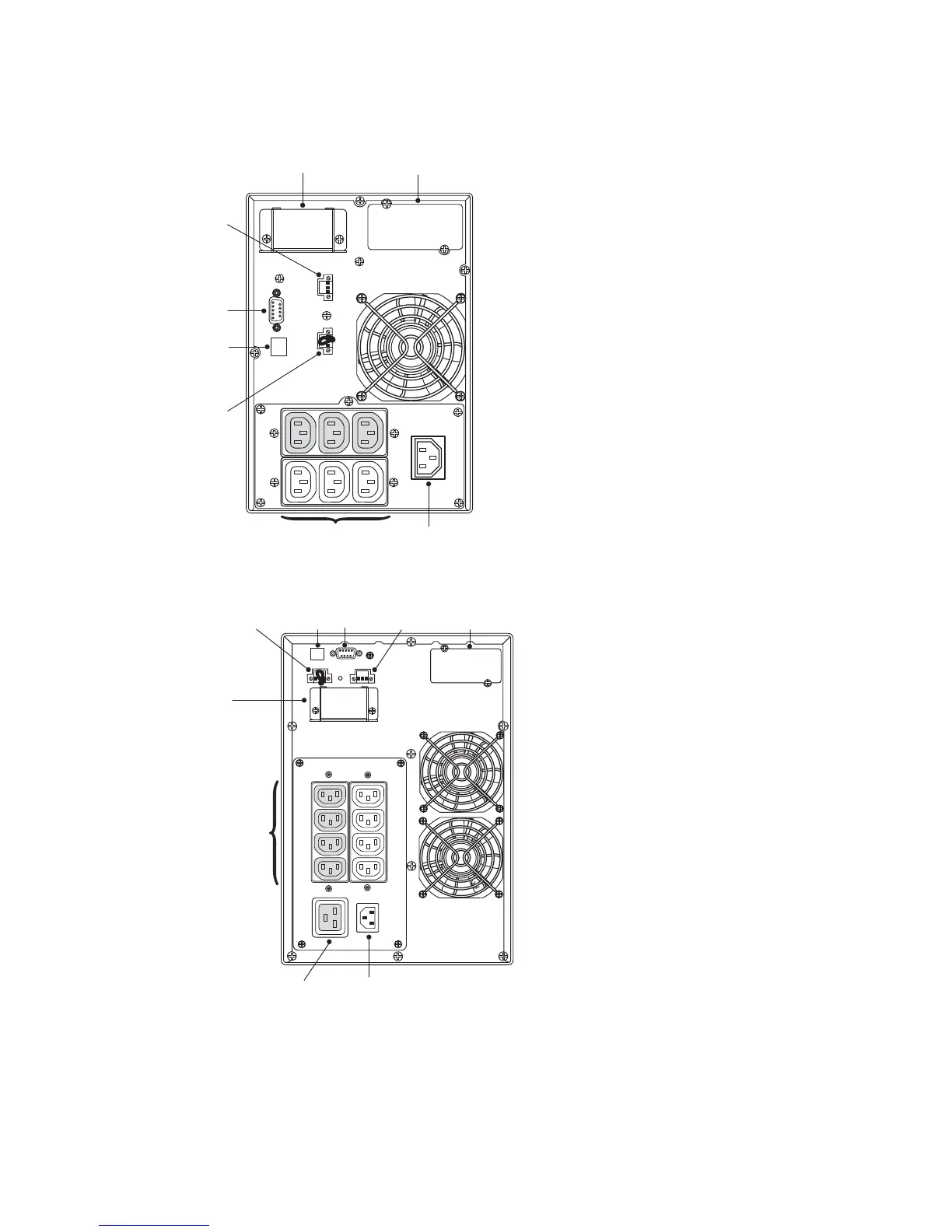

Figure 53. Model PW9130G1000T-XLEU and PW9130i1000T-XL
RS-232
Port
USB
Port
Communication
Bay
REPO
Port
Relay
Port
IEC C14-10A
Input Connector
(1) IEC 320-16A
Output Receptable
(8) IEC
320-10A
Output
Receptables
EBM
Connection
Figure 54. Models PW9130G2000T-XLEU and PW9130i2000T-XL
