Eaton 9PX 5000i RT3U Netpack User Manual

Page 13
614-09354-01_EN
ENGLISH

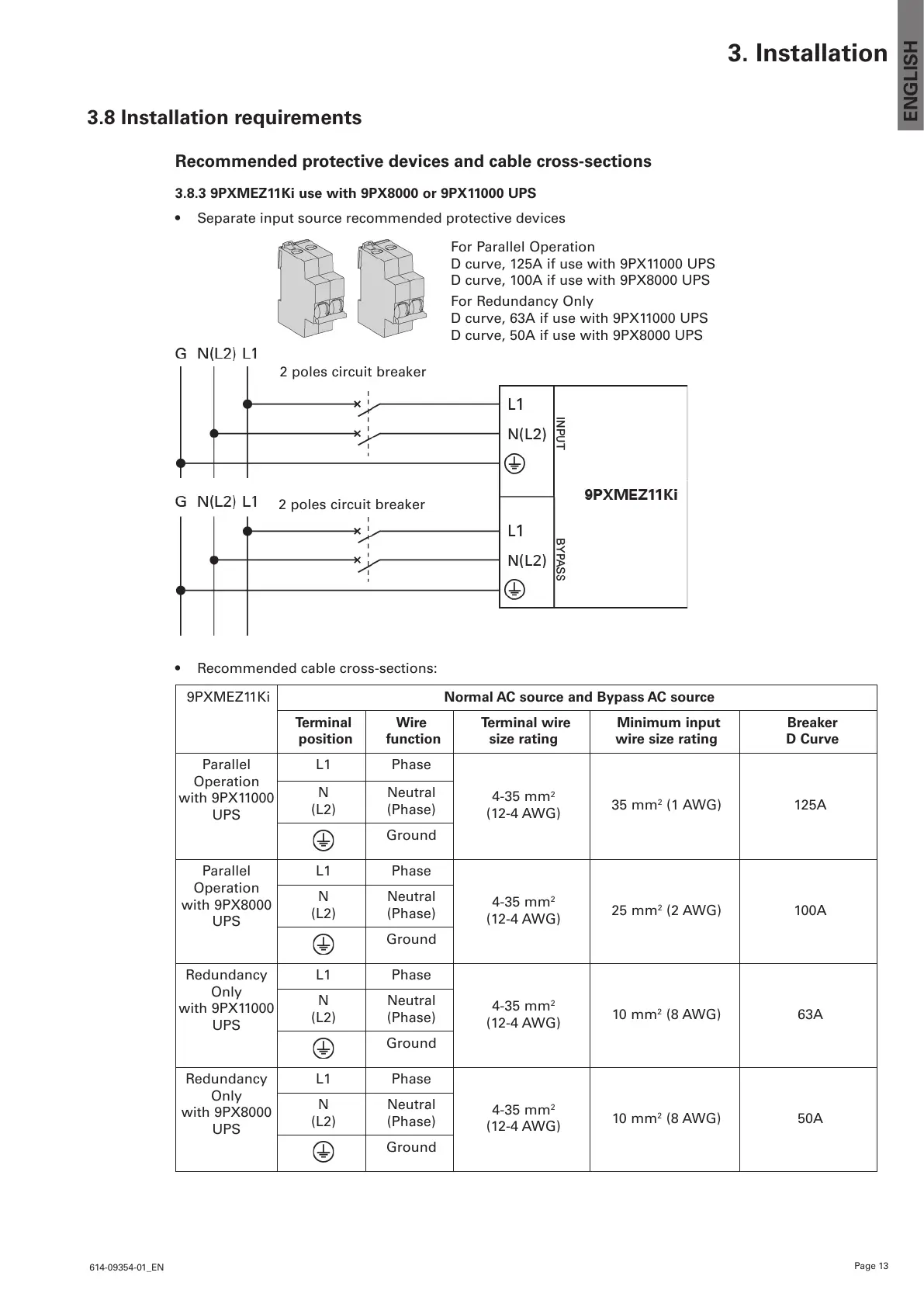

3. Installation
3.8 Installation requirements
Recommended protective devices and cable cross-sections
3.8.3 9PXMEZ11Ki use with 9PX8000 or 9PX11000 UPS
• Separate input source recommended protective devices
For Parallel Operation
D curve, 125A if use with 9PX11000 UPS
D curve, 100A if use with 9PX8000 UPS
For Redundancy Only
D curve, 63A if use with 9PX11000 UPS
D curve, 50A if use with 9PX8000 UPS
2 poles circuit breaker
2 poles circuit breaker
• Recommended cable cross-sections:
9PXMEZ11Ki Normal AC source and Bypass AC source
Terminal
position
Wire
function
Terminal wire
size rating
Minimum input
wire size rating
Breaker
D Curve
Parallel
Operation
with 9PX11000
UPS
L1 Phase
4-35 mm
2
(12-4 AWG)
35 mm
2
(1 AWG) 125A
N
(L2)
Neutral
(Phase)
Ground
Parallel
Operation
with 9PX8000
UPS
L1 Phase
4-35 mm
2
(12-4 AWG)
25 mm
2
(2 AWG) 100A
N
(L2)
Neutral
(Phase)
Ground
Redundancy
Only
with 9PX11000
UPS
L1 Phase
4-35 mm
2
(12-4 AWG)
10 mm
2
(8 AWG) 63A
N
(L2)
Neutral
(Phase)
Ground
Redundancy
Only
with 9PX8000
UPS
L1 Phase
4-35 mm
2
(12-4 AWG)
10 mm
2
(8 AWG) 50A
N
(L2)
Neutral
(Phase)
Ground

Eaton 9PX 5000i RT3U Netpack Specifications

General

Power Rating	5000 VA / 4500 W
Rack Height	3U
Output Frequency	50/60 Hz
Output Power Factor	0.9
Topology	Double conversion online
Input Frequency	40-70 Hz
Runtime at Half Load	11 minutes
Display	LCD
Form Factor	Rack/Tower
Output Voltage	200/208/220/230/240V
Output Connections	IEC C13, IEC C19
Network Management	Yes, via Network Card
Battery Type	Sealed Lead Acid
Efficiency	Up to 94%
Communication	USB, Serial, Relay
Batteries	Internal
Input Voltage Range	176-276 VAC without derating (100-300 VAC with derating)
