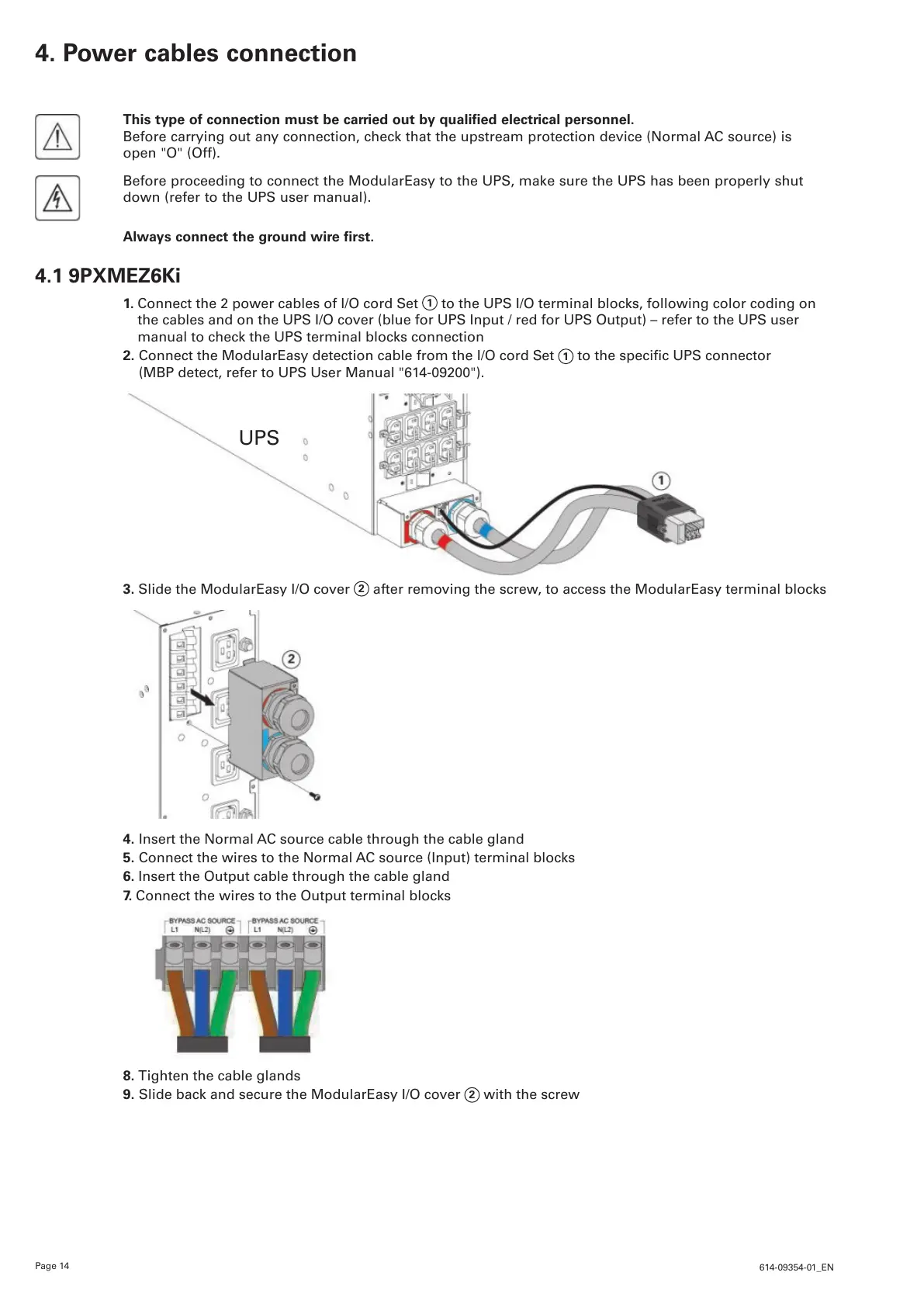

This type of connection must be carried out by qualified electrical personnel.
Before carrying out any connection, check that the upstream protection device (Normal AC source) is
open "O" (Off).
Before proceeding to connect the ModularEasy to the UPS, make sure the UPS has been properly shut
down (refer to the UPS user manual).
Always connect the ground wire first.
4.1 9PXMEZ6Ki
1. Connect the 2 power cables of I/O cord Set
1
to the UPS I/O terminal blocks, following color coding on
the cables and on the UPS I/O cover (blue for UPS Input / red for UPS Output) – refer to the UPS user
manual to check the UPS terminal blocks connection
2. Connect the ModularEasy detection cable from the I/O cord Set
1
tothespecicUPSconnector
(MBP detect, refer to UPS User Manual "614-09200").
3. Slide the ModularEasy I/O cover
2
after removing the screw, to access the ModularEasy terminal blocks
4. Insert the Normal AC source cable through the cable gland
5. Connect the wires to the Normal AC source (Input) terminal blocks
6. Insert the Output cable through the cable gland
7. Connect the wires to the Output terminal blocks
8. Tighten the cable glands
9. Slide back and secure the ModularEasy I/O cover
2
with the screw
4. Power cables connection
UPS

Eaton 9PX 5000i RT3U Netpack Specifications

General

Power Rating	5000 VA / 4500 W
Rack Height	3U
Output Frequency	50/60 Hz
Output Power Factor	0.9
Topology	Double conversion online
Input Frequency	40-70 Hz
Runtime at Half Load	11 minutes
Display	LCD
Form Factor	Rack/Tower
Output Voltage	200/208/220/230/240V
Output Connections	IEC C13, IEC C19
Network Management	Yes, via Network Card
Battery Type	Sealed Lead Acid
Efficiency	Up to 94%
Communication	USB, Serial, Relay
Batteries	Internal
Input Voltage Range	176-276 VAC without derating (100-300 VAC with derating)
