User manual SEFELEC 5x Series 100 v1.06
For each phase (1 to 7) it is possible to define an AC or DC voltage, a Rise, Hold or Fall time as
well as the cut-out modes and associated thresholds.

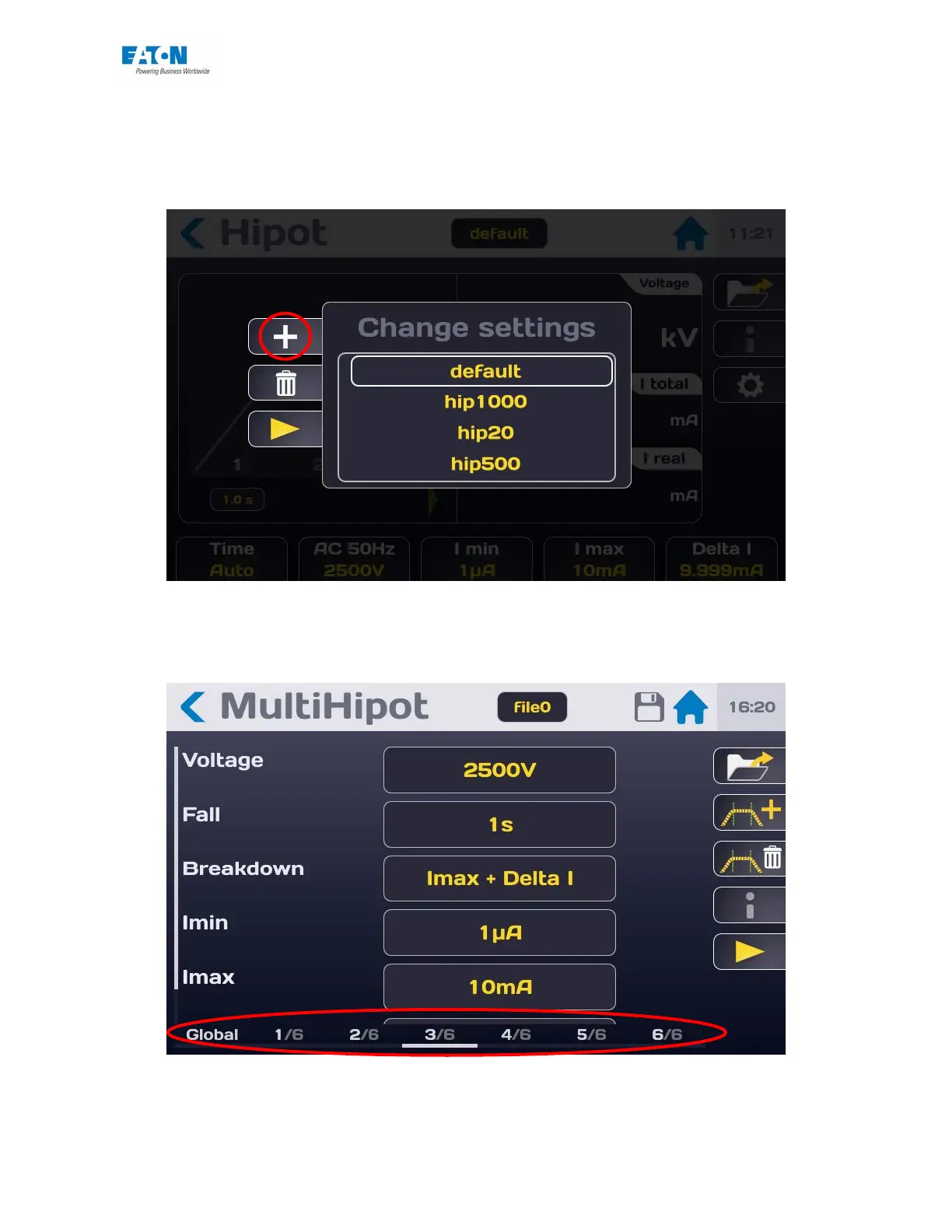

Create a new test file by pressing the folder icon to obtain the following screen:
Press the (+) icon to create a new file (file name example: file1) and then press the key with the
yellow arrow. The file offers 7 test phases that it is possible to change by pressing the gear
wheel icon to obtain the following screen:
