User manual SEFELEC 5x Series 15 v1.06
PRESENTATION OF THE DEVICE
BASIC VERSION
The SEFELEC 5x range is a range of products for performing dielectric tests and ground conti-
nuity measurements very simply and in a comprehensively.
The SEFELEC 56-H and SEFELEC 506-H are used to perform tests of dielectric strength at
powers of 50 VA and 500 VA respectively. The SEFELEC 56-D and the SEFELEC 506-D are
combinations of a 50 VA or 500 VA dielectric strength tester and a Megohmmeter. The SE-
FELEC 56-S and SEFELEC 506-S combine the functions of insulation measurement, dielectric
strength testing and ground continuity measurement in a single device.
The SEFELEC 5x range devices allow the user to do the tests and measurements referred to
above on all types of insulation, such as resin, porcelain, oil or plastic, as well as on finished
products such as capacitors, transformers, switches, cables, connectors or electrical devices
connected to the mains or powered by batteries. They allow the user to make ground continuity
measurements in compliance with most of the existing standards in the fields of measurement
devices, medical equipment, office equipment, machinery, etc.

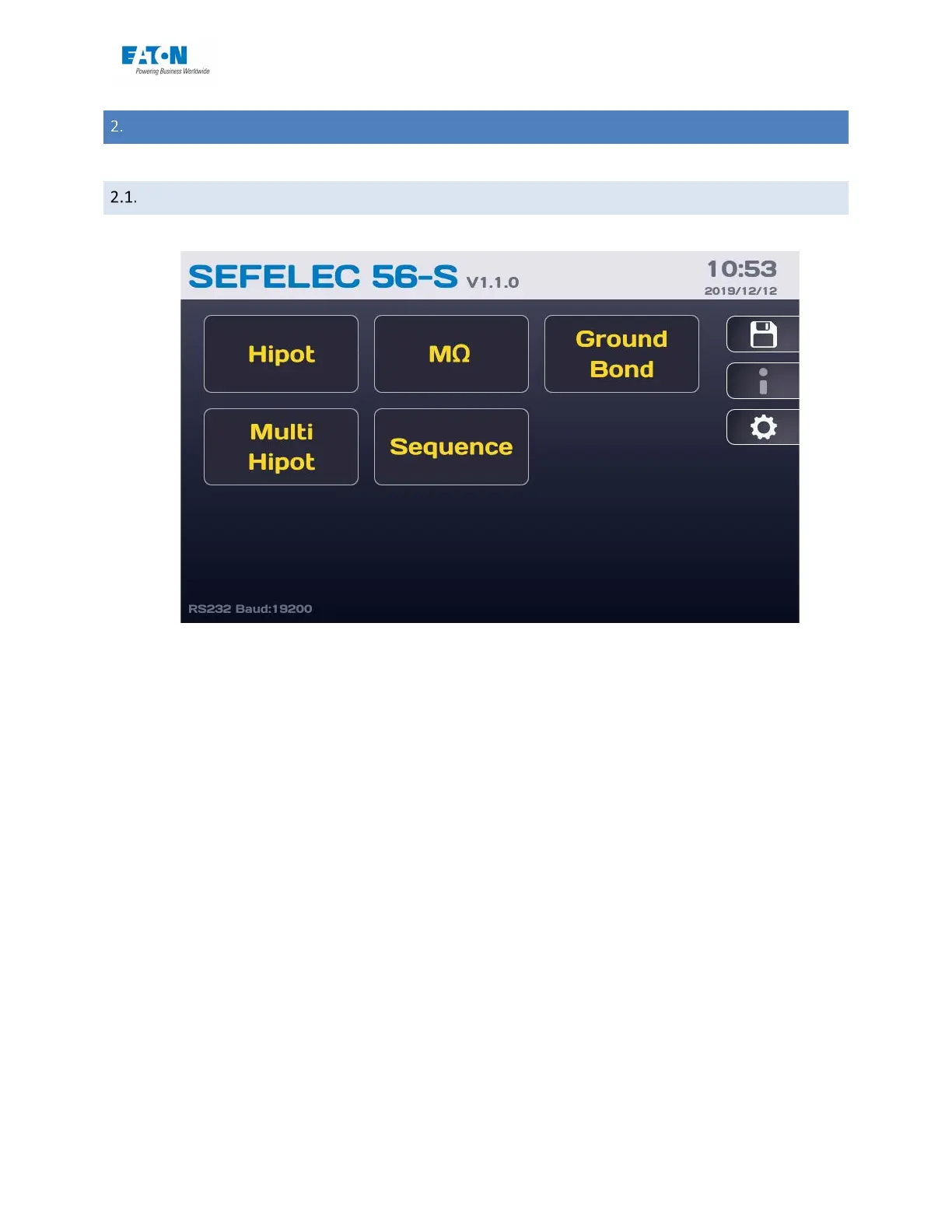

The SEFELEC range devices include a high-resolution graphic colour display with a touch
screen for easier use. A single output for dielectric strength tests and insulation resistance
measurements facilitates connection to the elements to be tested. Messages in colour indicate
the outcome of the tests visually, simply and without any possibility of error.
