User manual SEFELEC 5x Series 42 v1.06

DISPLAY SETTINGS

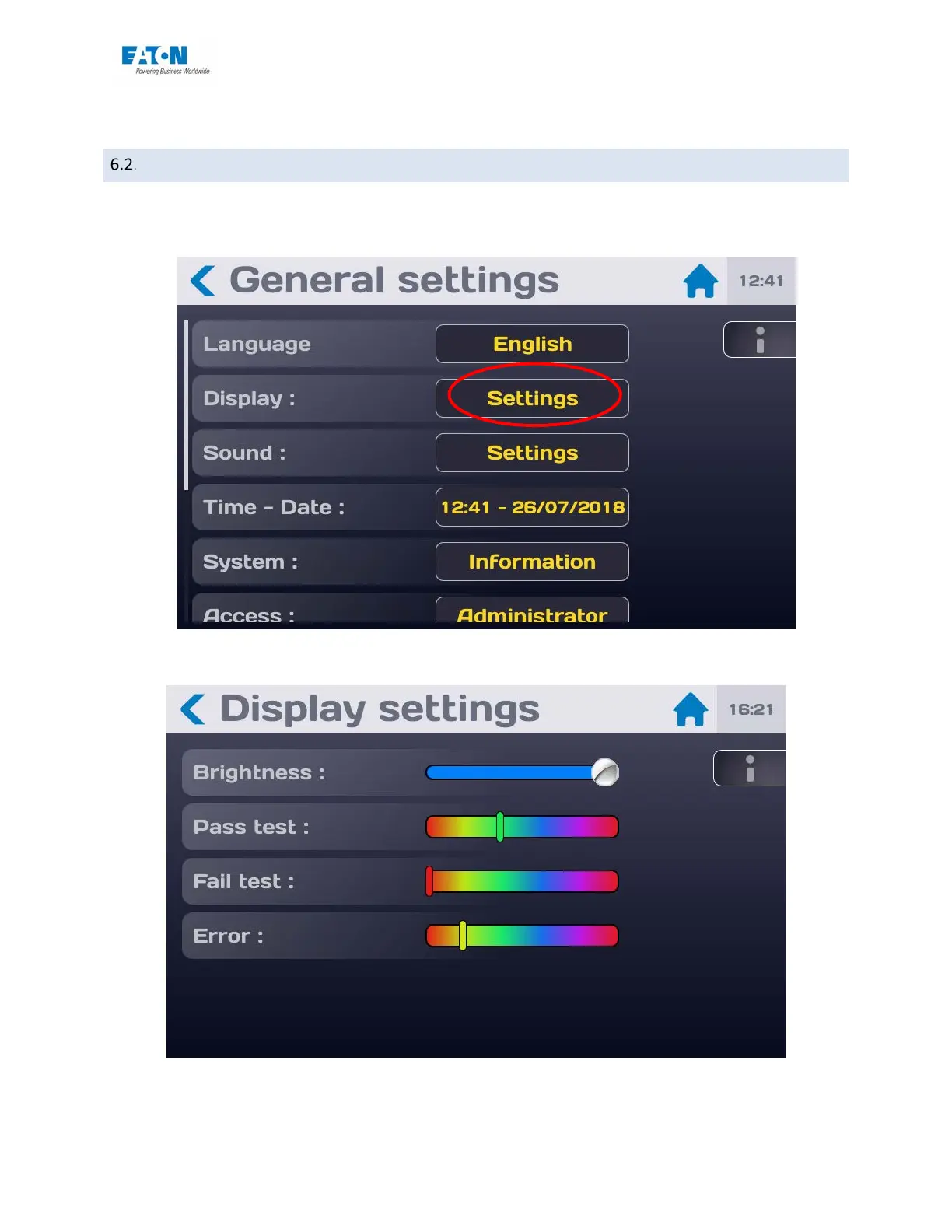

In the "General settings" menu press the “Settings” area of the "Display" line:

To obtain the following screen:

Adjust the brightness and colours by moving the different cursors by holding your finger on the

touch pad and dragging it from right to left or vice versa.
