User manual SEFELEC 5x Series 136 v1.06

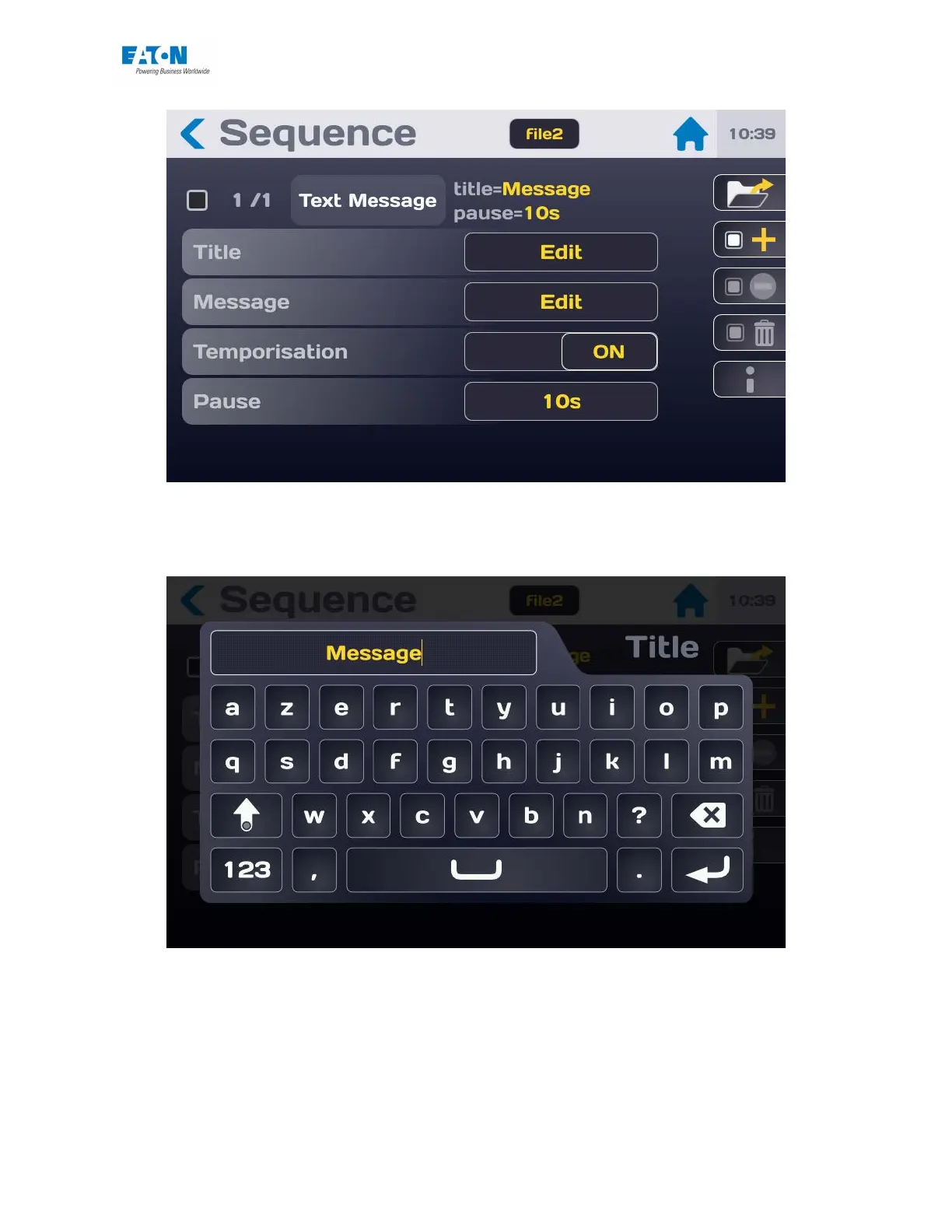

Press Edit the Title to access an input keyboard to give a title to the message.

Proceed in the same way for the other message text. It is necessary to enter a text, if not, a se-

quence error message is displayed.
