User manual SEFELEC 5x Series 148 v1.06

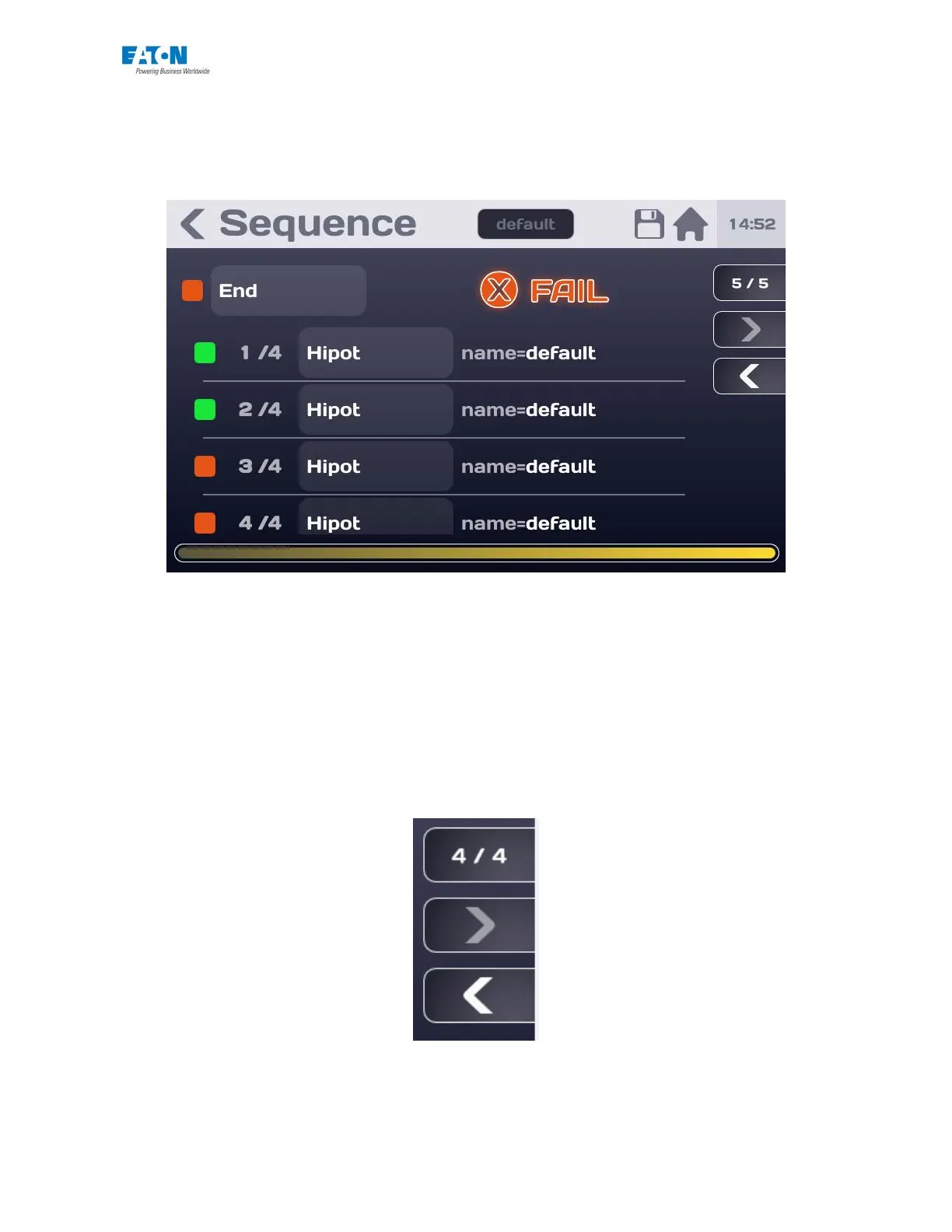

At the end of the repetition of n times, the sequence will be terminated with a synthesis of the

measurement results:

In this example, the result of the sequence is FAIL because of the measurement step 3/4 and

4/4 in the Hipot mode with the "default" settings file.

It is possible to review the screens of the different stages with the browse keys:

Table of Contents2
Introduction9
- Warranty10
- Pictograms Used11
- Warning and Safety Instructions13
- Declaration of Conformity14
- Qualification of Personnel14
- Exclusion of Liability14
- After-Sales Service15
Presentation of the Device16
- Basic Version16
- Options (to be Ordered According to the Requirement)17
- Accessories (to be Ordered According to the Requirement)18
Specifications19
- Overvoltage Category19
- Pollution Degree19
- Safety Class19
- Environment19
- General Characteristics19
- Measurement Specifications20
Safety30
- Security When Working on Electrical Devices30
- Safety Arrangements30
4.2.1. Safety Loops31
4.2.2. Safety Optimization32
- Precautions of Use33
Commissioning34
- Delivery Content34
- Installation of the Different Connectors and Cords35
- Instructions for Fitting in the Bay35
- Switching on the Power to the Device37
Configuration of the Device41
- Language Selection42
- Display Settings43
- Sound Settings44
- Time-Date Settings46
- System Settings48
- Access Settings52
- Selection of the Type of Interface54
- Restoration of the Default Settings55
- Storage of Results56
Setting the Measurement of Insulation Resistance60
- Adjusting the Measurement Time62
- Adjusting the Measurement Voltage64
- Adjustment of the Comparison Thresholds65
- Selection of the Filter Mode67
- Selection of the Megohm Per Kilometre Mode68
- Save under a File Name the Measurement SETTINGS69
Measurement of Insulation Resistance72
- Connection of the Component to be Measured72
- Precautions to be Observed During Measurement74
- The Following Error Messages78
Dielectric Strength Test Settings79
- Adjusting the Measurement Time81
- Adjusting the Measurement Voltage84
- Selection of the Mode of Cut-Out Fault Detection86
- Adjustment of IMAX, IMIN and Delta I Detection Thresholds87
- Selection of the Filter Mode89
- Backup of the Dielectric Strength Test Settings90
- Performing a Dielectric Strength Test93
- Multi-Slope Dielectric Strength Tests100
- Setting the Measurement of Ground Continuity109
- Ground Continuity Resistance Measurement119
- Sequence Mode126
  - List of Functions Available in the Sequence Mode127
Megohmmeter Step and Other Measurement Functions133
Multipoint Ground Continuity Step134
Text Message Step136
Image Message Step138
PDF Message Step140
Condition Step142
Repetition Step144
Pause Step145
Keyboard Entry Step146
- Execution of a Sequence147
- PLC Interface (Programmable Logic Controller)152
- IEEE488-2 (GPIB) Interface162
- ETHERNET Interface164
  - Cyber Security Recommendations165
Asset Management165
Risk Assessment165
Physical Security165
Account Management166
Network Security167
Remote Access167
Malware Defences168
Secure Maintenance168
Logging and Events Management168
Business Continuity/ Cybersecurity Disaster Recovery169
- First Time Connection - White List169
- Connection Examples170
Single Connection between a Pc and a Device with Afixed Ip Address170
Connection between a PC and a Device through a Network171
- Setting of the Ethernet Card of the PC under Windows XP171
Procedure to be Followed172
- Setting of the Ethernet Connection on the Device173
DHCP (Dynamic Host Configuration Protocol)174
IP Address174
Network Mask174
Protocol and Communication Port174
Syntax Rules174
List of ETHERNET Commands175
Orders175
Error Message175
Malfunction176
- RS232C Interface177
  - List of RS232C Commands179
General Commands179
Standardized Commands179
Standardized Queries180
Commands Dependent on the Device182
Request Depending on the Device184
RS232 / IEEE488-2 Commands Summary185
Operation Fault of the RS232C Series Connection186
- Application Notes187
Temperature188
Pressure188
Humidity188
- Insulation Resistance Measurement189
Precautions to be Observed189
Measurement of Capacitors189
Measurement on Cables190
Measurement Voltage Selection191
- Dielectric Strength Tests191
Selection of the Test Voltage192
19.5.1.1. Dielectric Strength Tests with Ac Voltage192
19.5.1.2. Dielectric Strength Tests with DC Voltage193
Breakdown Detection Mode Selection193
- Ground Continuity Measurement194
Current Selection194
Voltage Selection194
Test Time195
Precaution to be Observed195
- Installation of the Sockets in the Rear Panel196
  - Rear Panel Description196
C5 Safety Connector197
- Care, Maintenance and Calibration198
  - Preliminaries198
  - Return of Equipment198
