User manual SEFELEC 5x Series 160 v1.06

PLC SYSTEM DEVICE

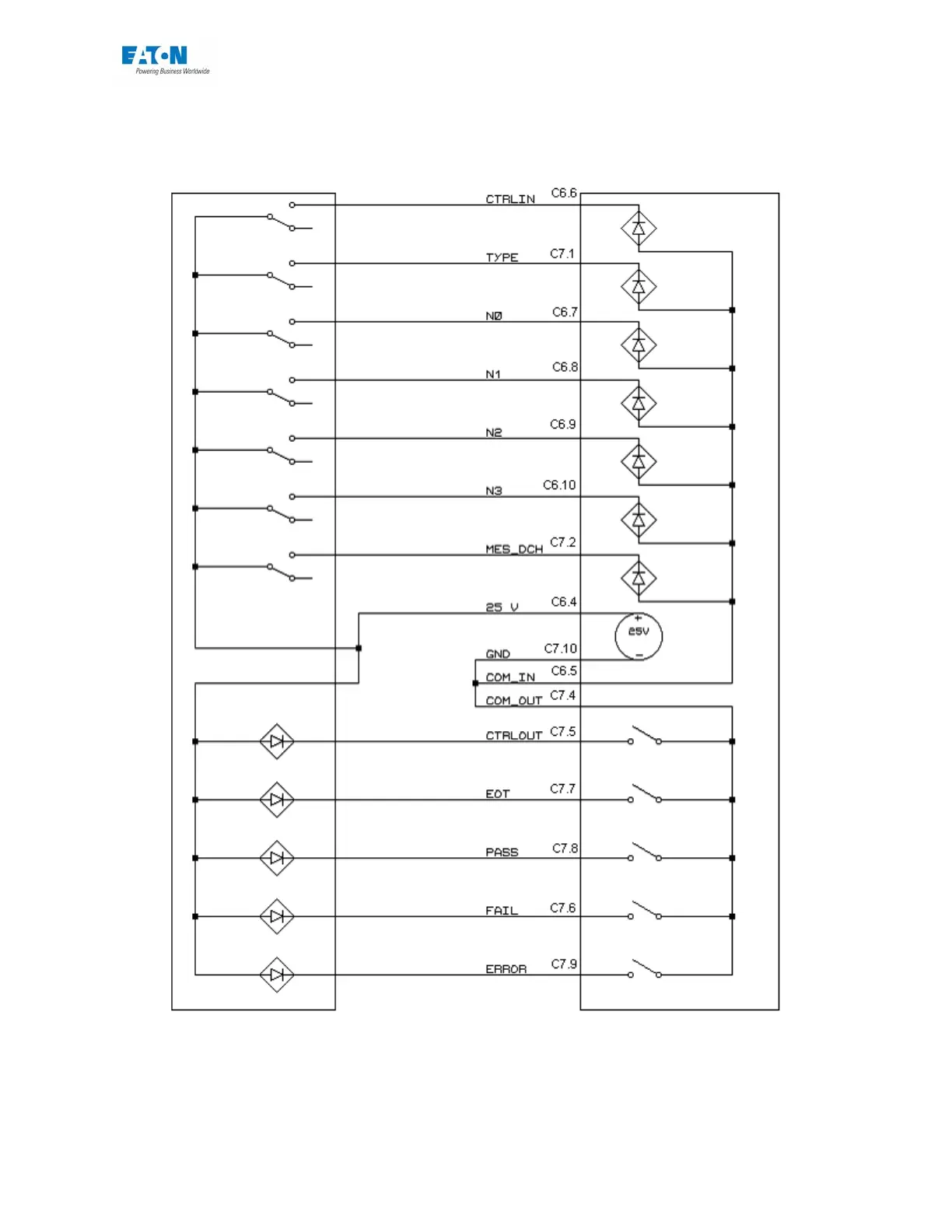

Diagram No. 5: Wiring of the PLC option with the internal power supply to the measuring

device.
