User manual SEFELEC 5x Series 84 v1.06

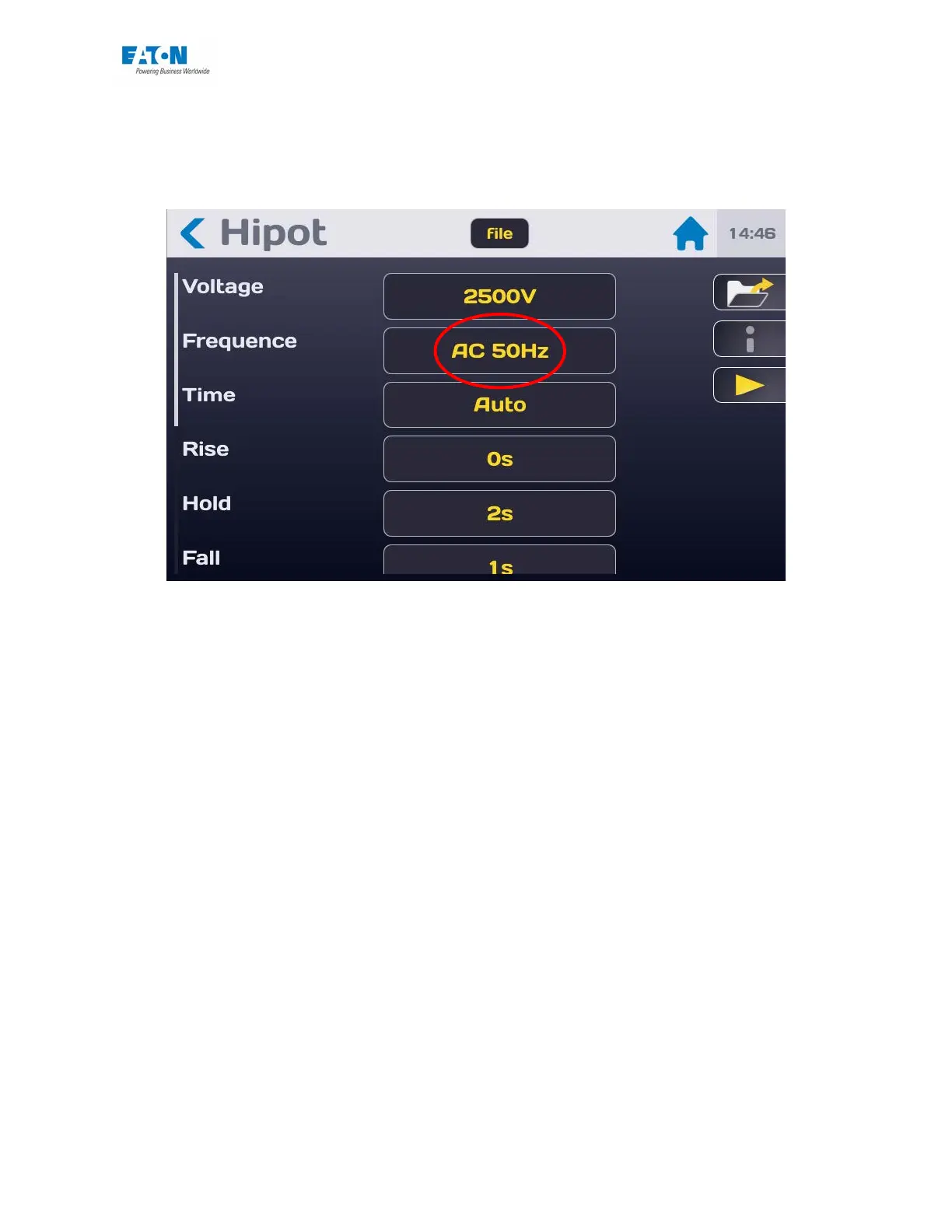

From the settings menu or by the voltage short cut key at the bottom of the measuring screen

press the active area of the "Frequency" line:

Choose the frequency of the voltage:

- AC 50 Hz

- AC 60 Hz

- DC
