AS9216 Description AS9216 Installation and
Maintenance Manual
2-6 ECI Telecom Ltd. Proprietary 492006-2306-013-A00
Area Label Description Status
Ports 9
SFP ports
link,
management,
and activity
 Off: port enabled and link is down
 Green: link up
 Blinking Green: current activity
 Amber: port is administratively
disabled
10
RJ45/SFP
ports link and
activity
 Off: link down
 Green: link up
 Blinking Green: current activity
11
RJ45/SFP
ports
administrativ
e status
 Off: port enabled and link is down
 Amber: port is administratively
disabled
12
XFP ports
link,
management,
and activity
 Off: port enabled and link is down
 Green: link up
 Blinking Green: current activity
 Amber: port is administratively
disabled

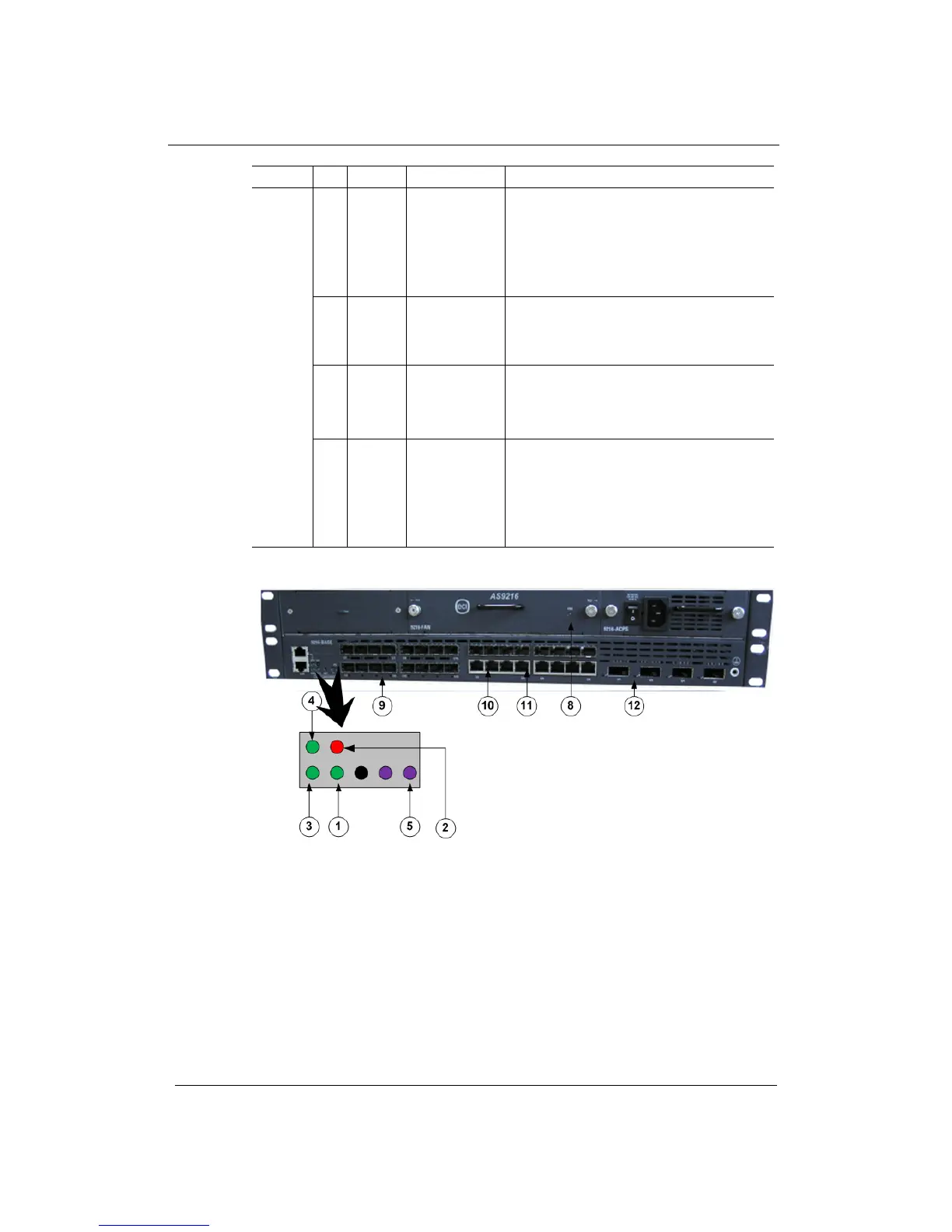

The figure below details the AS9216 LEDs:
Figure 2-2: AS9216 LEDS
