Hot Swapping Modules AS9216 Installation and
Maintenance Manual
6-2 ECI Telecom Ltd. Proprietary 492006-2306-013-A00
4. Draw the 9216-DCPS or 9216-ACPS out of its slot.
5. Insert the replacement module in the slot, push it carefully all the way in,
and fasten the panel screws.

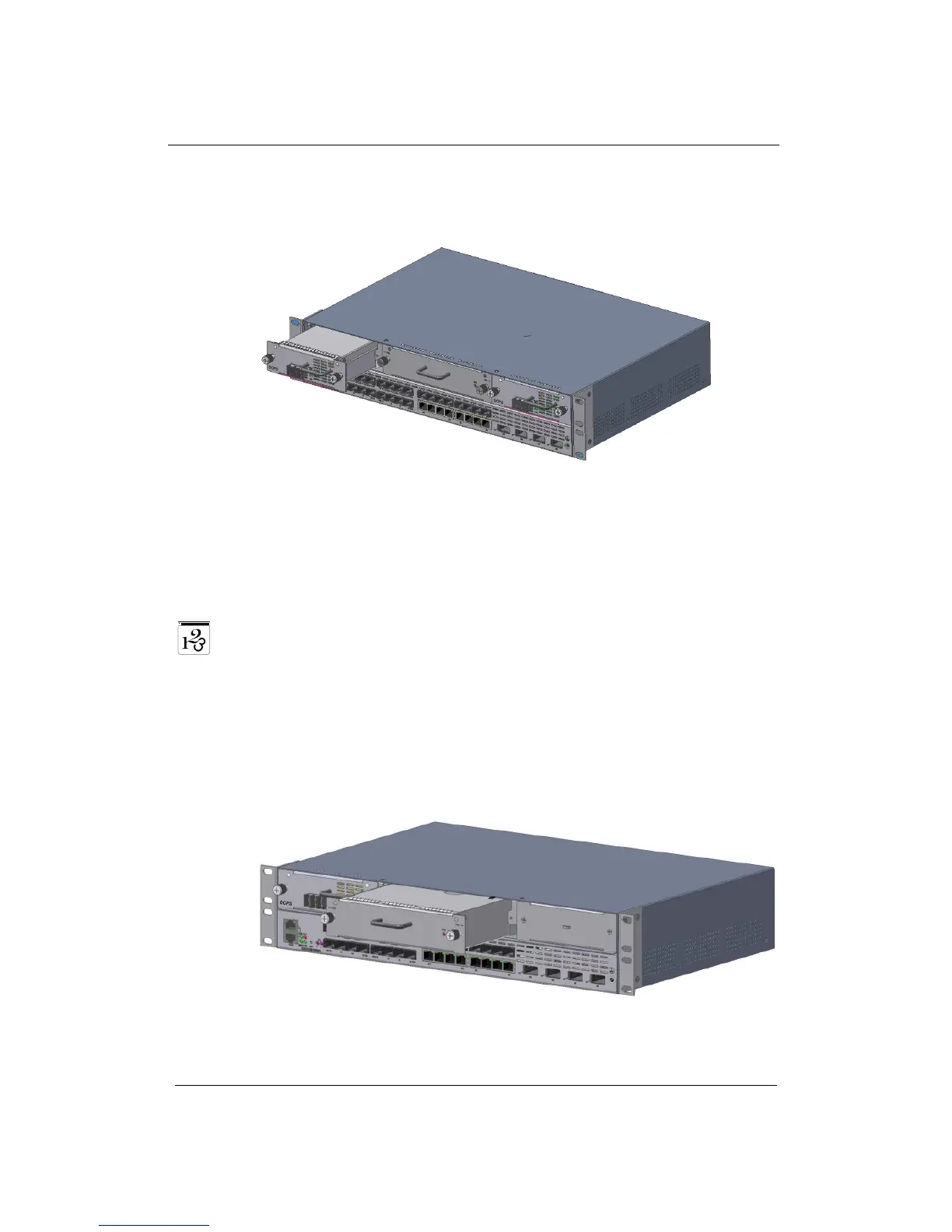

Figure 6-1: Hot swapping a 9216-DCPS or 9216-ACPS
Hot Swap 9216-FAN
AS9216 includes one hot-swappable 9216-FAN.
To replace a 9216-FAN:
1. Release the 9216-FAN's 2 panel screws.
2. Draw the module out of its slot.
3. Insert the replacement module in the slot, push it carefully all the way in,
and fasten the panel screws.
4. Verify that the 9216-FAN LED is green.
Figure 6-2: Hot swapping a 9216-FAN
