Overview of interfaces - Ecoplus EXN-II
1 2
3 4
5
6
7
8

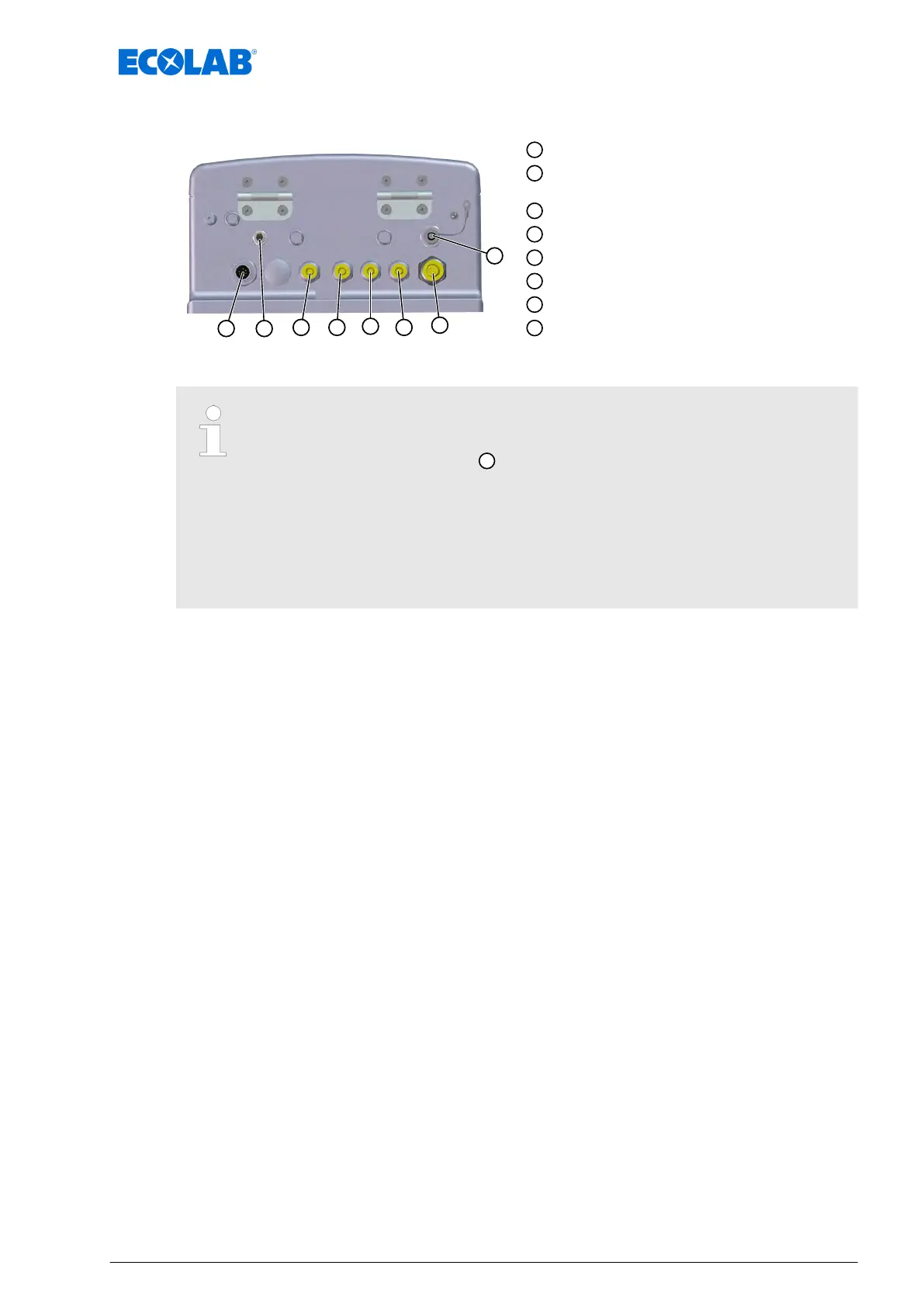

Fig. 3: Connections
1
Connect conductance measuring cells
2
Connect mains-cut off module to input enabling signals
(part no. 272060)
3
Threaded cable union for rinse aid empty signal
4
Threaded cable union for rinse aid pump control
5
Threaded cable union for detergent empty signal
6
Threaded cable union for detergent pump control
7
Threaded cable union for power supply (24 VDC)
8
USB/PC cable connector (part no. 272065) (optional)
To import/export, retrofit the USB interface (part no. 10240845) on the control
unit.
Ä
‘Accessories’ on page 54
The USB/PC cable connector
8
is used to connect a USB stick to the control
PCB.
This can be used for the following purposes:
Installing new firmware
Saving and uploading configuration data
Saving reports
Function description and design
23 MAN054003, Ver. 1-02.2024
