Patient Monitor User Manual Monitoring CO
2
- 91 -
for warm-up.
2 Connect the cannula, airway adapter, or sample line as appropriate, to the sensor. It will
click into place when seated correctly.

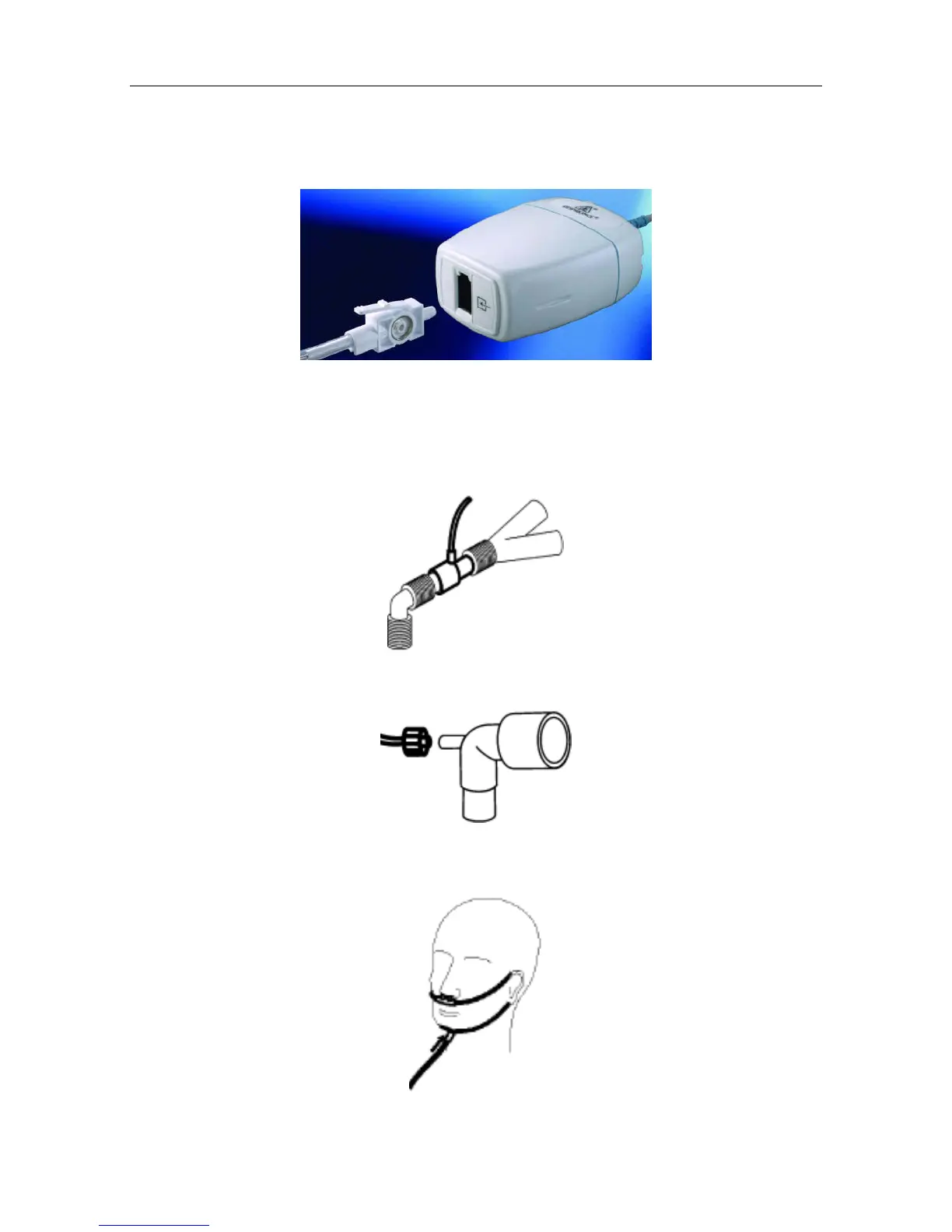

Connecting LoFlo module
3 To zero the sensor, please refer to zeroing the sensor.
4 For intubated patients, an airway adapter is required;
Air adapter
For non-intubated patients: Place the nasal cannula onto the patient.
Place the nasal cannula
