Chapter 22 Recording
22.1 General Information
A thermal dot matrix recorder is used for the monitor and can support many recording types and
output patient information, measurement data, review data waveform and so forth.

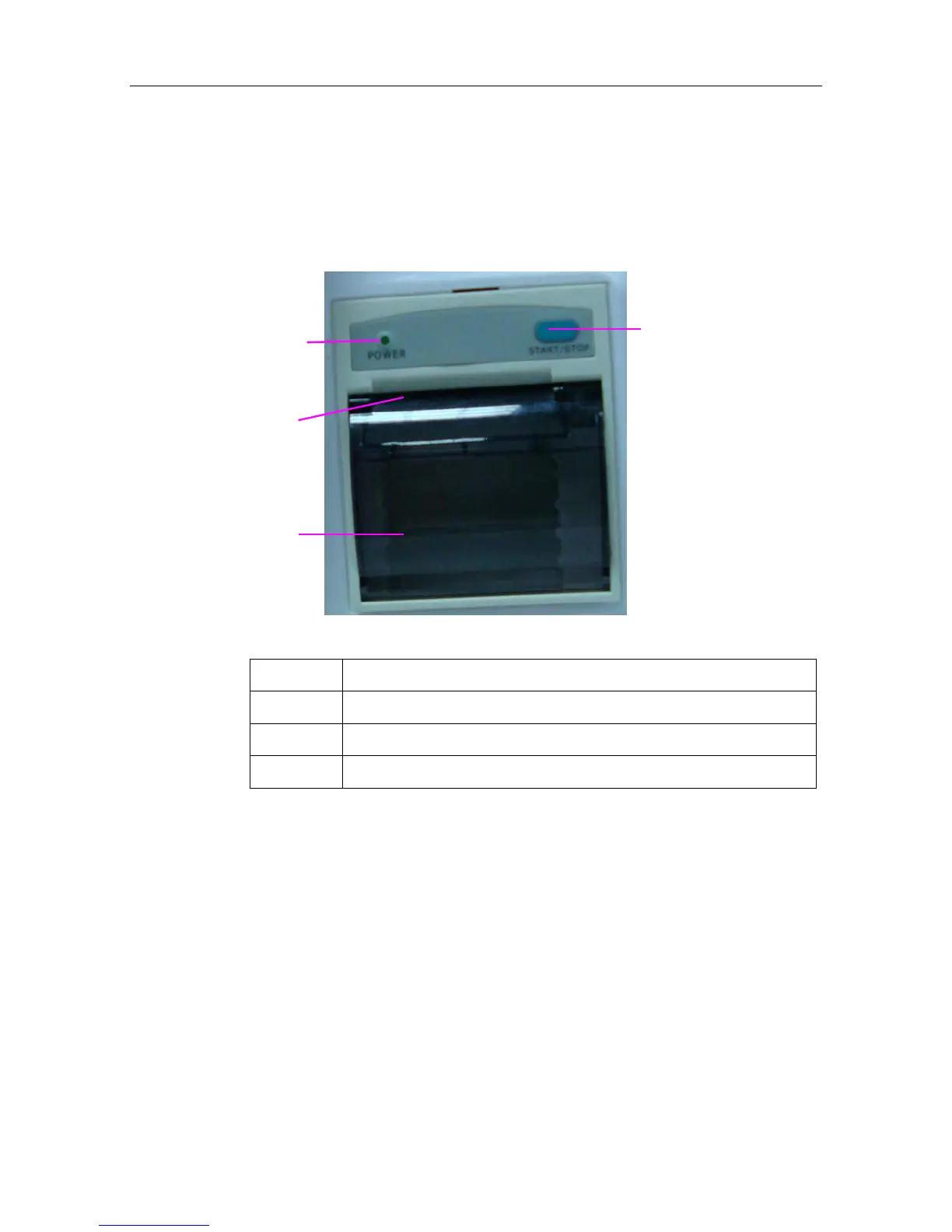

1
Recording indicator
2
Recording key, press this key to start or stop recording task.
3
Paper outlet
4
Recorder Door
22.2 Performance of the Recorder
 Waveform record is printed at the rate of 25 mm/s or 50 mm/s.
 48mm wide printout paper.
 It can record up to three waveforms.
 User-selectable real-time recording time and waveform.
 Auto recording interval is set by the user, and the waveform is in accordance with the real
time recording.
NOTE:
It is suggested that the user should not use the recorder when the low battery displays, or
the monitor may be turned off automatically.
