1.3.2 2050-DSS Starmux IV Topside
The Starmux IV digital telemetry topside can be purchased independently or
rack-mounted with an Edgetech Windows 2U Computer with EdgeTech’s
Discover 2050 software installed. The computer and Starmux IV provide
power and communications to the towfish, control the various sonars and
sensors on the vehicle, provide sonar and sensor displays, and collect and
store data. This system is operated by a standard keyboard, trackball mouse,
and a single widescreen video display. Additional displays are available as an
option. Customers can use their computers with Discover 2050 installed as
well.
1.3.3 Tow and Test Cables
The 2050 Towfish is connected and towed by a rigid bridle, an armored tow
cable, and a vessel’s winch. The towfish interfaces with the topside processor
over the coaxial tow cable using asymmetric digital subscriber line (ADSL)
modems in both the towfish and the Starmux IV telemetry system.
Customers can purchase EdgeTech armored tow cables and test cables or
provide their own.
1.4 Optional Equipment
1.4.1 ROV Mounting Kit
The 2050-DSS sub-bottom transducers can be mounted to a customer’s ROV. This kit includes the
hardware and cabling to do so.
1.4.2 Magnetometer
A magnetometer can be specified or supplied from several manufacturers with EdgeTech's optional
magnetometer interface. Consult your Edgetech Sales Representative or C
USTOMER SERVICE to discuss the
best magnetometer option.

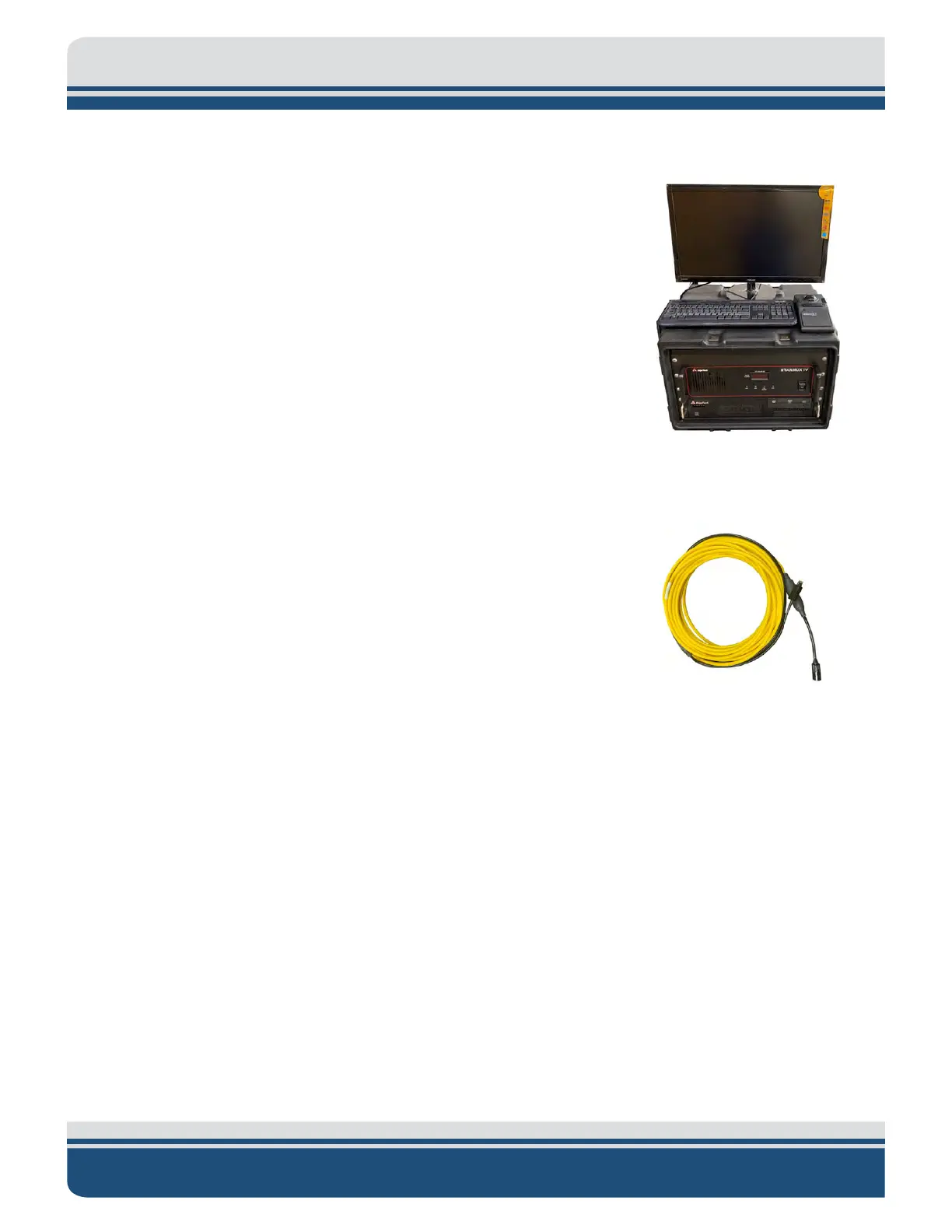

Figure 1-5: Case Mounted
Starmux IV and EdgeTech
