4-40
2050-DSS SIDE SCAN AND SUB-BOTTOM SYSTEM 0024048_REV_A

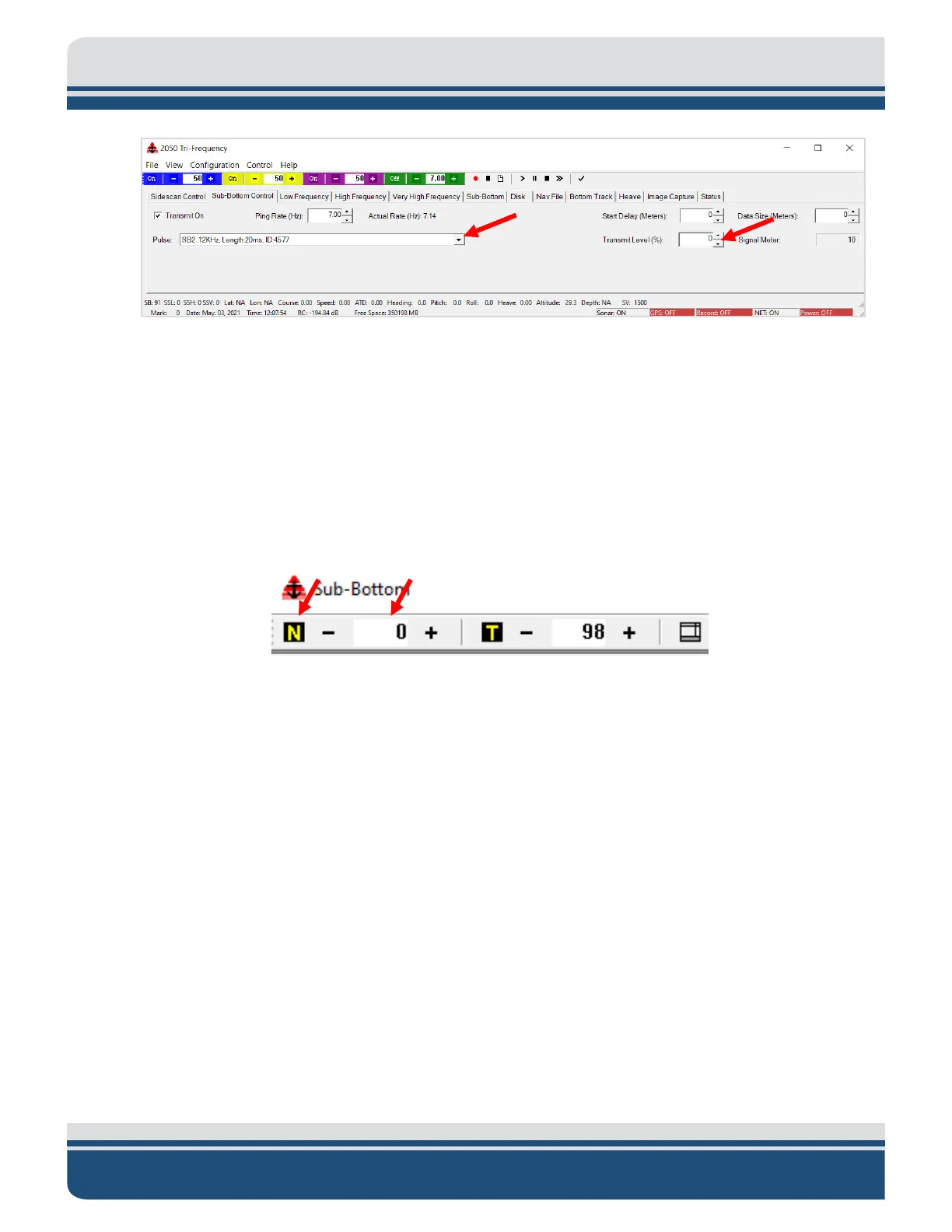

Figure 4-10: Sub-Bottom Control Tab-Pulse and Transmit Level Called Out
4. In the Sub-Bottom Control Tab, select a Transmit Pulse using the “Pulse” dropdown. Set “Transmit
Level (%)” to “0”. Verify that you can hear the system transmitting. The transducers should begin
transmitting (at 0%) and receive data should begin scrolling on the Waterfall Display in Discover
Sub-Bottom, from right to left.
5. In the Sub-Bottom Display Window Shortcut Toolbar, set Gain to either 0 or -3 dB, and then click
Normalize Gain Button.
Figure 4-11: Sub-Bottom Shortcut Toolbar- Range Text Field and Normalize Gain Button Called Out
6. Tap the underside of the tow vehicle near the PVDF receiver with the handle of a screwdriver
while observing the Sub-Bottom Waterfall Display in Discover.
Streaks or noise spikes should be visible in the Waterfall Display, as shown in F
IGURE 4-12. This
verifies the receive channel is operating.
