Edgetech 2050-DSS User Manual

5-55
=

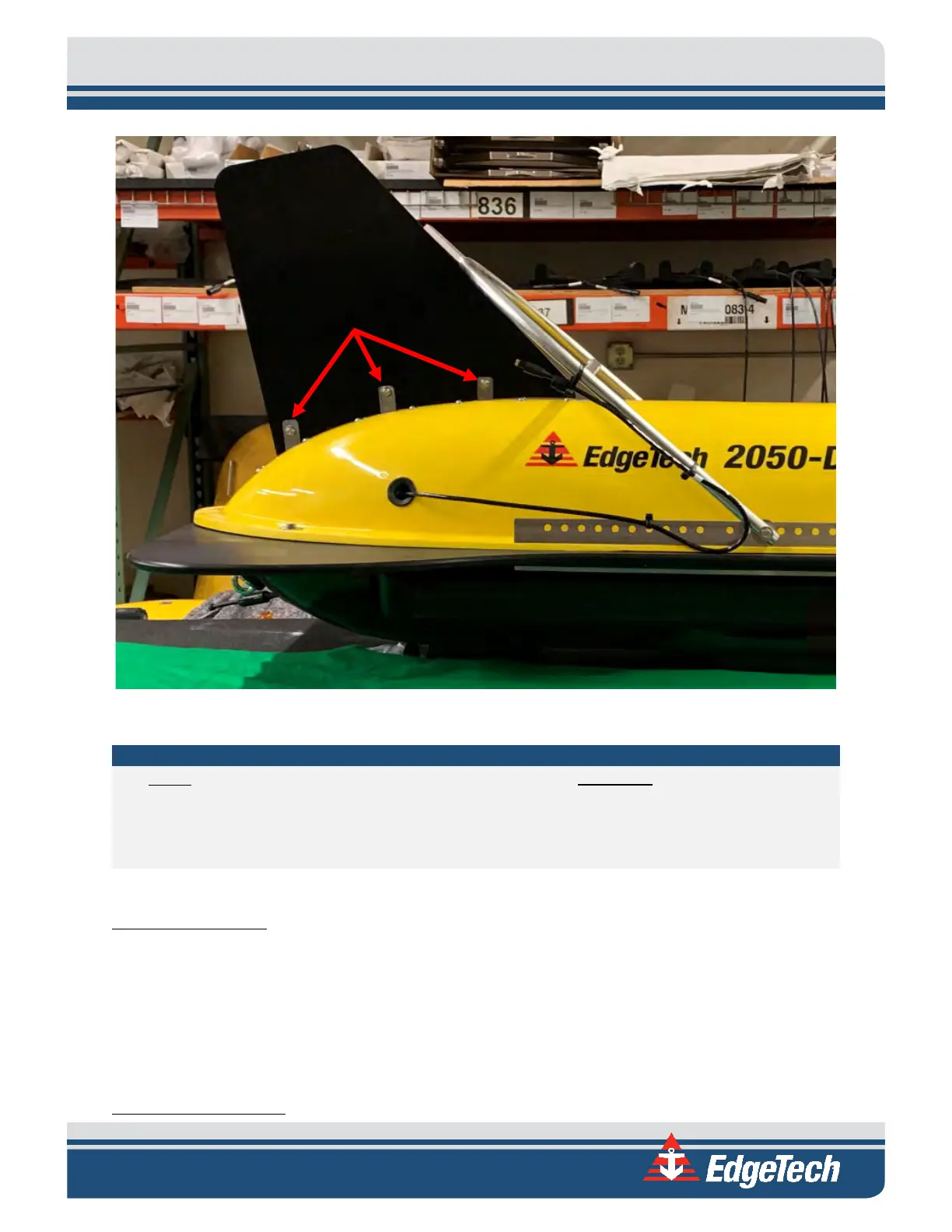

Figure 5-1: 2050-DSS Tail Rudder [3] Bolt Hardware Assembly Locations
REQUIRED TOOLS AND HARDWARE
Tools:
• 1/2” Crescent or Adjustable Wrench
• 1/2
” Crescent, Adjustable Wrench of Socket
Wrench with 1/2” Socket
Hardware:
• [3] 5/16” Bolts
• [3] 5/16” Nuts
• [6] 5/16 Washers
Table 5-1: Tail Rudder Removal and Installation Tools and Hardware
Removal Instructions:
1. Unthread the three tail rudder 5/16” bolt, 5/16” nut, and 5/16” washer hardware assemblies
using [2] 1/2” inch wrenches.
2. Carefully lift the tail clear of the vehicle’s [3] rudder mounting brackets. Store rudder and retain
all hardware for reassembly.
Installation Instructions:
[3] Tail Rudder
Mounting Assemblies
