2050-DSS SIDE SCAN AND SUB-BOTTOM SYSTEM 0024048_REV_A
REQUIRED TOOLS AND HARDWARE
• 9/16” Crescent or Adjustable Wrench
• 9/16” Crescent, Adjustable Wrench of Socket
Wrench with 9/16” Socket
• Cutting Plyers
• [13] 3/8” Bolts
• [13] 3/8” Nuts
• [13] 3/8” Split Lock-Washers
• [8] 3/8” Standard Flat
Washers
• [10] Fender Flat Washers
Table 5-2: Upper-Shell Disassembly and Assembly Tools and Hardware
WARNING! Power down the system and disconnect the cable from
Starmux IV. Injury or death can occur if the exposed connector on the tow
cable is energized. Always connect the tow cable to the towfish first.
Upper-Shell Disassembly Instructions:
1. Shut down the system and disconnect the
cable from the tow cable or test cable. The
system should never be powered during this
process.
2. Remove the vehicle’s tow bridle as
instructed in the T
OW BRIDLE REMOVAL section
of this manual.
3. Unthread the [8] 3/8” bolts, [8] 3/8” split-
lock washers, [8] 3/8” standard flat washers
of the eight bolt-hardware assemblies from
the [2] threaded tow plates securing the tow
bridle mounting rails and upper and lower-
shells using the 9/16” wrenches.
4. Remove the [2] tow bridle mounting rails
from the vehicle. Note their orientation for
installation.
5. Unthread the [5] 3/8” hex nuts, [5] 3/8”
bolts, [5] 3/8” split-lock washers, [10] 3/8”
fender flat washers of the five bolt-hardware
assemblies securing the upper-shell using
the 9/16” wrenches.

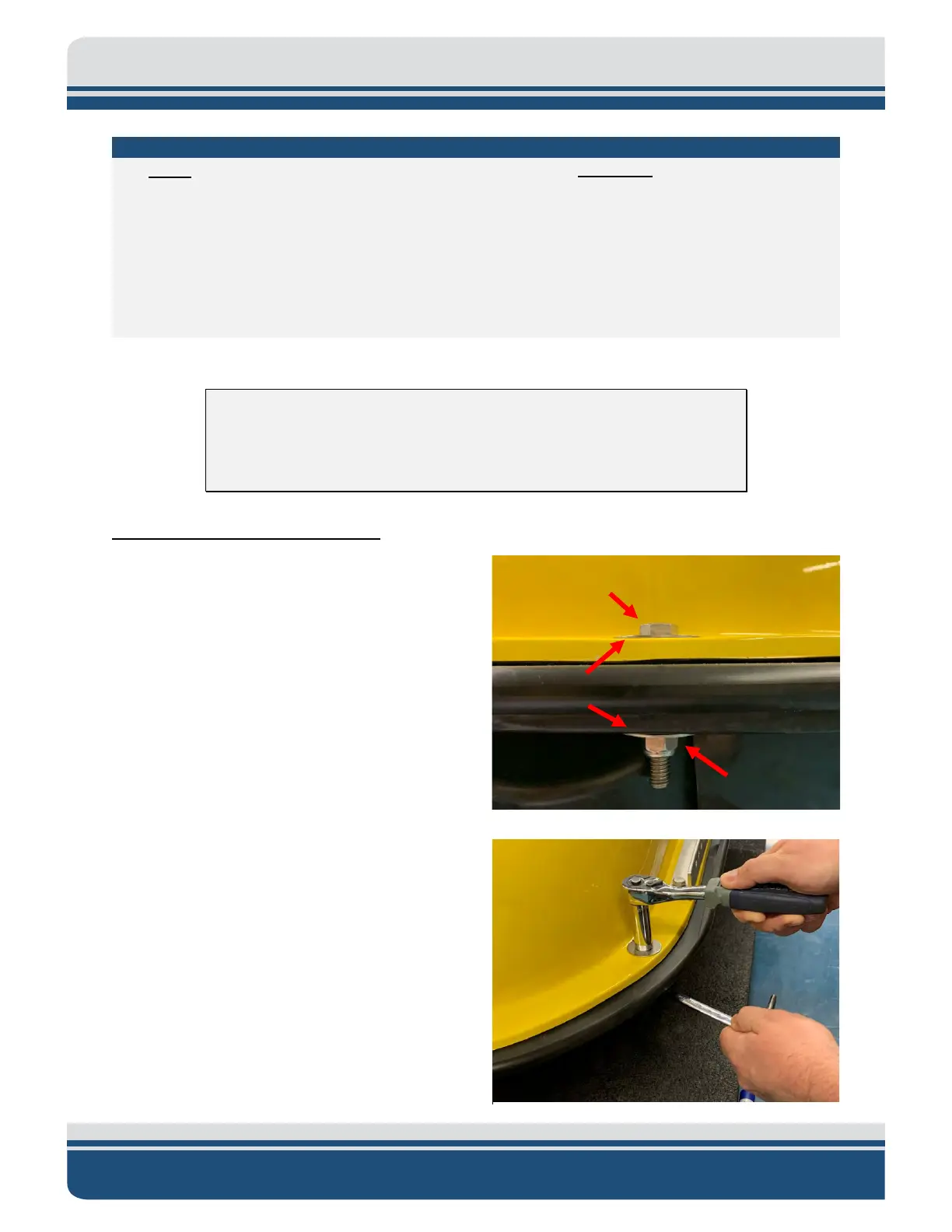

Figure 5-6: 2050-DSS Bolt Hardware Assembly
Figure 5-5: 2050-DSS Bolt Hardware Disassembly
