Edgetech 2050-DSS User Manual

5-61
=
5.7 Sub-Bottom Transducer Removal and Installation
The sub-bottom transducer can be removed by removing the top cover of the towfish, unplugging the
power and data cable from the bottle, removing the worm/hose-clamps that secures the transducer to
the mounting brackets, and lift the transducer from the towfish.

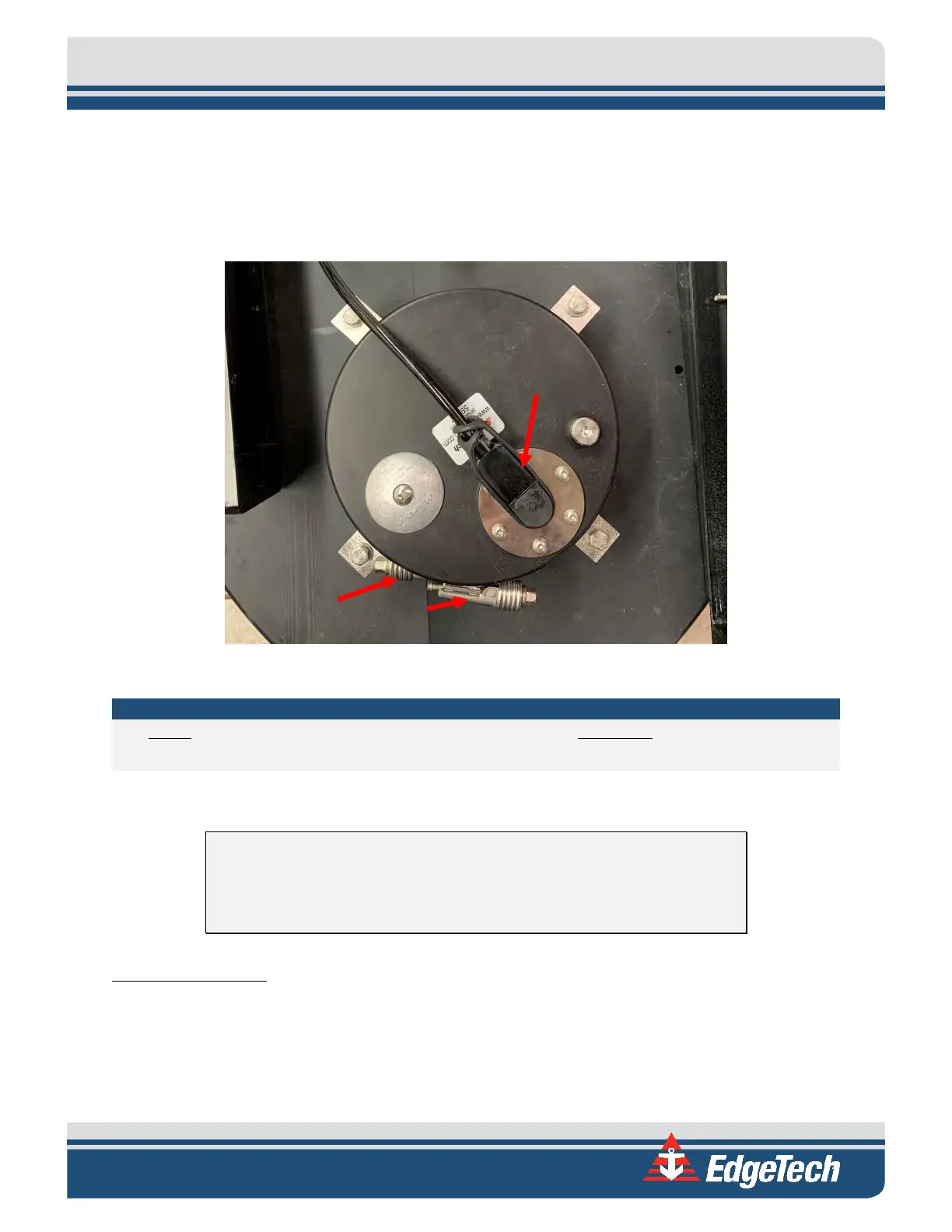

Figure 5-8: 2050-DSS Vertically Mounted Sub-Bottom Transducer Removal and Installation
REQUIRED TOOLS AND HARDWARE
Tools:
• Flathead Screwdriver
Hardware:
• 7.5” Worm/Hose Clamps
Table 5-4: Sub-Bottom Transducer Removal and Installation Tools and Hardware
WARNING! Power down the system and disconnect the cable from
Starmux IV. Injury or death can occur if the exposed connector on the tow
cable is energized. Always connect the tow cable to the towfish first.
Removal Instructions:
1. Power down the 2050-DSS system and disconnect the tow vehicle power and data cable.
2. Remove towfish upper-shell. See the O
PENING THE 2050-DSS TOWFISH section of this manual for
detailed instructions.
3. Unplug the cable from the sub-bottom transducer or unplug the cable from the endcap.
[2] Worm/Hose Clamps
Power and Data Cable
