Edgetech 2050-DSS User Manual

3-24
2050-DSS SIDE SCAN AND SUB-BOTTOM SYSTEM 0024048_REV_A
3.1.5 2050-DSS Magnetometer I/O Interface (J2)
The 2050 has an interface for a magnetometer. The bulkhead is wired to the 2050 bottles RS232 serial
COM port. The wiring for the bulkhead is listed in the table below. The standard interface cable is
0007367.

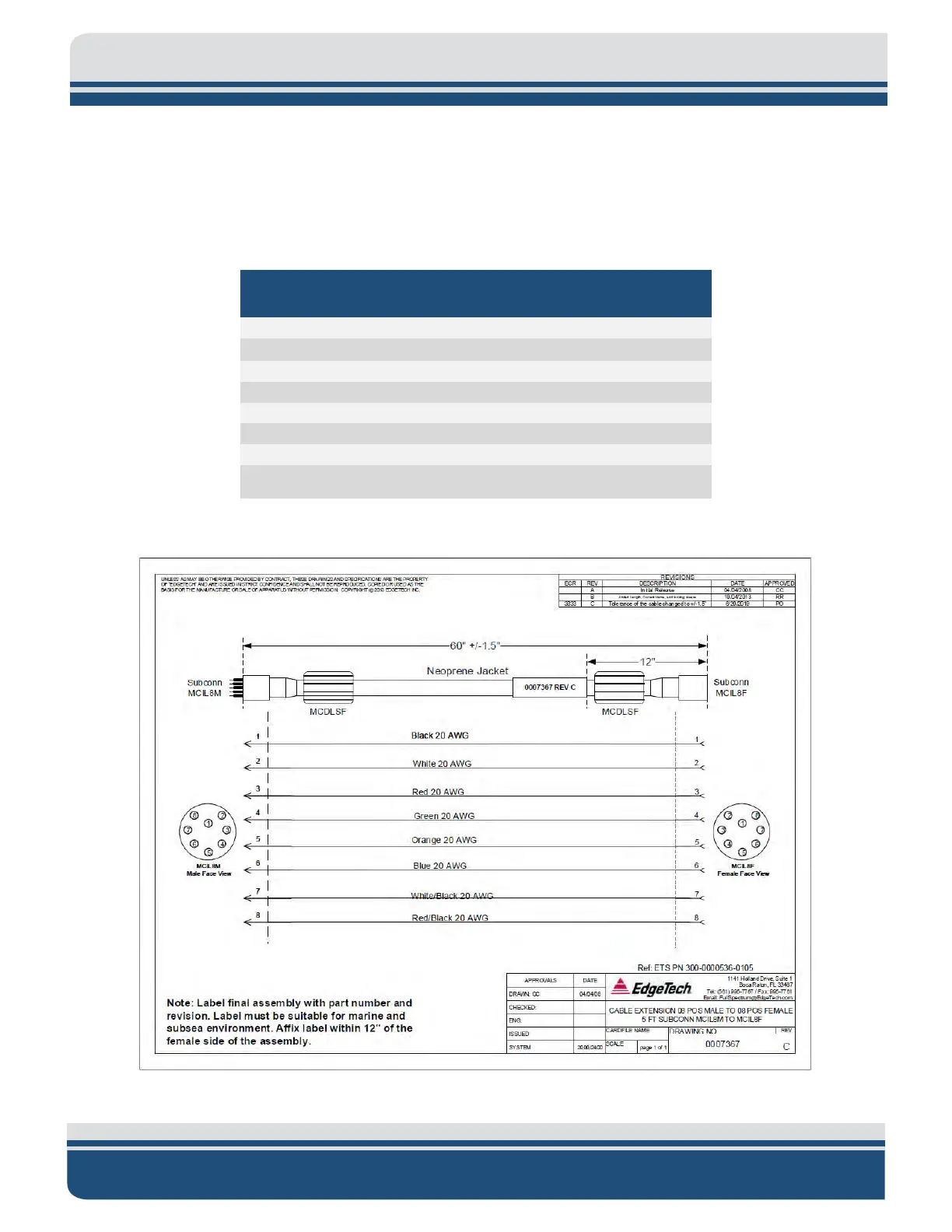

Figure 3-6: Magnetometer Interface Cable Diagram (0007367)
CONNECTOR J2
(MCBH8F)
DEFAULT WIRING
1
+27 VDC
2
0 VDC
3
COM 4 RS 232 IN
4
COM 4 RS 232 OUT
5
GND, RS232
6
N/C
7
N/C
8 N/C
Table 3-2: Magnetometer Interface Cable Pin Outs
