Edgetech 2050-DSS User Manual

4-46
2050-DSS SIDE SCAN AND SUB-BOTTOM SYSTEM 0024048_REV_A

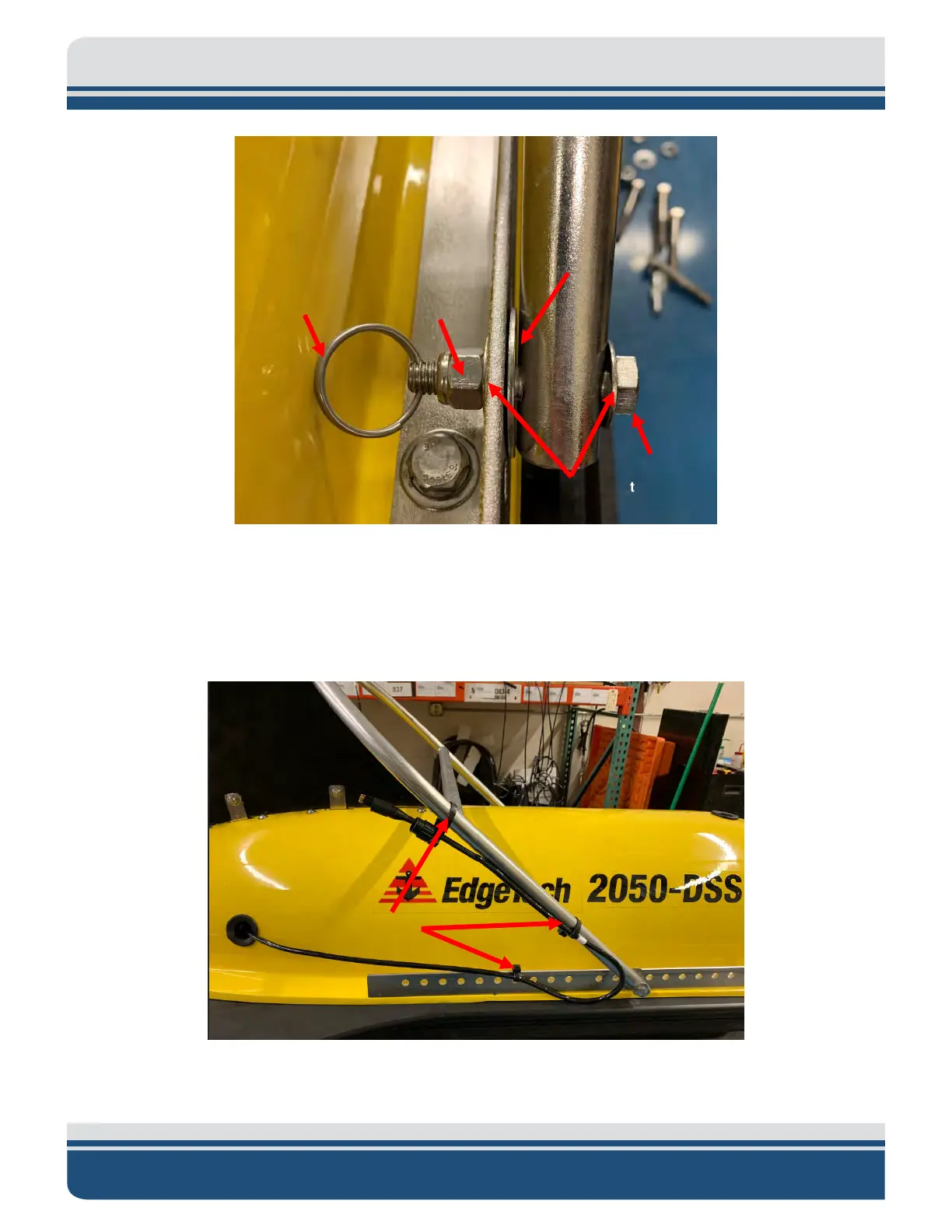

Figure 4-16: Tow Bridle Arm Removal Hardware
3. Run the power and data cable up and along the starboard bridle arm. Secure with three cable ties.
One tie should be lashed through a mounting rail hole, one on the lower bride arm and one lashed
upper bridle arm above the horizontal support. Leave enough slack in the cable between the
bridle and horizontal support cable ties to rotate the tow arm and never pull on the cable.
Figure 4-17: 2050-DSS Starboard Bridle Power and Data Cable Cable-Tie Locations
[3] Cable
Ties
1-1/16”Split Ring
3/8” Nut
3/8” Standard Flat
Washers
3/8” Fender Flat Washer
3/8” Bolt
