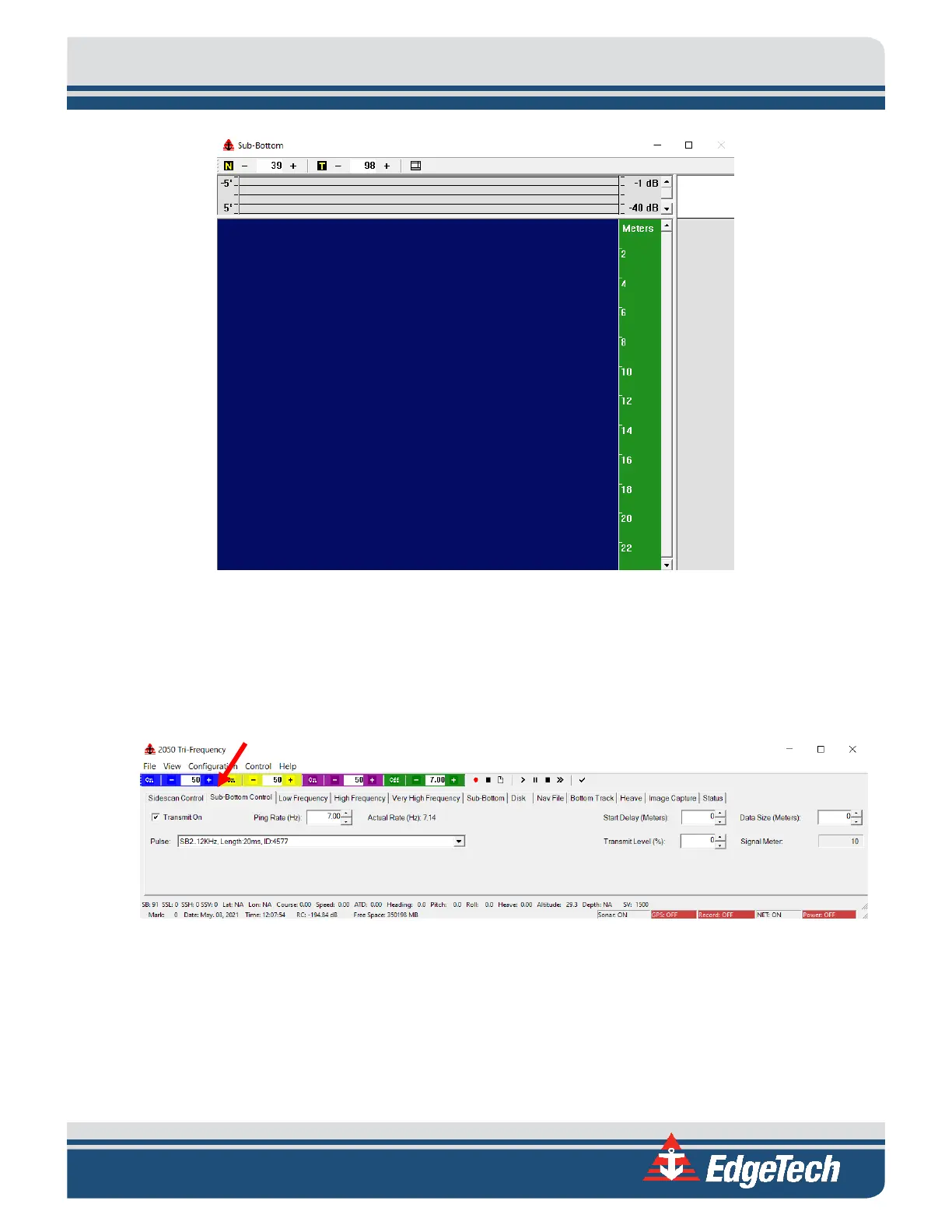

Figure 4-8: Discover 2050 Sub-Bottom Display Window
To perform the pre-deployment checks:
1. Follow the instructions in A
CTIVATING THE TOPSIDE section of this manual and activate the Sub-
Bottom amplifiers in Web Relay.
2. Run a Tap Test – Navigate to the Sub-Bottom Control Tab, shown in F
IGURE 4-9.
Figure 4-9: The Sub-Bottom Control Tab
3. In the Sub-Bottom Control Tab, select a Transmit Pulse using the “Pulse” dropdown. Set “Transmit
Level (%)” to “100”. Select the “Transmit On” checkbox. Verify that you can hear the system
transmitting. The transducers should begin transmitting (at 100%) and receive data should begin
scrolling on the Waterfall Display in Discover’s Sub-Bottom display, from right to left.
