2050-DSS SIDE SCAN AND SUB-BOTTOM SYSTEM 0024048_REV_A
1. Gently set the fin on the aft end of the vehicle within the [3] rudder mounting brackets, orienting
the rudder bolt holes to match the corresponding bracket bolt holes.
2. Thread the three tail rudder 5/16” bolt, 5/16” nut, and 5/16” washer assemblies using [2] 1/2”
wrenches. Tighten until snug.

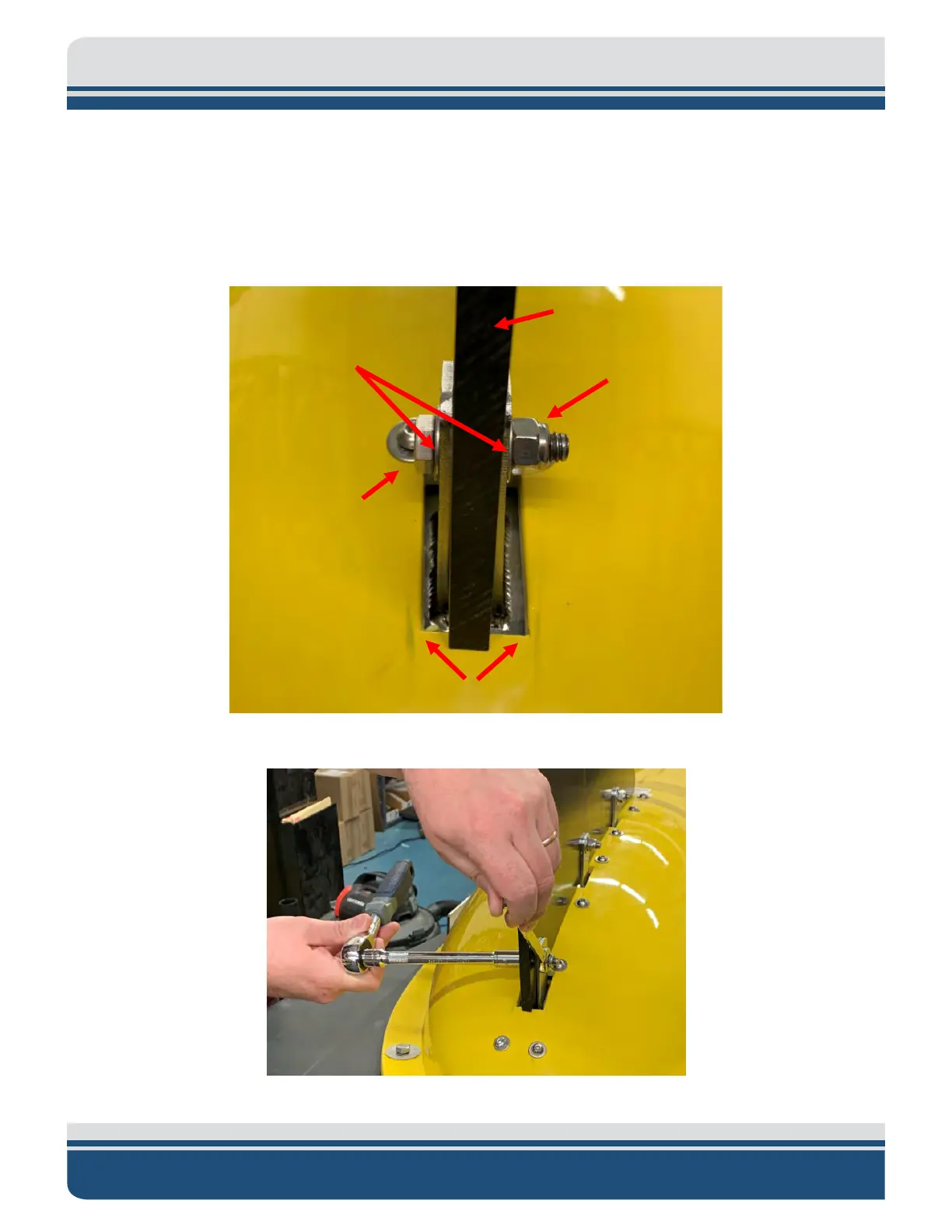

Figure 5-2: Tail Rudder Bolt Hardware
Figure 5-3: Tail Rudder Bolt Hardware Disassembly
Tail Rudder
Tail Rudder Mounting
Bracket
[6] 5/16” Washers
[3] 5/16” Hex Nut
[3] 5/16” Bolt
