2.0 SPECIFICATIONS
Mechanical & Physical Specifications
WARNING!
The 8242XS is not intended for overhead lifting. Exercise extreme caution
to prevent serious personal injury.
Mechanical specifications for the 8242XS Release are as follows:
SPECIFICATIONS
VALUE
Release mechanism
Spring-driven, rotary type with advantage hook
Recommended max static load rating (working)
5,500 kg (12,000 lbs) central axis loading
Depth rating (working)
6,000 meters (19,700 ft)
Length
94.6 cm (38.00 in) (standard unit)
Housing O.D.
13 cm (5.12 in)
Housing I.D.
10 cm (4.0 in)
Weight in air
36 kg (79 lbs) (standard unit)
Weight in water
28 kg (62 lbs) (standard unit)
Exposed materials
Acetal (washers, etc.)
NiAlBz (housing, end caps, and mechanism)
Buna –N (O-Rings)
Titanium
Table 2-1: Mechanical & Physical Specifications

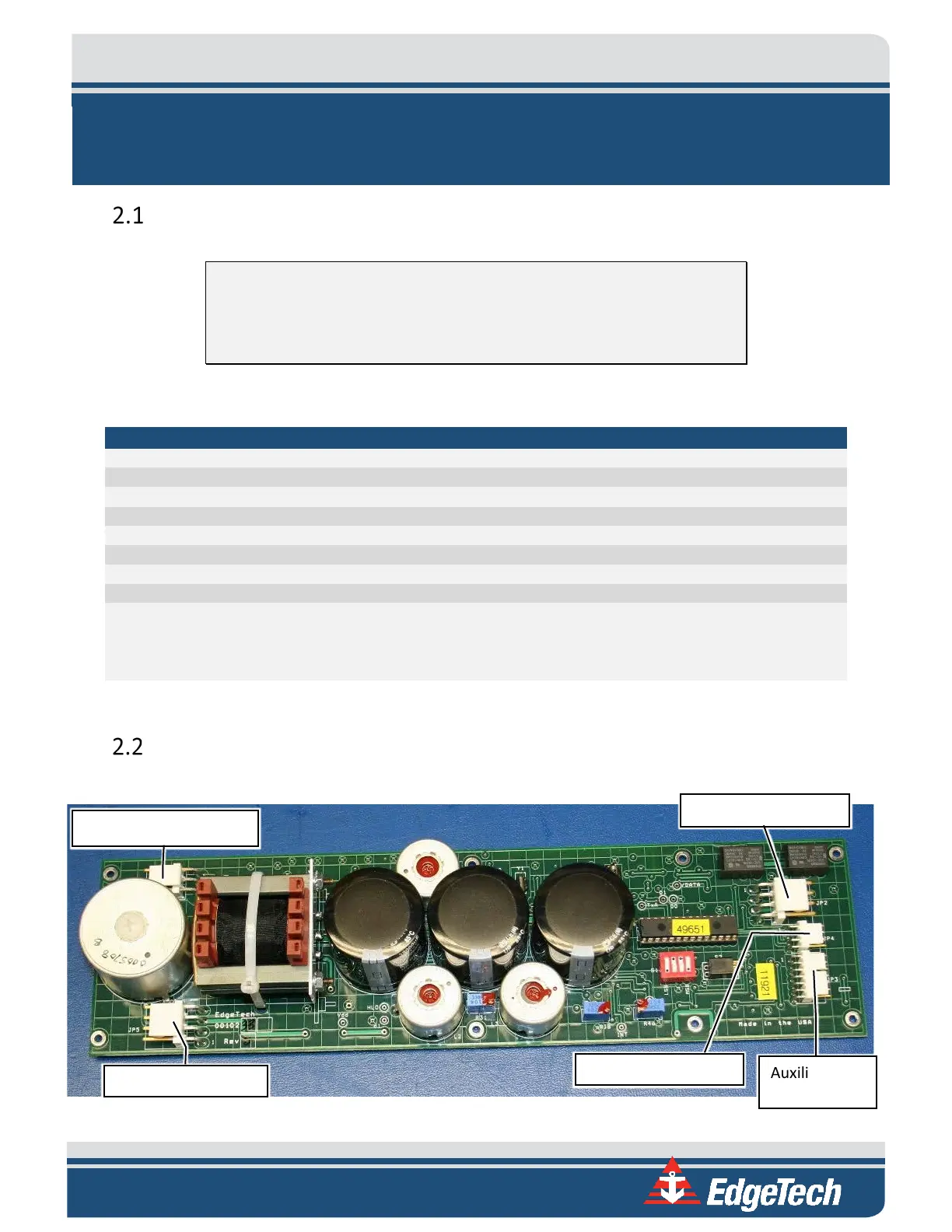

Printed Circuit Board (PCB)
The PCB connectors on the 8242XS board are shown below:
Figure 2-1: PCB Connectors
Transducer Connector
Battery Connector
Auxiliary I/O
Connector
Motor Connection
System Sense Lines
