4-1
4.0 OPERATING INSTRUCTIONS
This section of the manual covers instructions for normal operations, including opening and closing the
Transducer End.
To start using the 8242XS, the Housing must be opened so that the battery can be plugged in. The
instructions for this continue below in
SUB-SECTION 4.2.
WARNING!
The 8242XS is not intended for overhead lifting. Exercise extreme caution
to prevent serious personal injury.
Tools
• ½” Socket
• ½” Wrench
• Soft Mallet
Turning the Unit On
8242XS’ are carefully tested and shipped from the factory with a new battery pack installed. Unless
otherwise requested, all battery packs are disconnected in transit, to prolonging the battery life.
To use the 8242XS, the Housing MUST be opened so that the battery can be plugged into the JP5 header
connector on the electronic board. Then, the unit must be closed and the Housing purged.
Removing the Purge Port Plug

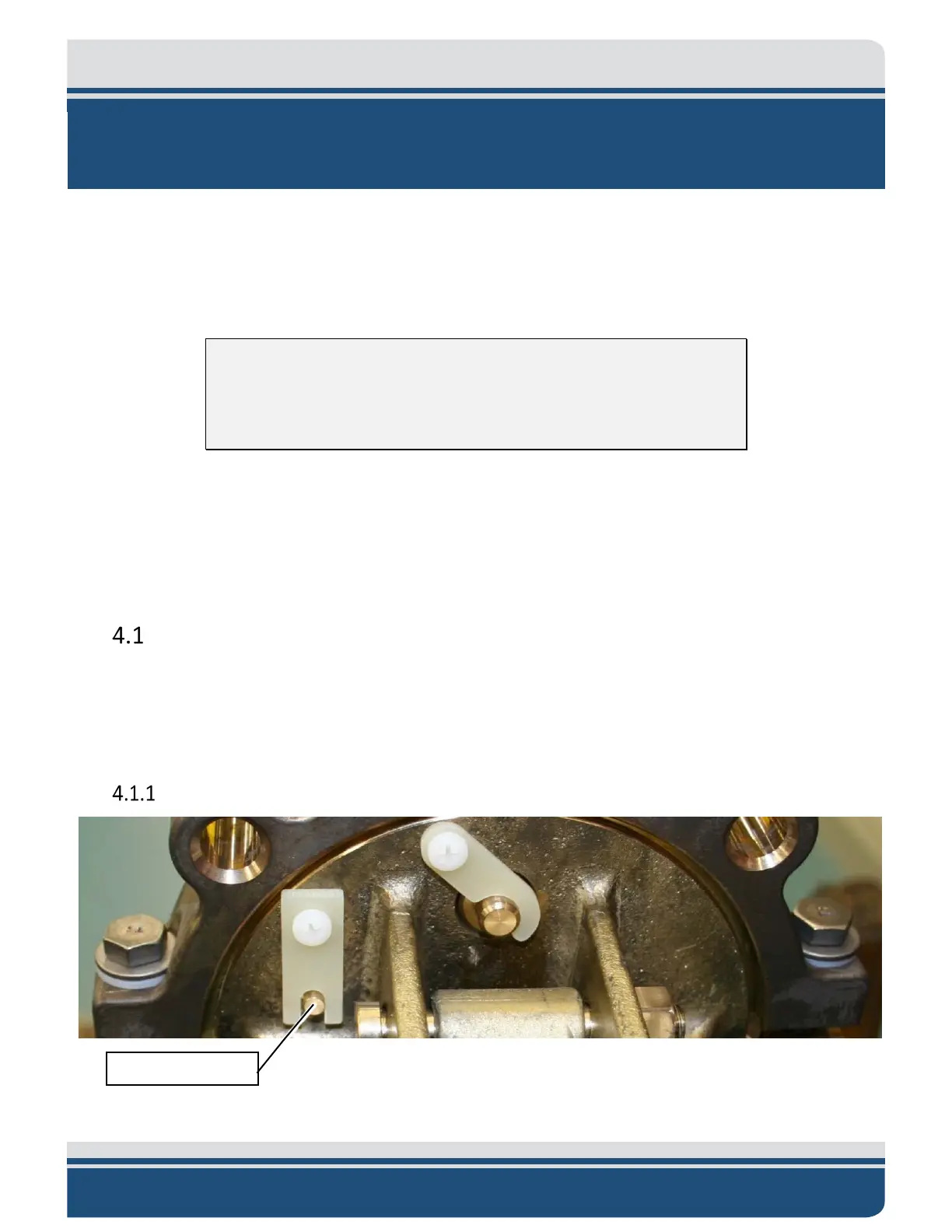

Figure 4-1: The Purge Port Plug
