Edgetech 8242XS - Figure 4-17: Using the Wrench on the Top Bolt, at the Bottom, Tighten the First Nut; Figure 4-18: Top End Cap Completed Assembly

4-11
NOTE: There are two different bolt lengths, the shorter bolt goes into the
Top of the cage.
4. Replace the third titanium bolt on the top cage-clamp assembly. Replace with one nut at a time.
a. It is impossible to use a wrench between the cage, so this is the only time to put the
wrench on the bolt instead of the nuts.

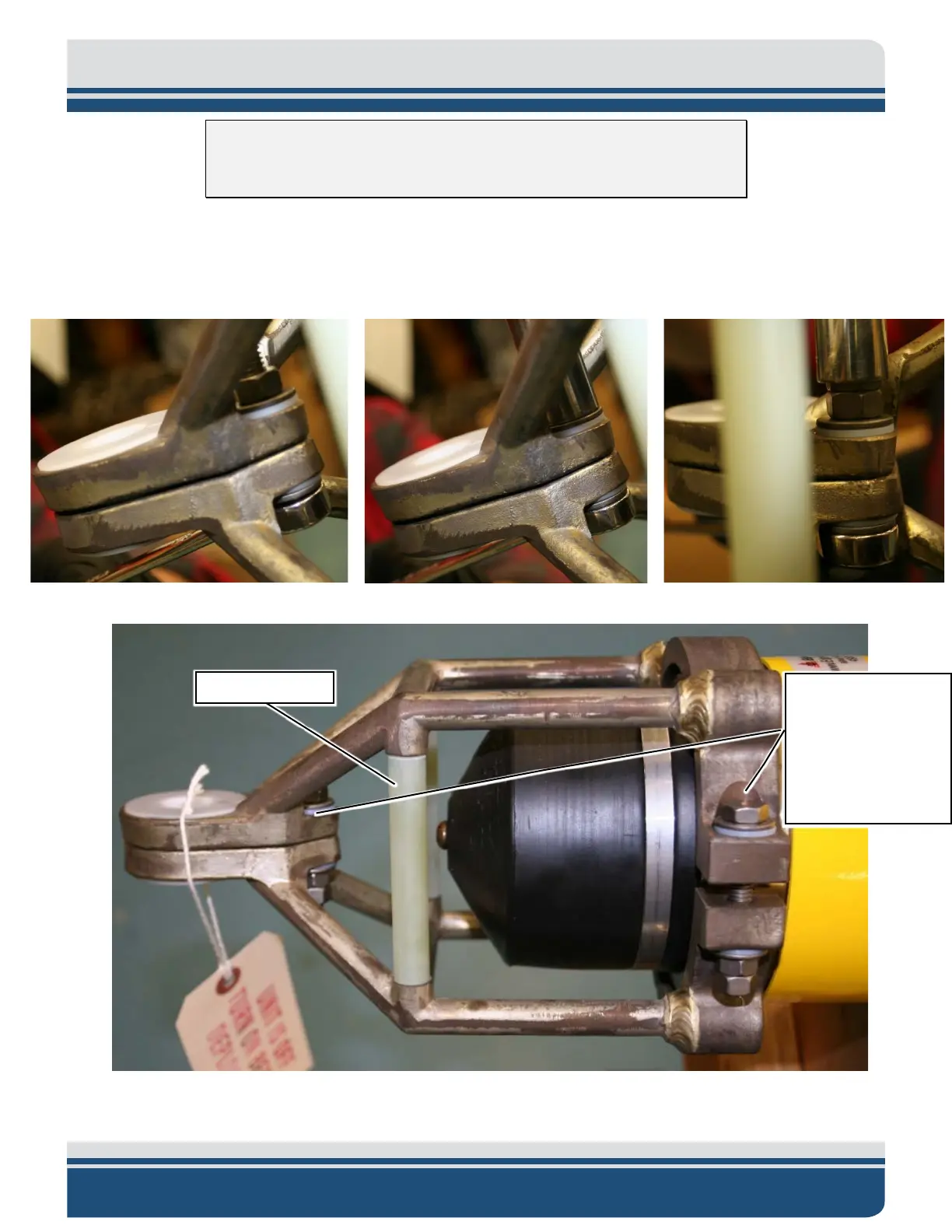

Figure 4-17: Using the Wrench on the top bolt, at the bottom, tighten the first nut.
Figure 4-18: Top End Cap Completed Assembly
Spreaders (2)
Three sets of 5/16”
titanium hardware
with nylon
shoulder washers
between titanium
and bronze.
Three sets of 5/16”
titanium hardware
with nylon
shoulder washers
between titanium
and bronze.
