4-7
Closing the Transducer End
Before closing the Transducer End, inspect the O-rings and O-ring mating surfaces and service if needed,
refer to O-R
ING SERVICE AND INSPECTION.
CAUTION!
Ensure the 4-pin battery pack cable connector alignment tabs are
properly aligned with the power connector on the electronics assembly
before pressing into place. If misaligned, damage to the electronics may
occur, rendering the Release unusable until repaired.
1. Gently guide the Transducer End cap into the Housing, taking care not to pinch the Transducer
Cable and Battery Cable. As the O-ring enters the Housing, firm but gentle pressure must be
applied to seat the end cap fully against the Housing as shown in
FIGURE 4-11.

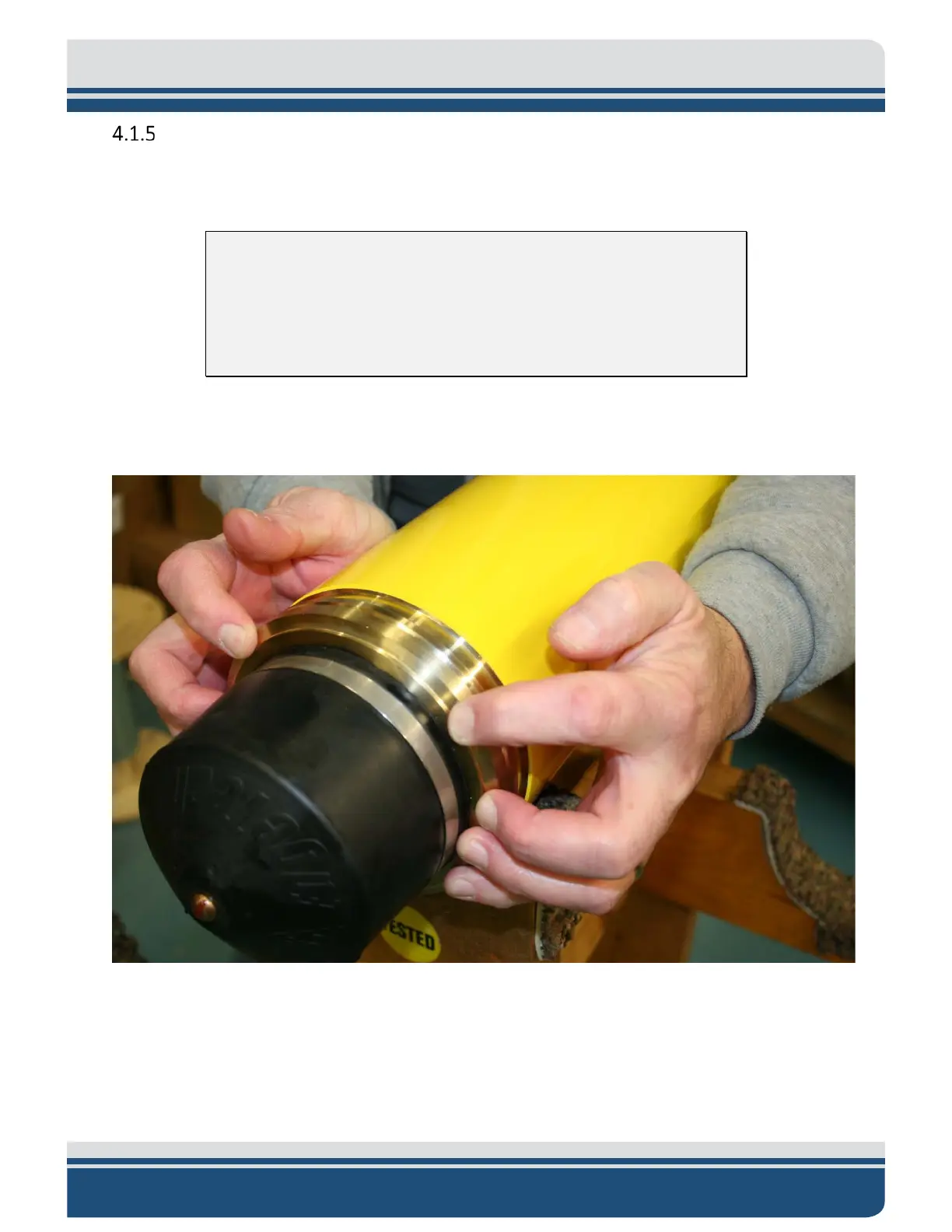

Figure 4-11: Apply Pressure to the Base of the Transducer End to Fully Seat it into the Housing
