Removing the Transducer End
CAUTION!
Take care when removing the Transducer End Cap from the Housing, as
the Transducer is plugged into the Electronics Assembly.
1. Grip the Transducer by its base close to the metal end cap, and pull the Transducer End Cap from
the Housing, taking care not to squeeze or deform the Transducer.

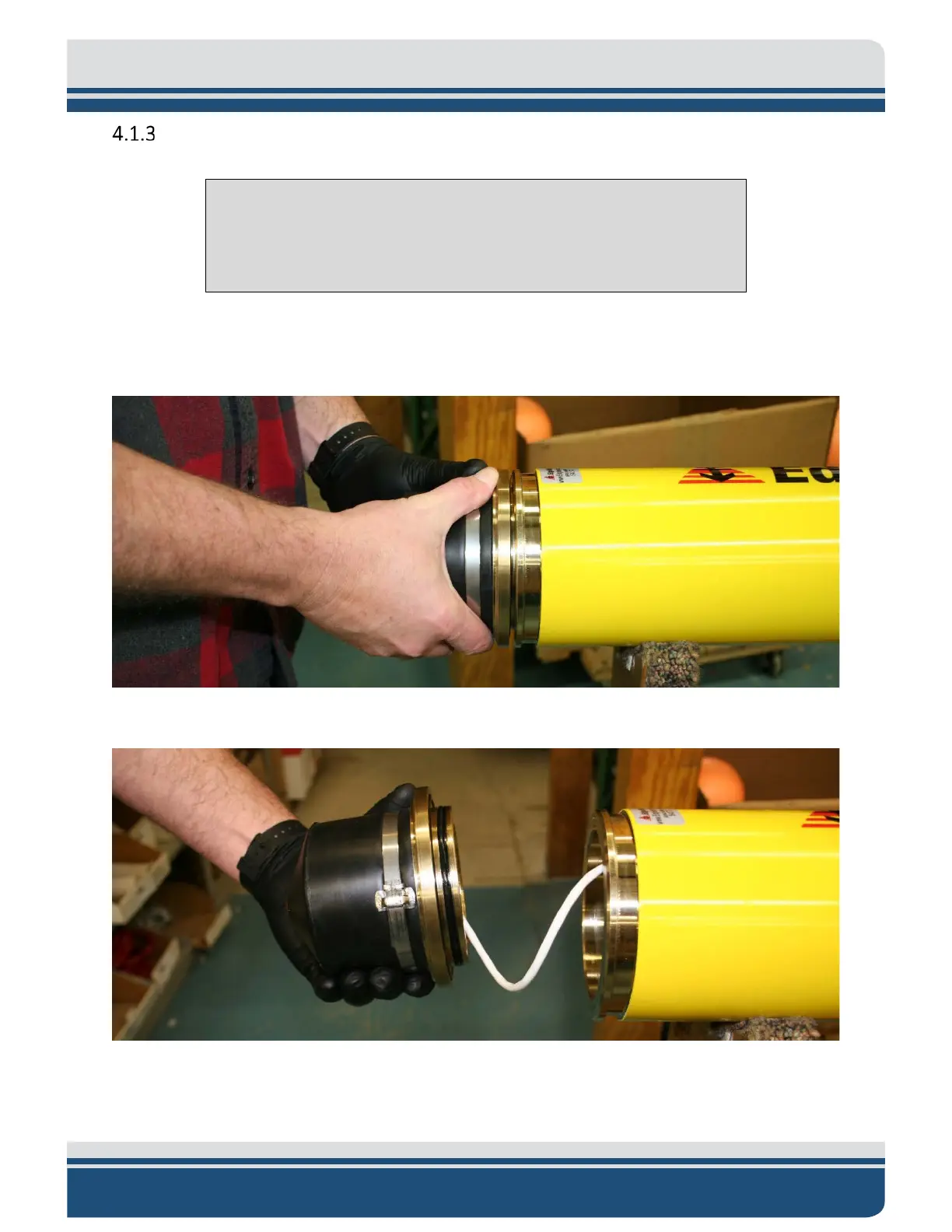

Figure 4-7: Removing the Transducer End Cap
Figure 4-8: The Removed Transducer End Cap
