SECTION 5: MAINTENANCE 5-2
To Open the 8242XS
Should the need arise for service or replacement of parts, the following instructions detail complete
disassembly and reassembly of the Unit. These instructions will build upon the instructions in section
4.1,
as they follow some of the same initial steps, but are more in depth.
NOTE: It is essential that the nickel-aluminum bronze material be isolated
from any dissimilar metal. Because of this, the instrument is supplied with
a disposable anchor link with nylon insulating bushings. This link or its
equivalent must be used to prevent harmful galvanic corrosion between
dissimilar metals.
Tools
• ½” Socket
• ½” Wrench
• Soft Mallet
8242XS Disassembly
To Disassemble the 8242XS:
1. Remove the Purge Port Plug, referring to sub-section
4.1.1.
2. Remove the Lifting Support, referring to sub-section 4.1.2.
3. Remove the Transducer End, referring to sub-section 4.1.3.

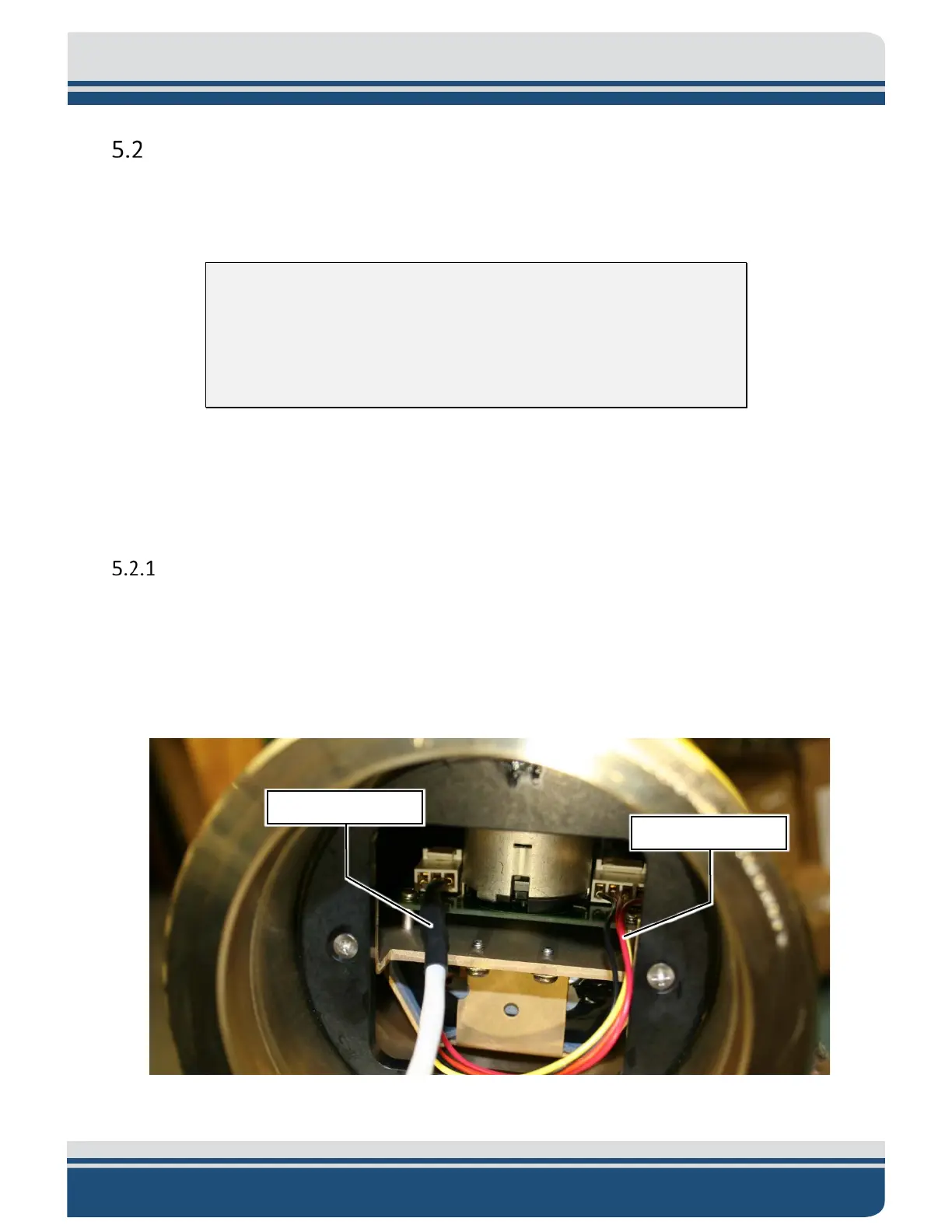

Figure 5-1: The Plugged in Battery and Transducers Cables
