Edimax EW-7416APn v2 User Manual

32
or click “APPLY” to restart the system and make the changes take effect.

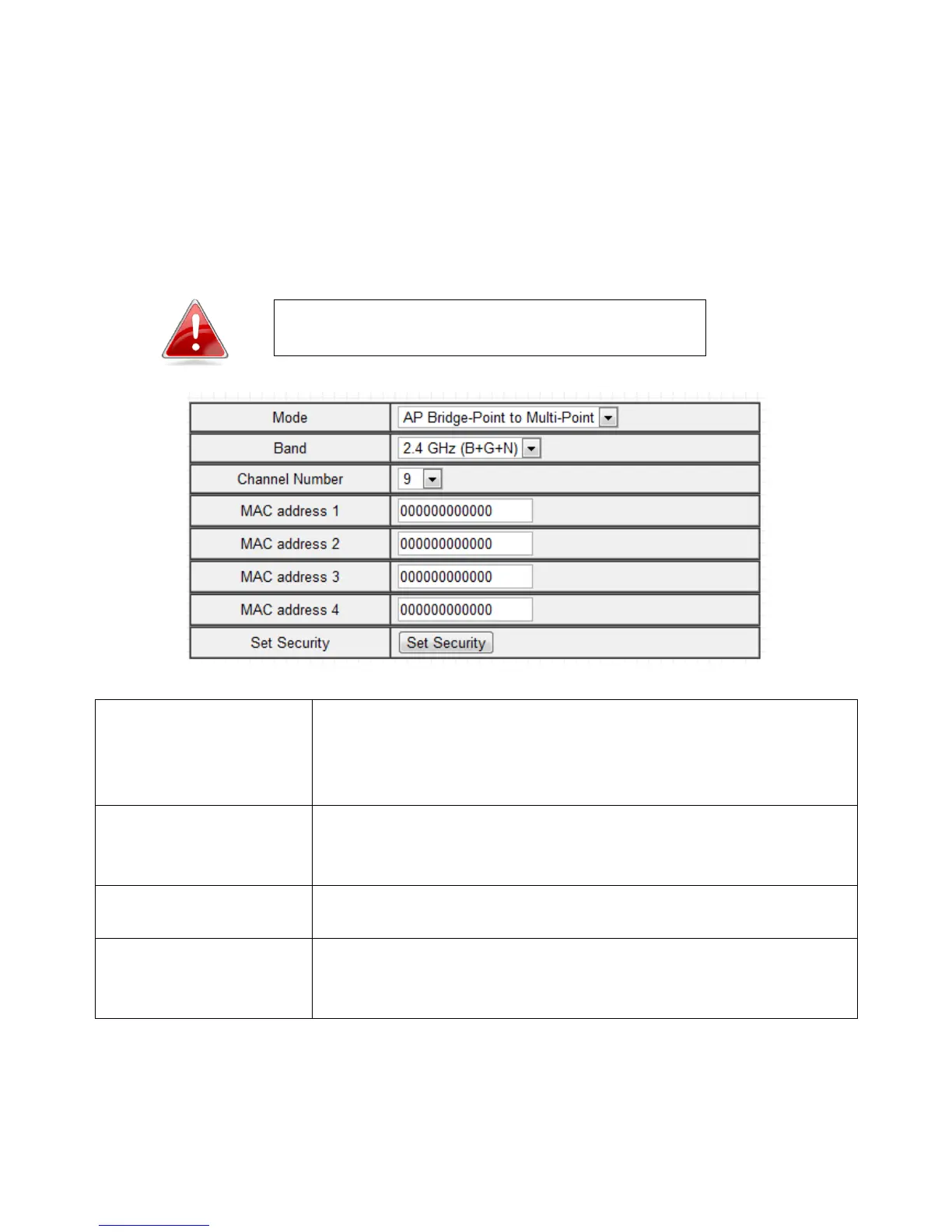

III-2-4. AP Bridge-Point to Multi-Point Mode
In AP bridge-point to multi-point mode the access point can connect to up to
four other wireless access points also using the same mode, and all connected
Ethernet clients of all access points will be connected together. This allows
several physically isolated networks to communicate with each other.
Note: The access point will not accept regular
wireless clients in this mode.
Band
Select the wireless band you wish to use for the access
point: 802.11b, 802.11g, 802.11n or selected
combinations of each. Only access points of the same
band or bands as you select will be able to connect.
Channel Number
Select a channel number for the access point. The
channel number must be the same as the other access
points you wish to connect to.
MAC address 1-4
Enter the MAC addresses of the wireless access points
you wish to connect to.
Set Security
Click “Set Security” to select an encryption mode for
this wireless link. A new window with security options
will appear.
Click “APPLY” to save changes. The following message will appear:

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
