Edimax EW-7416APn v2 User Manual

33

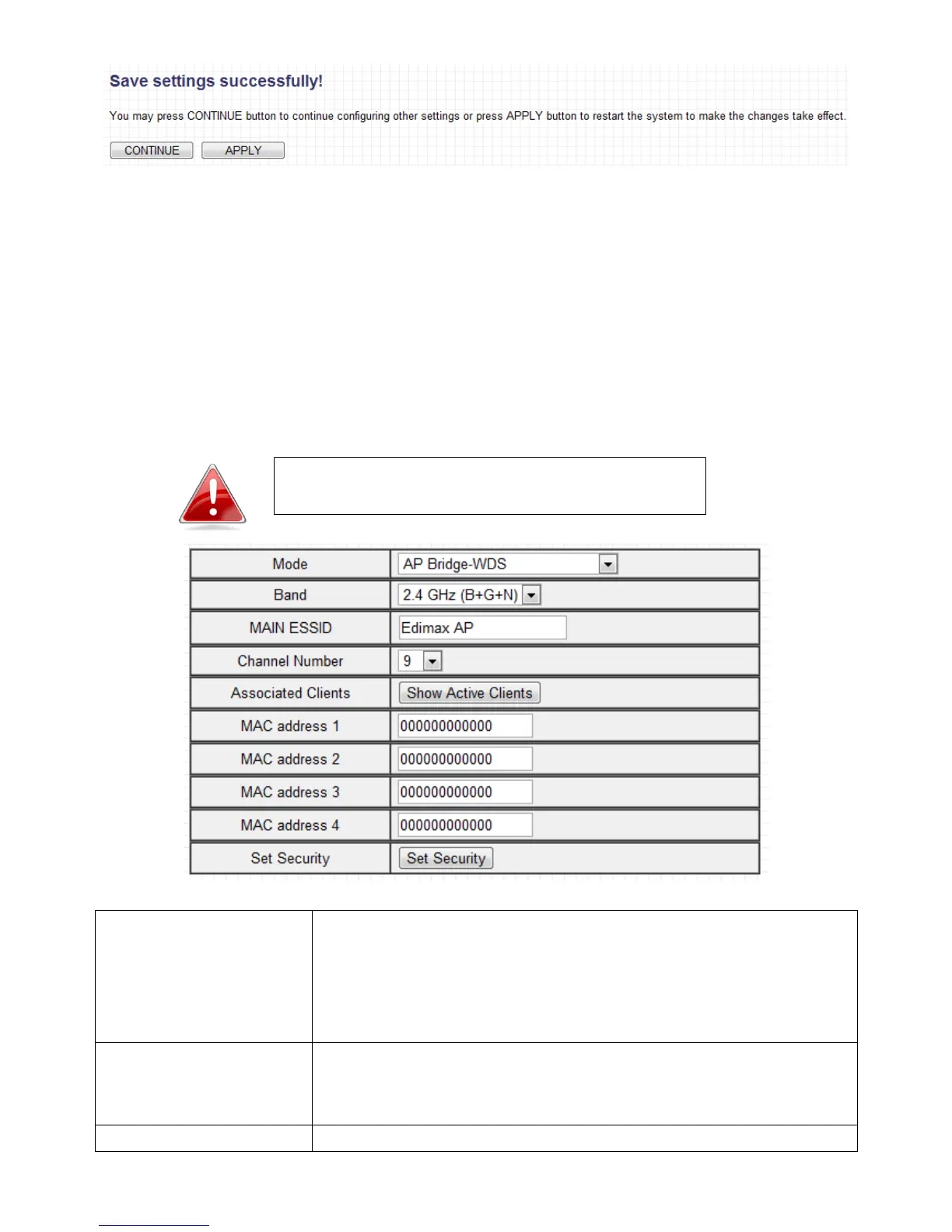

Click “CONTINUE” to save the changes and continue configuring other settings,
or click “APPLY” to restart the system and make the changes take effect.
III-2-5. AP Bridge-WDS
In this mode, the access point can connect to up to four other wireless access
points also using the same mode, and all connected Ethernet clients of all
access points will be connected together. This allows several physically isolated
networks to communicate with each other.
Note: The access point will still be able to
accept regular wireless clients in this mode.
Band
Select the wireless band you wish to use for the access
point: 802.11b, 802.11g, 802.11n or selected
combinations of each. Only wireless devices of the
same band or bands as you select will be able to
connect.
MAIN ESSID
Specify an ESSID (the name used to identify the access
point) of up to up to 32 alphanumerical characters.
Please note that the ESSID is case sensitive.
Channel Number
Select a channel number for the access point. The

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
