Technical data
M561-00-880 Issue C

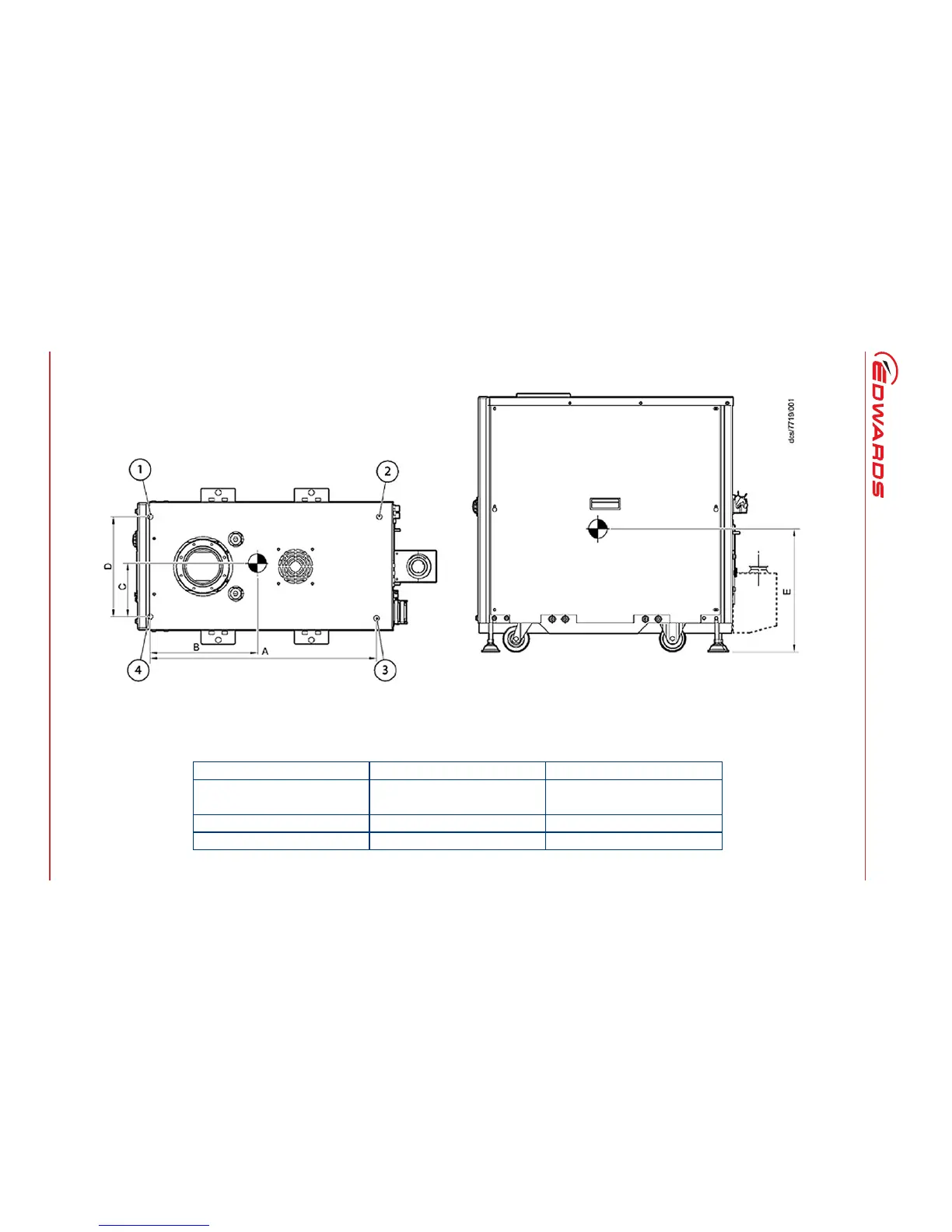

Figure 5 - Centre of gravity and levelling foot loads
2.4 Nitrogen purge data
Note: pXH systems do not have a nitrogen purge facility.
Table 5 - Nitrogen purge data for iXH and iXL systems
Characteristics Rating Units
Nitrogen supply pressure range 2.5-6.9 bar gauge
36 - 100 psi gauge
Nitrogen supply quality To ISO 8573
Nitrogen inlet connection 1/4 inch tube fitting
