Efka dc 1500 - 10.8 Positions

EFKA FP220A5911
43

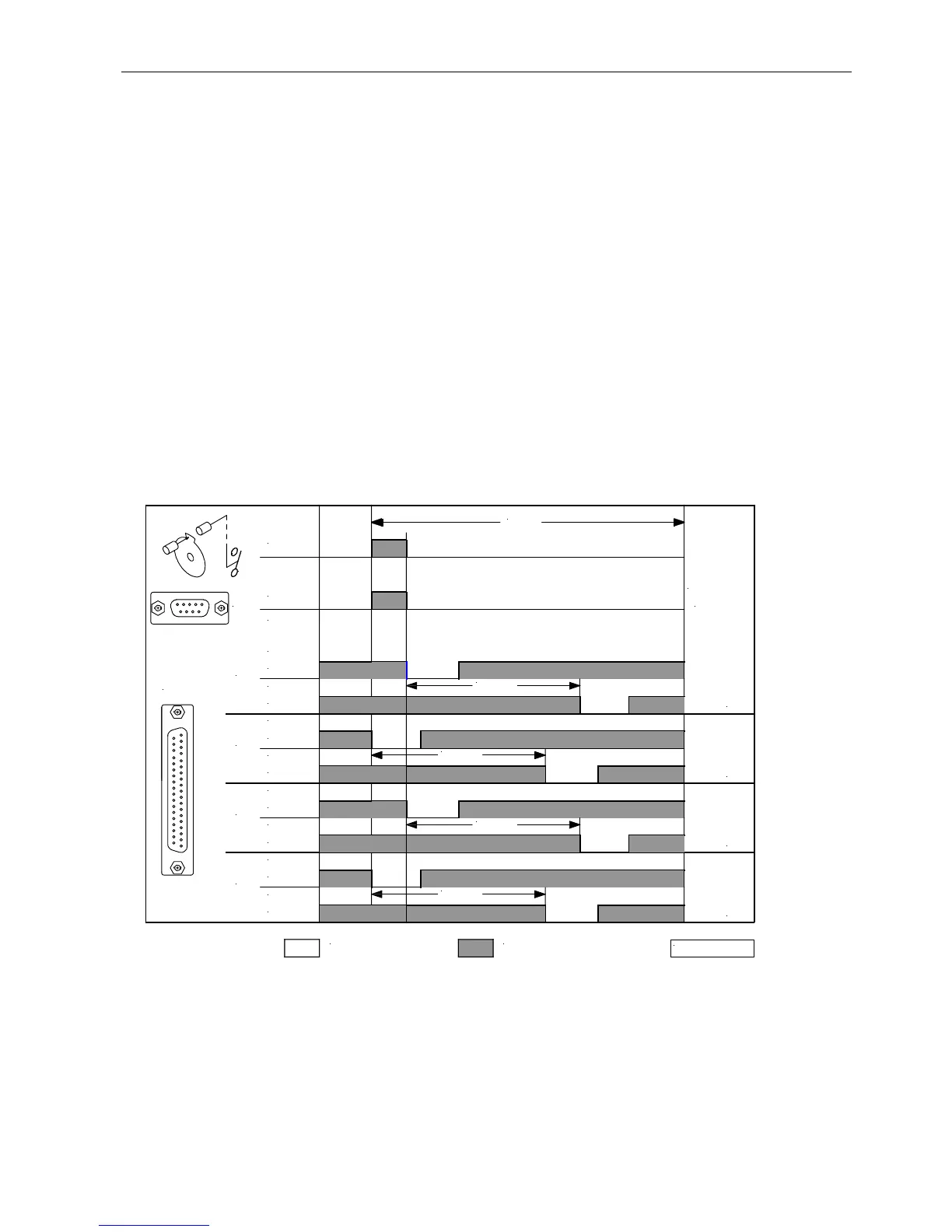

Connection of a sensor e. g. light barrier or proximity switch to socket B18/7. The following settings are possible using
parameter 270:
Parameter 270 = 1 - Setting the sensor to position 2.
- Position 1 is set according to the angular degree setting by means of parameter 271.
- Start measuring from trailing edge position 2.
- 0V at input B18/7 (inside of the window)
- +5V at input B18/7 (outside of the window)
Parameter 270 = 2 - Setting the sensor to position 2.
- Position 1 is set according to the angular degree setting by means of parameter 271.
- Start measuring from leading edge position 2.
- Input and output level as with setting “1“
Parameter 270 = 3 - Setting the sensor to position 1.
- Position 2 is set according to the angular degree setting by means of parameter 271.
- Start measuring from trailing edge position 1.
- Input and output level as with setting “1“
Parameter 270 = 4 - Setting the sensor to position 1.
- Position 2 is set according to the angular degree setting by means of parameter 271.
- Start measuring from leading edge position 1.
- Input and output level as with setting “1“
OUT (position window) = npn transistor (emitter to 0V) is conductive.
Width of position window cannot be adjusted.
= 0V
OUT
OUT
OUT
OUT
ST2
IN
POS1
ST2/20
POS2
POS2
ST2/20
POS1
ST2/21
ST2/21
POS1
ST2/20
POS1
ST2/21
POS2
ST2/20
POS
B 18/7
POS2
ST2/21
SEN
= high
0256/SEN- 2
Pa 271
Pa 271
Pa 271
Pa 271
360°
270 = 1270 = 3270 = 4 270 = 2
+5V
0V
