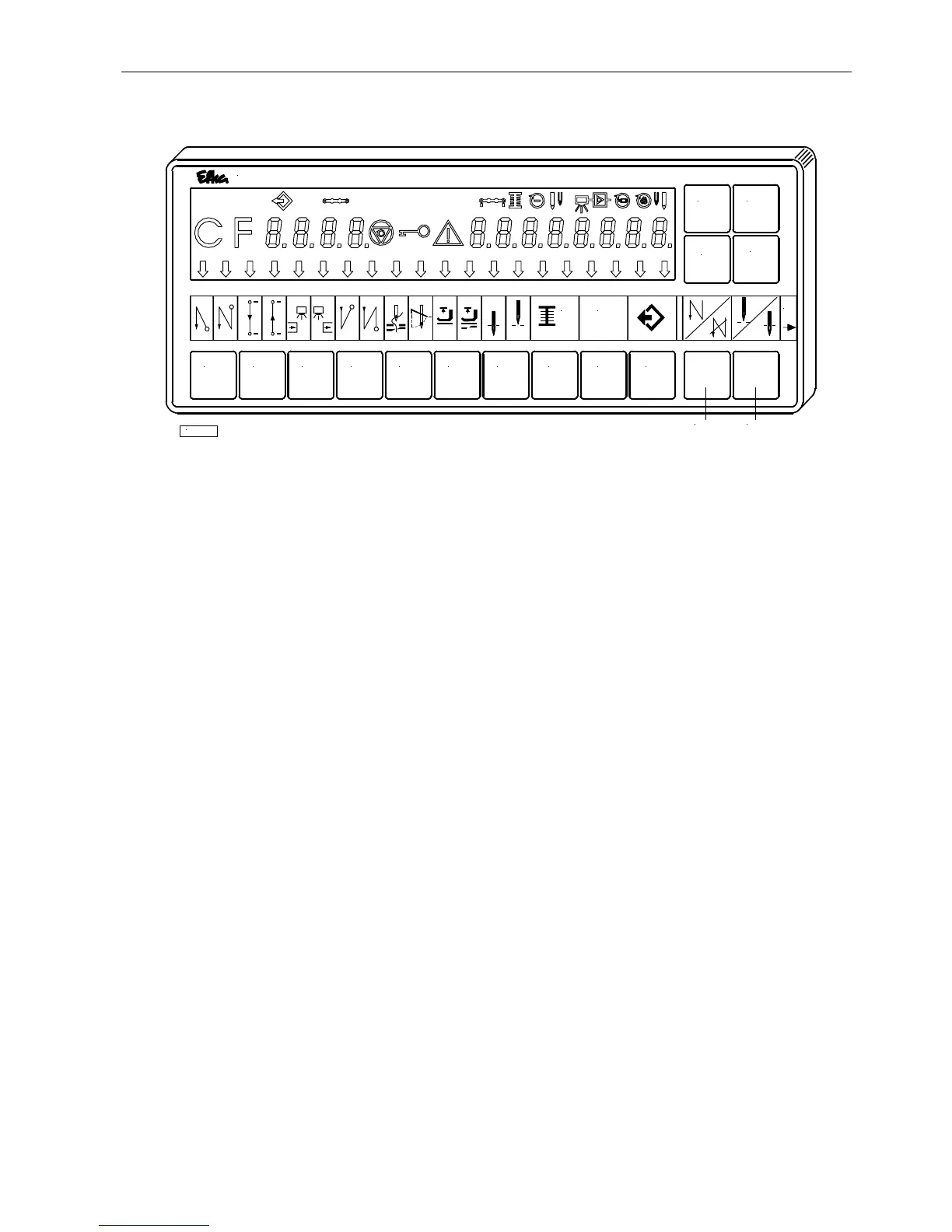

15 Operating Elements of the V820 Control Panel
The V820 control panel is supplied with the no. 1 slide-in strip above the keys. For different functions the strip can be
replaced with another one supplied with the control panel. Set parameter 292 in this case. See also V810 / V820 instruction
manual!
Function Assignment to the Keys
P key = Call or exit of programming mode
E key = Enter key for modifications in the programming mode
+ key = Increase of the value indicated in the programming mode
- key = Decrease of the value indicated in the programming mode
1 key = Start backtack SINGLE / DOUBLE / OFF
2 key = Stitch counting seam FORWARD / BACKWARD / OFF
3 key = Light barrier function COVERED-UNCOVERED / UNCOVERED-COVERED / OFF
4 key = End backtack SINGLE / DOUBLE / OFF
5 key = THREAD TRIMMER / THREAD TRIMMER + THREAD WIPER / OFF
6 key = Automatic sewing foot lift after thread trimming ON / OFF
Automatic sewing foot lift at stop in the seam ON / OFF
7 key = Basic position needle down (POSITION 1) / needle up (POSITION 2)
8 key = Bobbin thread monitor ON / OFF
9 key = Function key - programmable
0 key = Teach-in / execution of 40 possible seam sections
A key = Key for backtack suppression/recall
(Different input functions can be assigned to the A key using parameter 293)
B key = Key for needle up/down or shift key in the programming mode
(Different input functions can be assigned to the B key using parameter 294)
Special Key Assignment for HIT
After having pressed the 1, 2, 3, 4 or 9 key, the following can be varied by means of the +/- keys:
1 key = Number of stitches of the selected start backtack
2 key = Number of stitches of the seam with stitch counting
3 key = Number of light barrier compensating stitches
4 key = Number of stitches of the selected end backtack
9 key = Number of stitches or On/Off of the programmed function
