EFKA FP220A5911
83
G1
G2
KL2462
P
E
Function with or without control panel Parameter
Speed stage graduation (nSt) 119
The pedal characteristics (speed change from stage to stage) can be varied.
Possible characteristic curves: - linear
- progressive
- highly progressive
11.44 Audible Signal
Function with control panel Parameter
Audible signal On/Off (AkS) 127
An audible signal which sounds in the following cases can be enabled by means of parameter 127:
!
When the bobbin thread monitor is On, after completion of the stitch count.
! When the machine run blockage is On.
12 Signal Test
Function with or without control panel Parameter
Input and output test (Sr4) 173
Function test of external inputs and transistor power outputs with connected actuators (e.g. solenoids and solenoid valves).

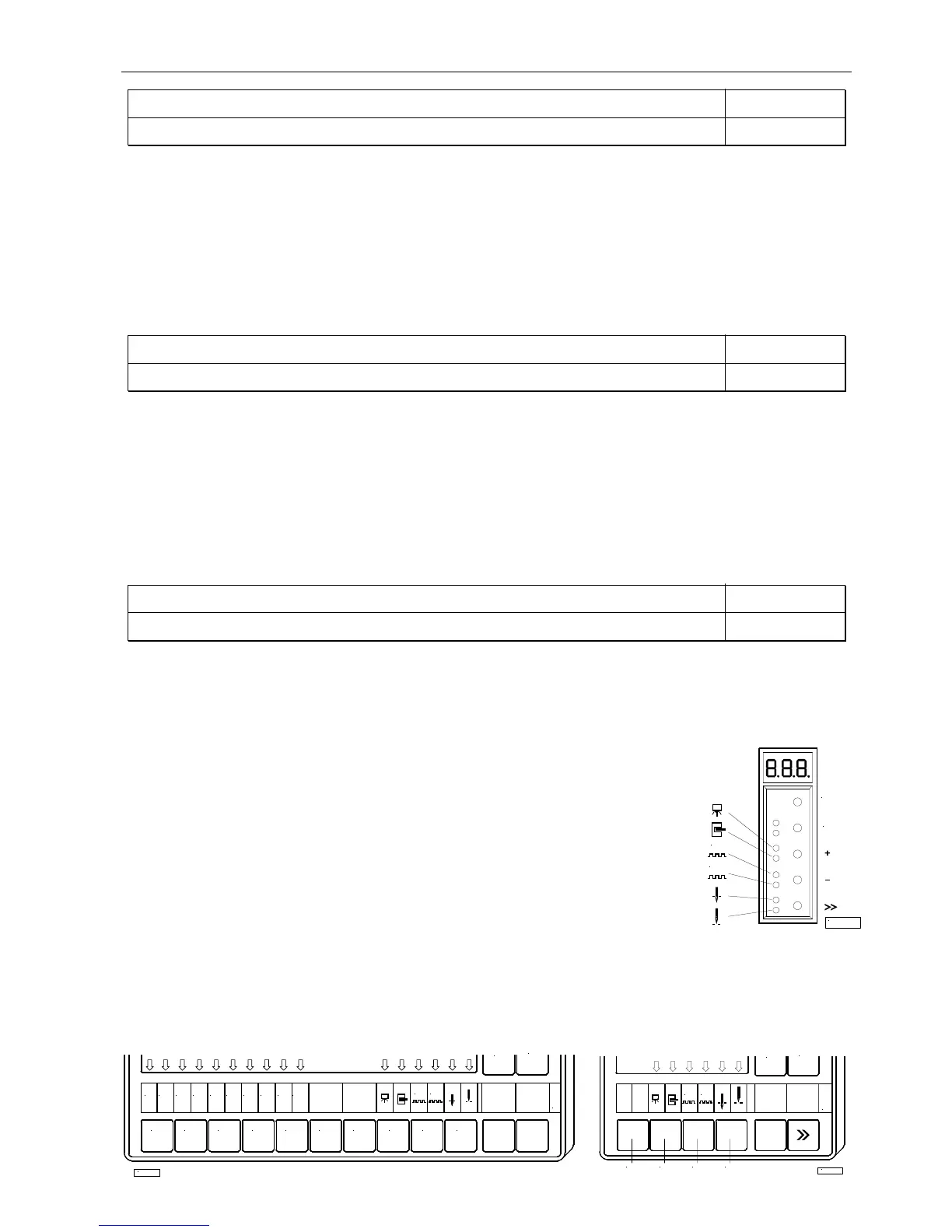

12.1 Signal Test Using the Incorporated Control Panel or the V810/V820
Input Test:
! Select parameter 173.
! Control: Functions of signals “light barrier, sensor, generator impulse 1 and 2, positions
1 and 2” can be checked directly and indicated by means of LEDs 3...8. Inputs in1...in10
are displayed individually. Several switches and/or keys must not be actuated at the same
time.
! V810 control panel: The above signals are indicated by means of arrows above the 2...4
keys. Inputs in1...in10 appear individually on the LC display. Several switches and/or
keys must not be actuated at the same time (see control).
!
V820 control panel: Inputs in1...in10 and signals “light barrier, sensor, generator impulse 1 and 2, positions 1 and 2”
are displayed by means of arrows above the 1...10 keys. Several inputs can be actuated and displayed at the same time.
! If several keys and/or switches are actuated at the same time, e.g. in3, in5, in6, in7, the least significant input will be
displayed, e.g. in3.
V820 Control Panel V810 Control Panel
G1
G2
TEST
+
-
1 2 3 4
KL2461
IN3
1
IN2IN1
42 3 5 6
IN8IN7IN6IN5IN4 IN10IN9
987 0
G2
G1
+
TEST
-
KL2460
