Appendix B – Electrical connections
The following describes the main hardware features such connection of power, connection of
load cells, various connectors and jumpers as well as internal indicators (LEDs).

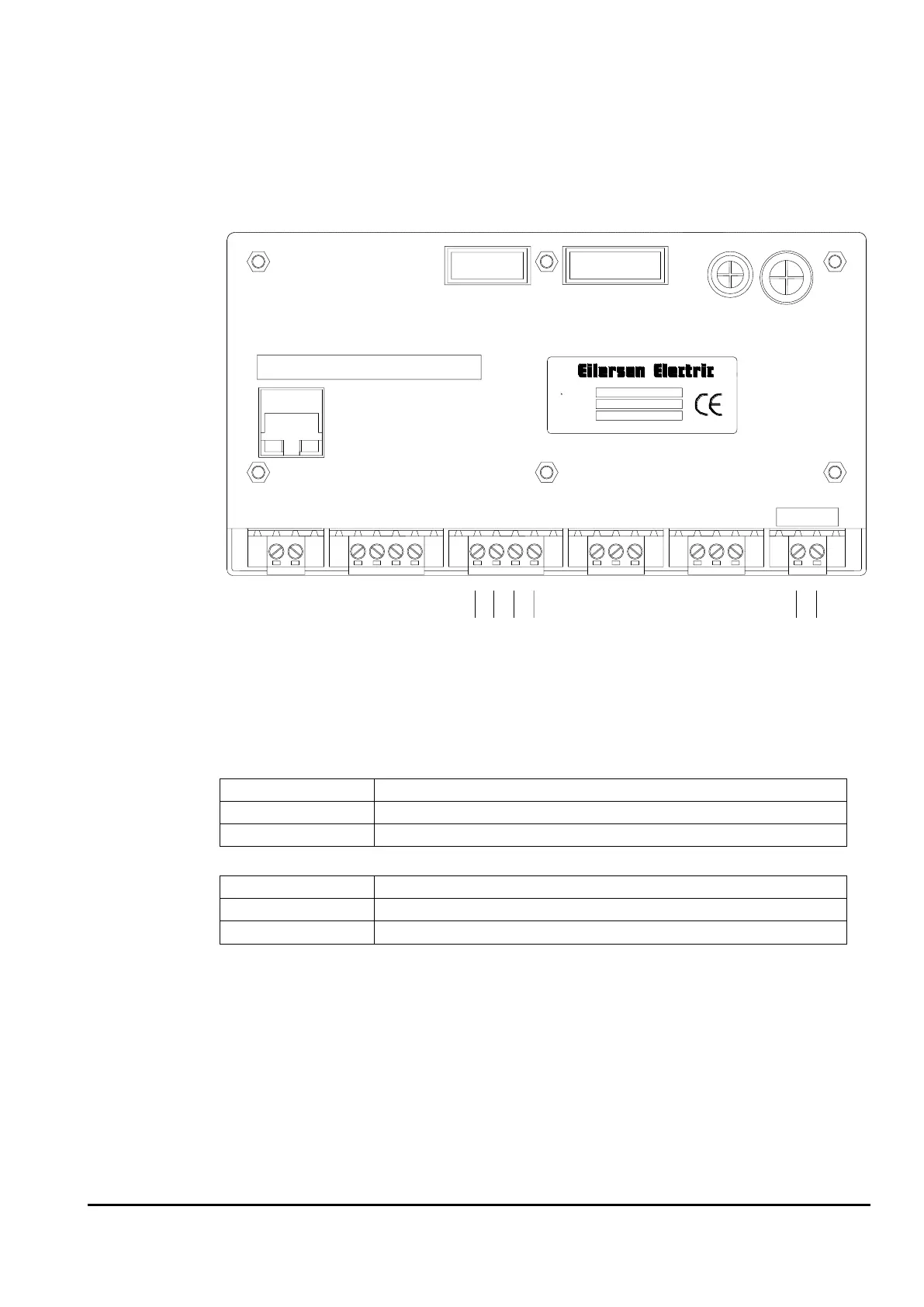

Rear view
Load Cells
GND
J7
1 2
J1
AB
+24
VDC
31 2 4
J2
21 3 4
J3
MAC addr: 00-50-C2-C5-__-__
J11
Power Supply
1 2 3
J4
1 2 3
J5
+24
VDC
GND
1 2
24 VDC
J6
RANGE
No.
TYPE 5024G
J12
Power Connection
The 5024 system is powered by +24VDC which is connected to either J1 or J6 (J1 and J6 are
internally short-circuited). This powers the entire system including the connected load cells.
J1 pin
Function
1
+24V
2
GND
J6 pin
Function
1
+24V
2
GND
