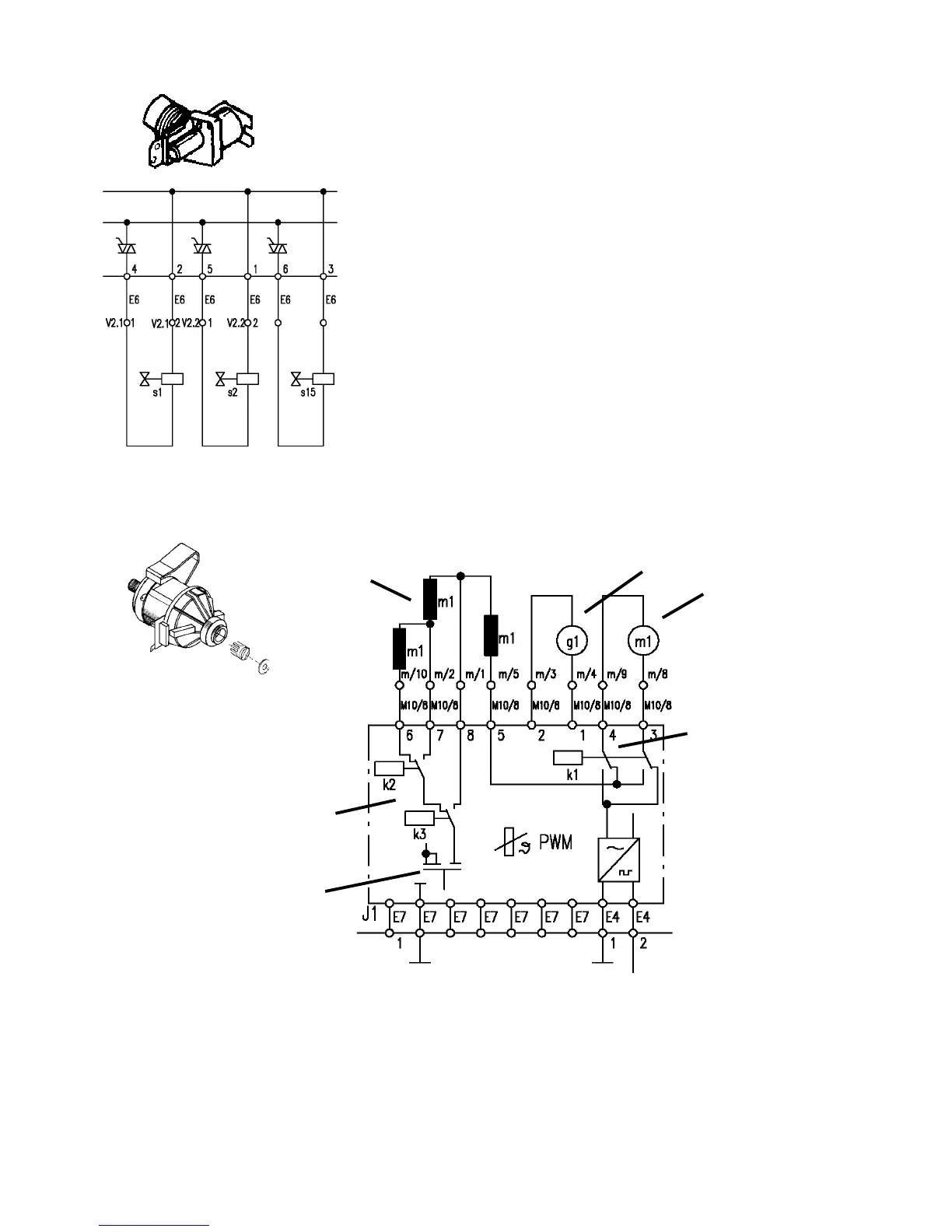

10.7 The motor
10.6 The inlet valves
110 536 100 FHP 230V; DC 223W +/-8% 1,45W +/-8% 1,00W +/-8% 2,50W +/-8%
110 536 400 FHP 230V; DC 223W +/-8% 1,45W +/-8% 2,50W +/-8%
(3-4) (8-9) (5-1) (5-10)
Article number Connection Tacho Rotor Stator Stator complete
Tachogenerator
MOS-FET
transistor
Relay for direction of
movement
Stator
Rotor
Relay
tapping field
mainboard
Inlet valve:
Connection: 220/240V +6-15%; 50 Hz;
Pressure: 0,6 - 10 bar
Flowrate: 8 L/min
