Electrolux EWM 3000 - Door lock

- 52 -
599 51 13-50 EN
DGS-TDS-N 11.2004 C.D. © Electrolux
10.1.3 Bellows
- The door lock is screwed to the front plate with 2 screws. Unscrew them (Fig. 8).
- The front plate is screwed to the casing with 4 screws at the top and at the bottom.
In order to get access to the lower 2 screws you have to remove the base panel.
For this purpose untighten the screws behind the pump cover (Fig. 9).
The base panel is locked in on the left side of the appliance.
- Now unscrew the front panel as shown in the figures (Fig. 10, Fig. 11, Fig. 12).
- Pulling the bellows untightens it from the cramped part of the tub.

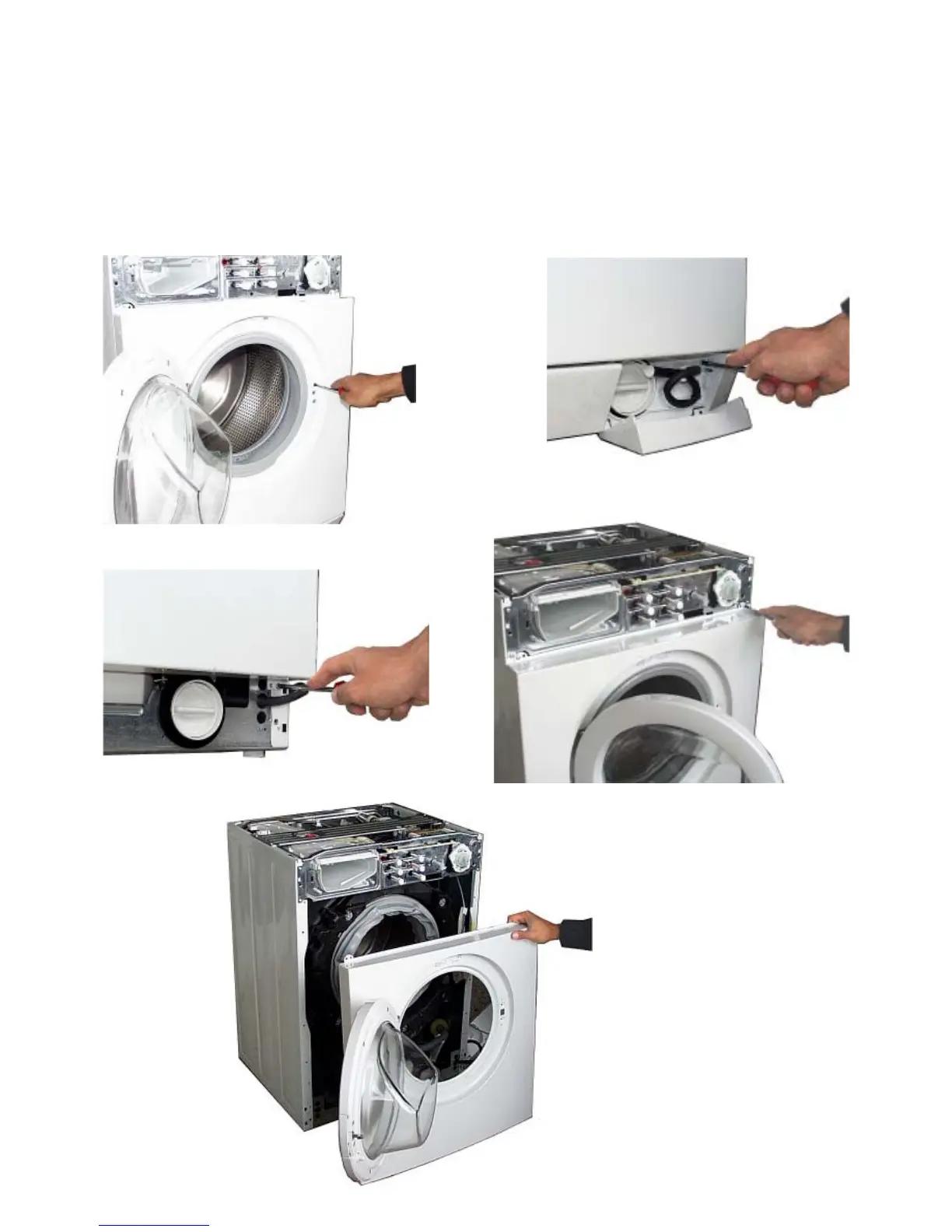

Abb.: 8
Abb.: 9
Abb.: 10
Abb.: 11
Abb.: 12
