Electrolux EWM 3000 - Access from the rear side of the appliance; Rear plate; Assembling position of motor, motor electronic DC, heating element, NTC, belt and pulley

- 55 -
599 51 13-50 EN
DGS-TDS-N 11.2004 C.D. © Electrolux

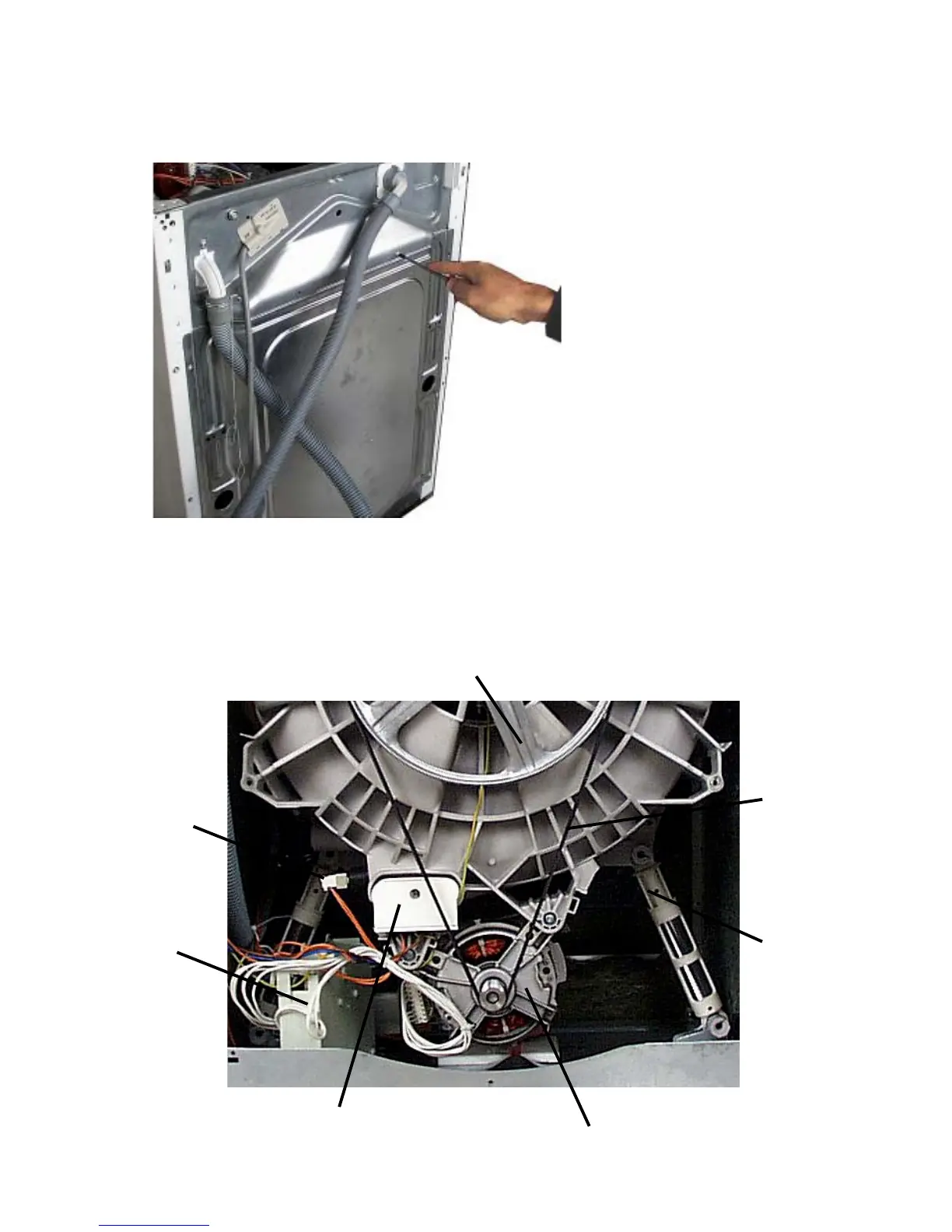

Abb.: 17
10.2 Access from the rear side of the appliance
10.2.1 Rear plate
The rear plate is screwed to the casing with sheet metal screws (Fig. 17)
- In order to get access to motor, heating element, shock absorber, NTC, belt and pulley,
you have to remove the rear plate.
10.2.2 Assembling position of motor, motor electronic DC,heating element, shock absorber,
NTC, belt and pulley
NTC-Sensor
Heating
element
Motor
Shock
absorber
Pulley
Belt
Abb.: 18
Motor
electronic DC
