10. Service - Instructions
10.1 Access from the front side of the appliance
10.1.1 Worktop

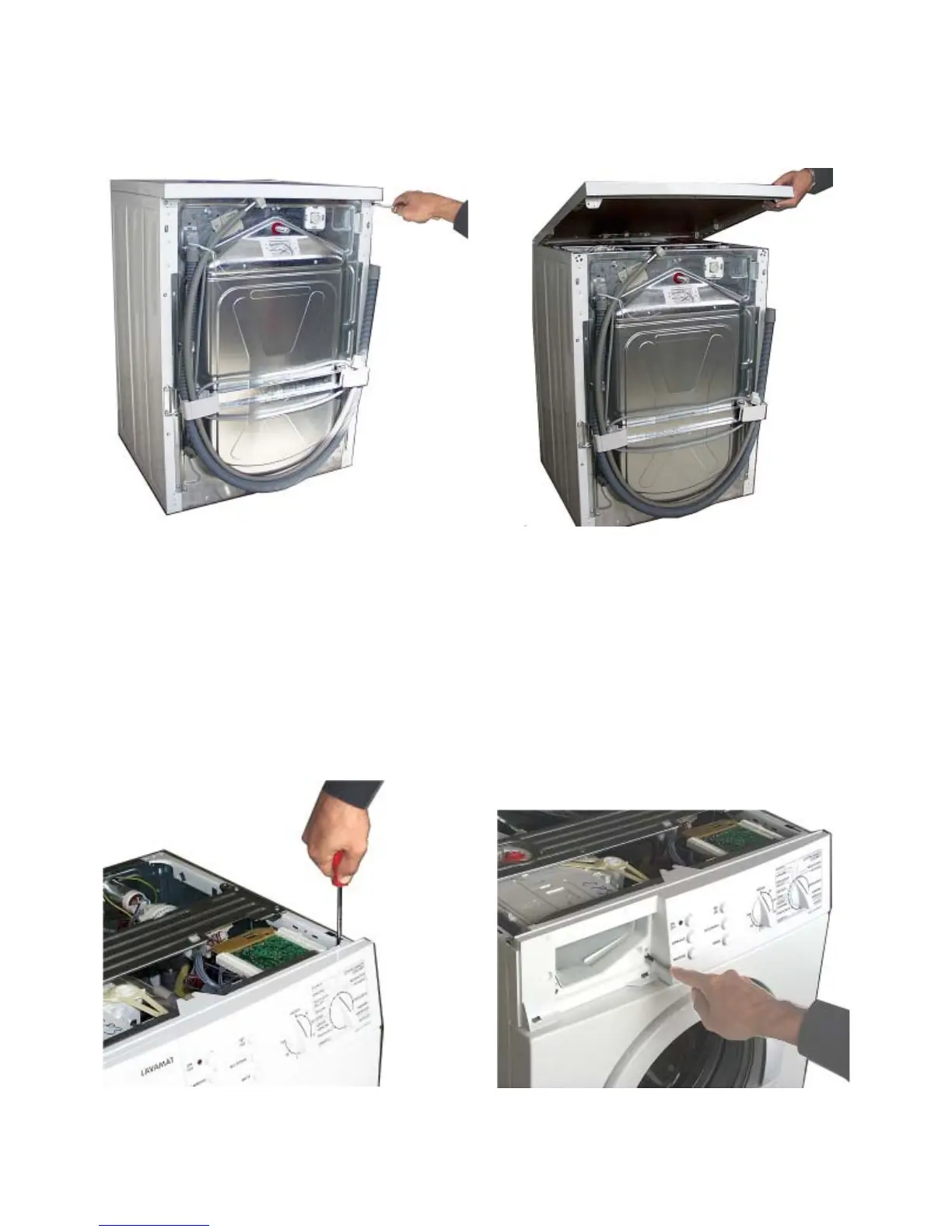

The worktop is tightened to the rear side of the appliance by 2 screws.
Untighten both screws and pull the worktop away to the back.
Abb.: 1 Abb.: 2
10.1.2 Panel, knobs and buttons
In order to remove panel, knobs and buttons you have to remove the worktop. See 10.1.1)
To disassemble the panel you have to remove the 2 screws in the upper area (Fig. 3) and the screws
behind the drawer (Fig. 4).
Abb.: 3 Abb.: 4
