10.3 Access from the top side of the appliance

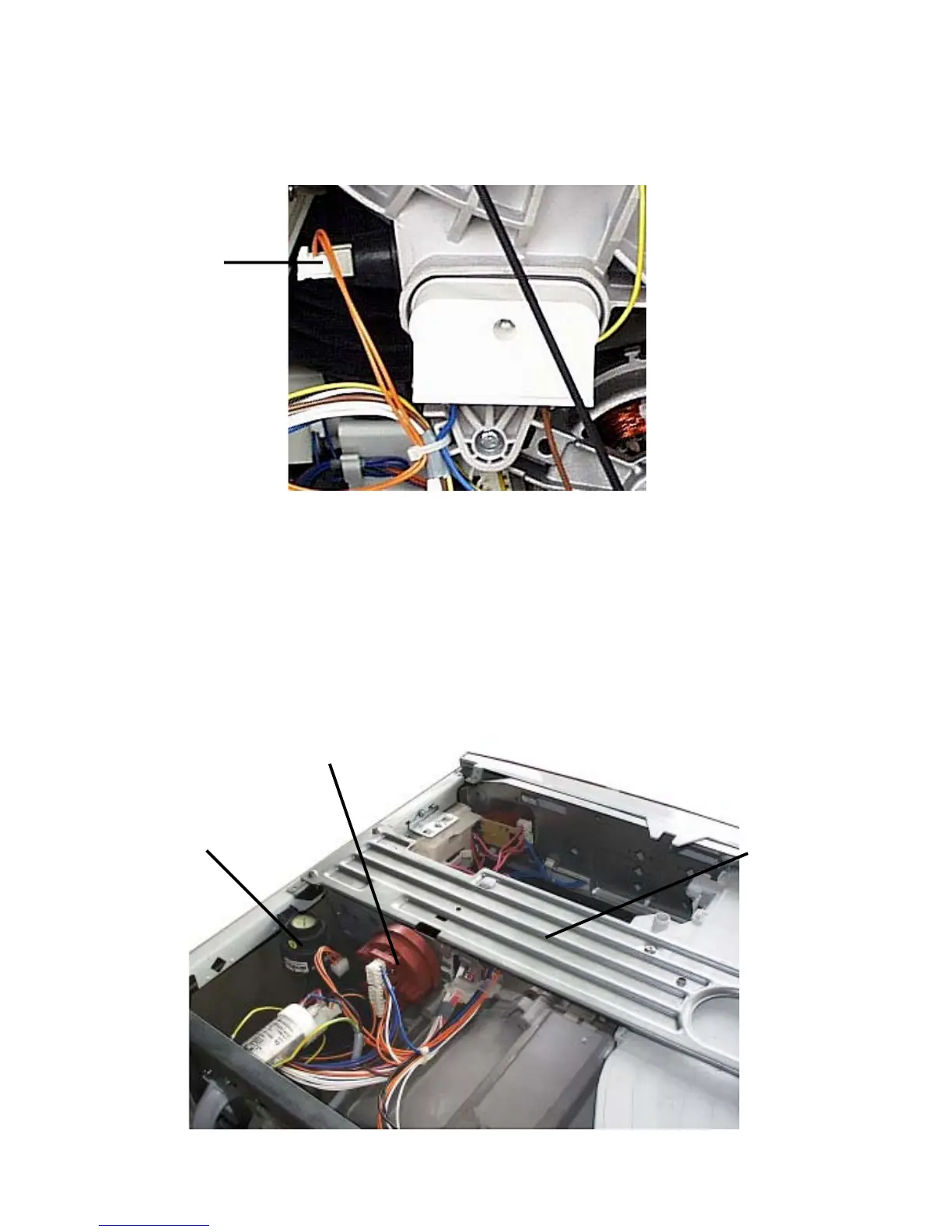

10.3.1 Pressure switches
Abb.: 21
NTC Sensor
10.2.5 NTC sensor
Abb.: 22
Cross bar
Pressure switch
The pressure switches are clipped in the right upper area of the cross bar.
- Remove the worktop; instructions 10.1.1
- Pull off the pressure switch hose.
- Mark the plugs and then pull them off.
- Now snap out the pressure switch from the support (cross bar).
The NTC sensor (temperature sensor) is inserted in the rear side of the tub at the side next to the heating
element.
- Carry out an emergency drain of the appliance
- Take off the rear plate; instructions 10.2.1
- Disconnect the electrical connections
- Pull the NTC sensor out of the sealing
Pressure sensor
