11. Motor controling (Puls width modulation)
t in s
T=1/16000
T
I / U

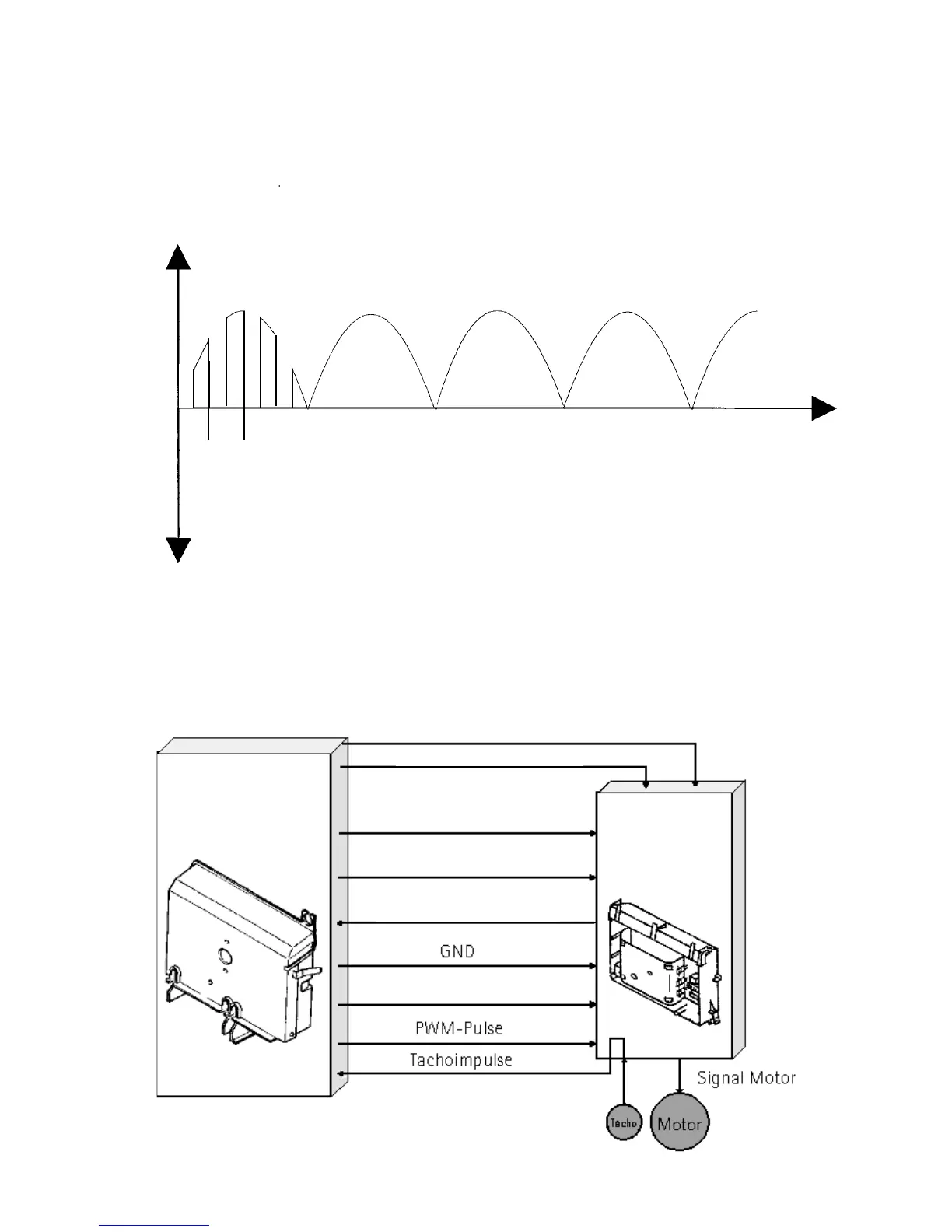

11.1 Signals from main electronic board to the motor electronic
Motor is controled with a pulsing DC, frequency 16kHz.
The revolution is controlled with the on- and off time of the DC.
If the drum revolution is the highest, we have the smallest off time.
Smallest possible off time is 2 %.
Motor electronic
Main electronic
Voltage input
Code for direction of drum
movement and tapping field
PTC temperature check
13V for Relay
