2.4. Special Characteristics
The E-ROBOT+3 Z Reciprocator is conspicuous because of its rugged construction,
a new drive system and an improved Z axis carriage design.
Further characteristics:
• 50 kg load capacity for automatic gun and gun holders
• Quiet running
• High speed, maximum acceleration and braking action
• Safe operation and simple maintenance
• High efficiency due to low energy consumption
• Designed for continuous operation
• TMobile version available
• IP54 protection type
• 6 standard stroke heights available: 1.2 m/1.5 m/1.8 m/2.1 m/2.4 m/2.7 m
• Intermediate and larger sizes available in steps of 300 mm

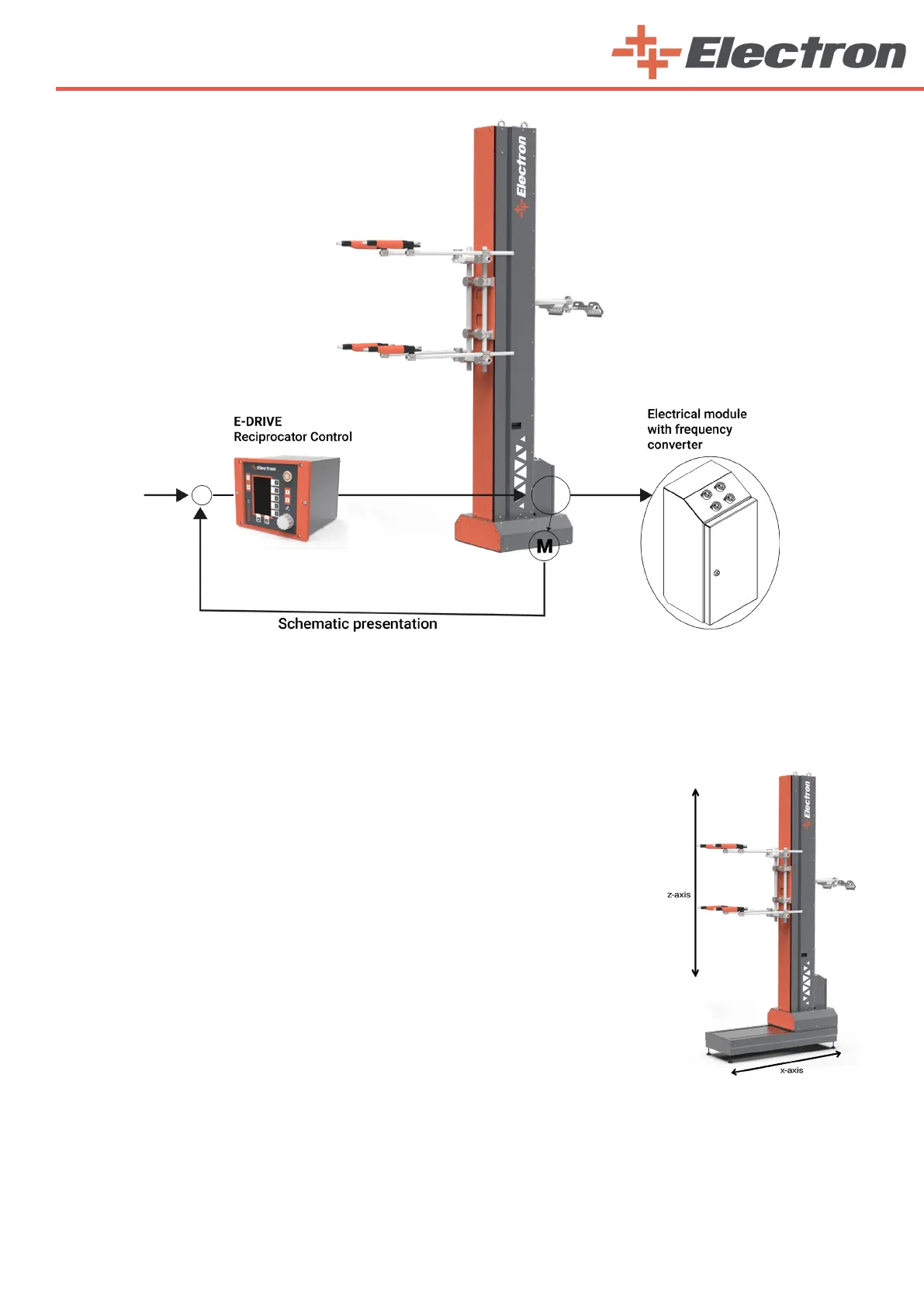

2.5. Expansion with additional axes of motion
The E-ROBOT+3 Z Reciprocator is available, depending on operational
area, in six versions with different standard stroke heights.
2. 6. Reasonably foreseeable misuse
• Operation in rooms with gases (depends on the properties of the powder coating used.)
• Incorrect setting of the mechanical stroke limiters
• Incorrect programming of the upper and lower turning points
• Use in connection with not permissible control units
• Loading the Z carriage with more than 50 kg
• Operation without the proper training
• Operating the reciprocator without the protective fence
