• Place Horızontal Unit Accordıng To The Project Values.

Make sure the base is on a at oor. Use M16 xing plug.

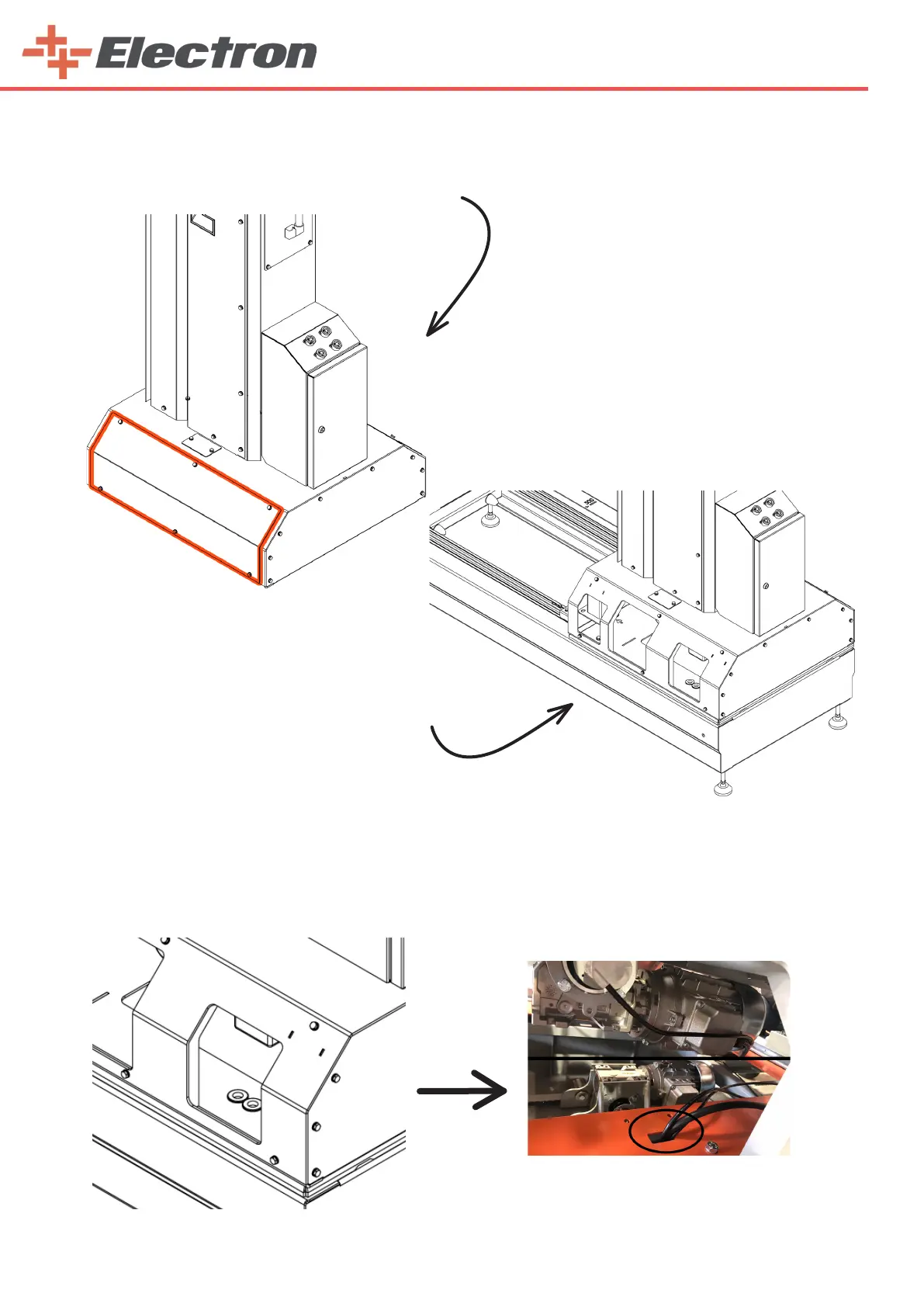

• Open bottom side covers of the reciprocator.

4.1.3. Connecting the E-ROBOT+3 X Horizontal Motion Unit to the Z Reciprocator

1. Ensure that the cables are routed at the specied points to avoid crushing the cables. (Motor, encoder and

sensor cables)

• Position the reciprocator on the

base of the horizontal unit.
