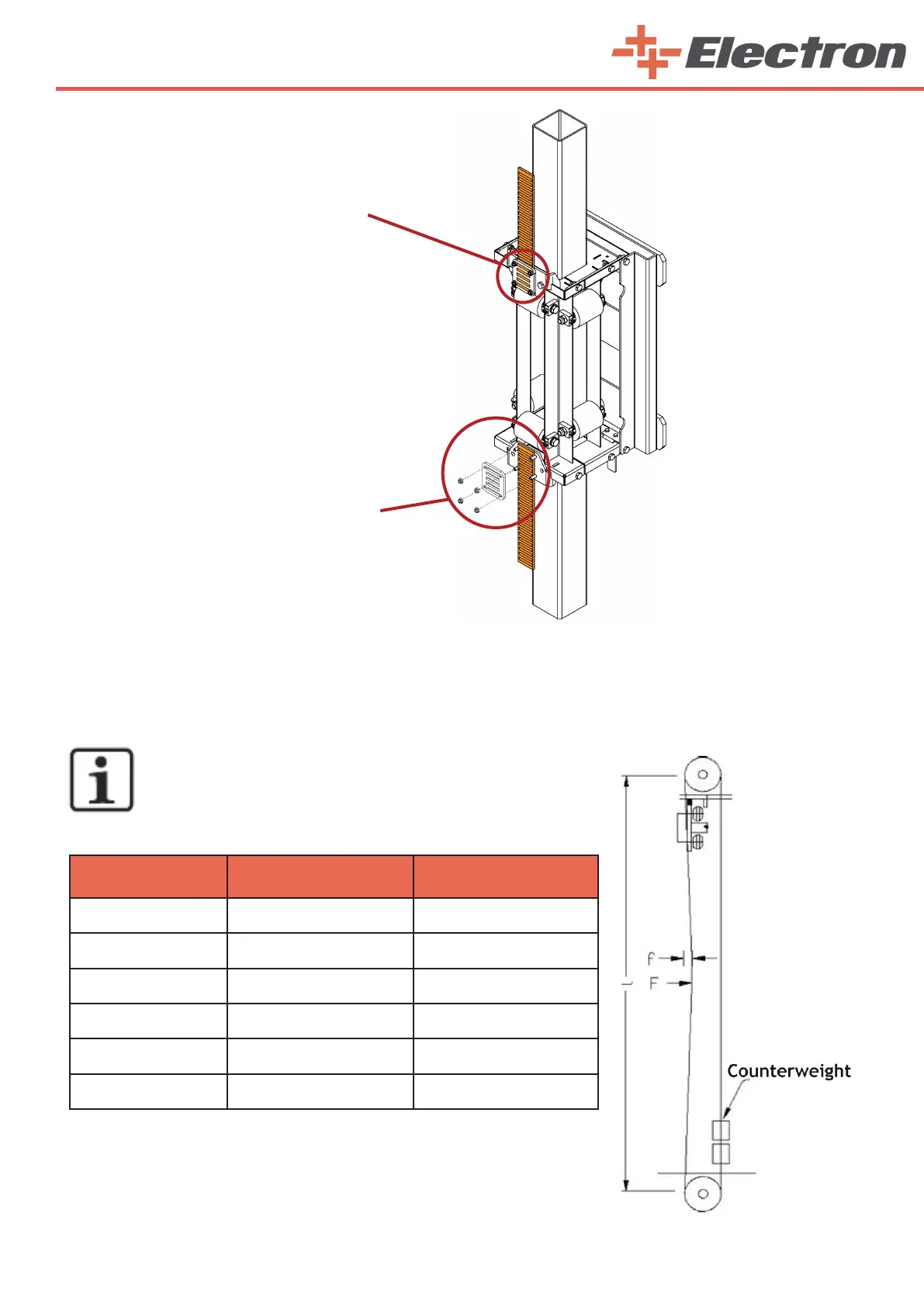

Electron E-ROBOT+3 Series - Belt Tension Setting

31
Belt Upper Locking Plate 1
Belt Lower Locking Plate 2
Belt Lower Locking Plate 2
9.4.1.2 Belt Tension Setting
After the belt is installed, tighten the tension screws on the reciprocator to adjust its tension. You can
adjust the belt tension according to the table below.
Stroke Lenght [mm]
Distance Between
Gears (l) [mm]
Tension Distance (f)
[mm]
1200 2196 28,0
1500 2496 31,2
1800 2796 34,9
2100 3096 38,7
2400 3396 42,5
2700 3696 46,2
NOTE:
It is assumed that a force of F = 50 N is applied.
