Elgo LIMAX33 CP-00 SERIES User Manual

Constraints for Use (Safety requirements for integration)
- 21 -

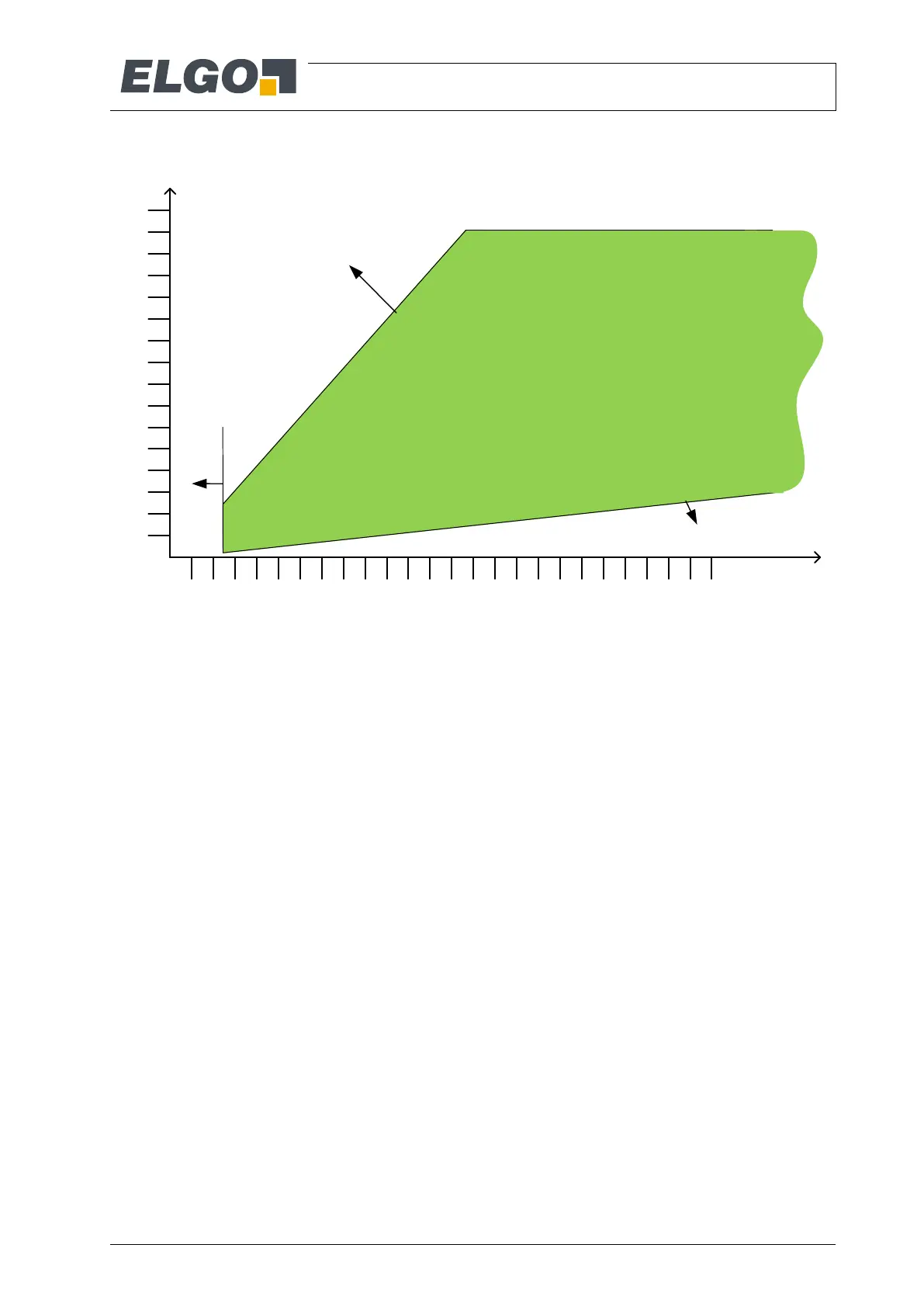

Figure 5: Values for L and R of trip coil
24. SG_pow – SG_GND connection must be supplied with a 24V SELV/PELV power supply. It must be guar-
anteed that 30 V cannot be exceeded.
25. UCM is only supervised by the LIMAX33 CP-00, if the door circuit(s) is/are bridged by SR1 and/or SR2.
500
1000
1500
L[mH]
R[W]
Too high
current
L
/
R
=
10
ms
R=24 W
L=1500 mH
L/R = 1ms
Increasing time for
braking eleiment to trip
10050
150 200 250
permitted /
recommended values of
L and R of trip coil
connected to eSGC
time for braking element to trip is too
short (possibly trips during test of eSGC)
