Elgo LIMAX33 CP-00 SERIES User Manual

Safety Functions
- 69 -
13.2.8 Relations limit switches/Offsets/ETSL and reference positions (summary)

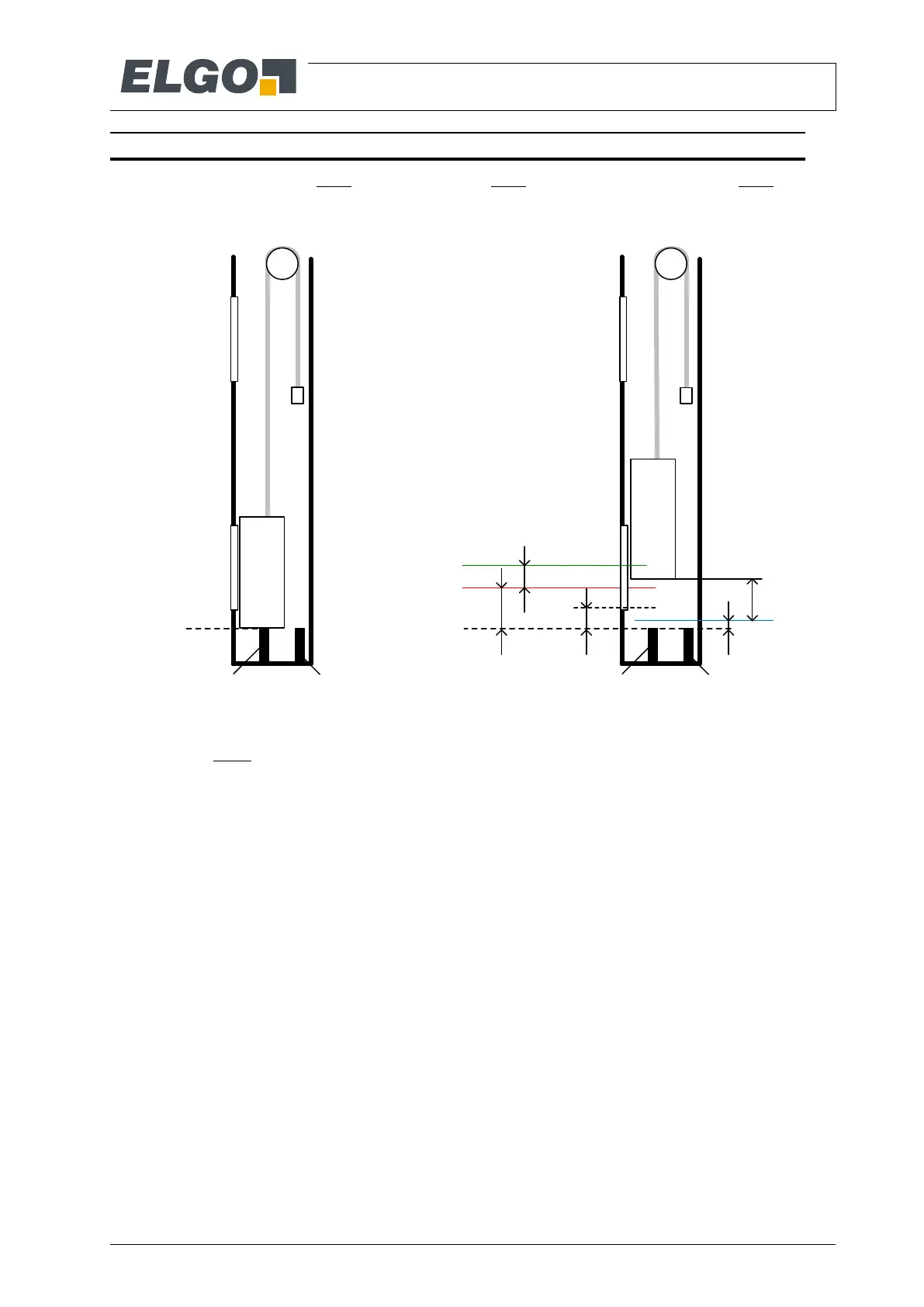

Figure 23 (below) illustrates the lower final limit switch, the lower pre-triggered stopping limit, the lower inspec-
tion limit and the distance s for ETSL-calculation when moving down related to the lower (limit switch-) reference
position.
Figure 23: Relations to the lower reference position
Relations to the upper reference positions see Figure 24 on next page.
Lower
reference
position
car buffer
counterweight buffer
car
counter
weight
Offset
ETLS_DOWN
Distance „s“ for
ETSL calculation
Lower
limit switch
Offset lower
limit switch
Offset lower
inspec tion
limit switch
Lower i nspection
limit switch
Lower pre-triggered
stopping limit position
The lower
reference position
will normally be
learned when the
car is placed on
the buffer
car buffer
counterweight buffer
car
counter
weight
